PowerMouse+ FCC
ALL-IN-ONE FLARM with integrated FLARM, ADS-B, Wi-Fi, and Bluetooth

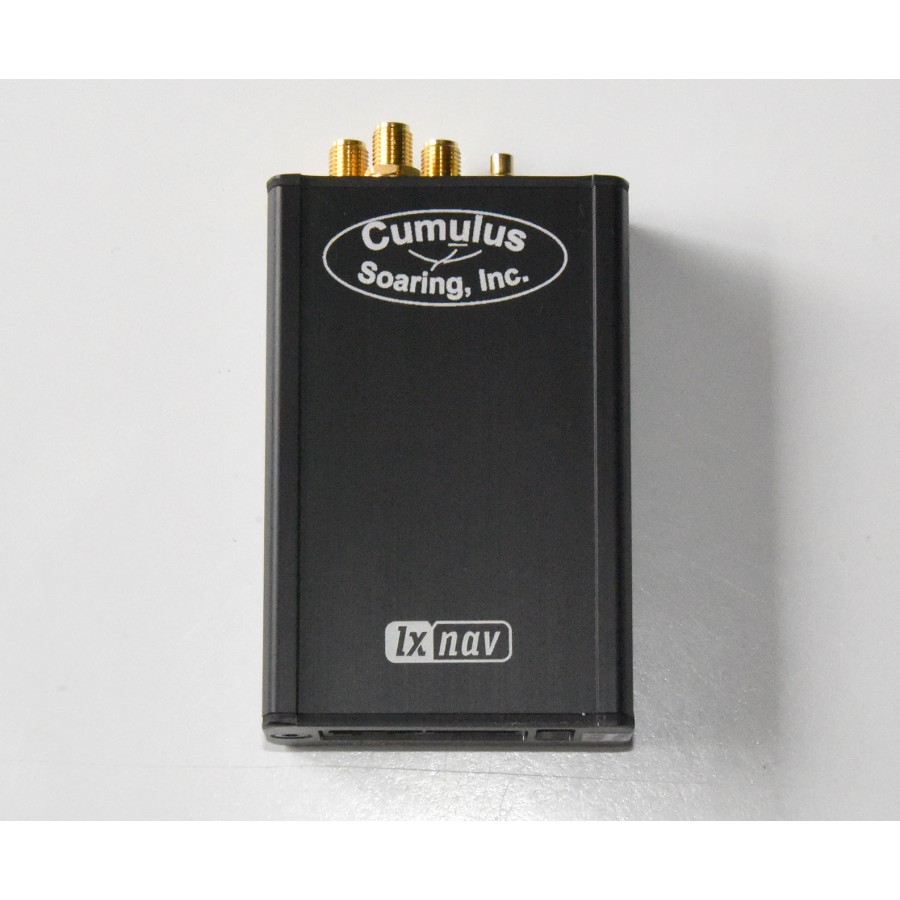

PowerMouse+ is a stand-alone box hidden behind/below the cockpit dashboard. It has an integrated Wi-Fi, USB port, Bluetooth module which works with Android and iOS and a GPS module. It come with IGC flight recorder and an ENL sensor, second FLARM antenna – RFB and ADS-B (mode S) module. The PowerMouse+ is based on PowerFLARM technology.

U.S. Version of the PowerMouse+
The PowerMouse+ has received U.S. F.C.C. Approval. Prices for the U.S. versions are higher than the European version of the PowerMouse+. The U.S. F.C.C. approved versions have reverse-polarity SMA FLARM ports (with a pin in the PowerMouse connector and mating hole in the FLARM antenna cable connector).

Differences Between the PowerMouse+ and the PowerFLARM Core and PowerFLARM Fusion

  • The PowerMouse is much smaller than the PowerFLARM Core or PowerFLARM Fusion.
  • The PowerMouse has the latest PowerFLARM hardware.  The Core has older hardware.
  • The PowerMouse+'s IGC Enable includes a logger altimeter calibration data sheet. The PowerFLARM Core and Fusion do not, but I offer it as a $75 option.

Canadian Customers
The PowerMouse+ is not currently approved for use in Canada. The PowerFLARM Fusion is recommended for use in Canada.

PowerFLARM Comparison

IGC. ENL, Second FLARM Antenna - included
PowerMouse+ comes with IGC flight recorder and with an ENL sensor (engine detection). A second FLARM antenna is also included.

ADS-B
Integrated ADS-B 1090 receiver

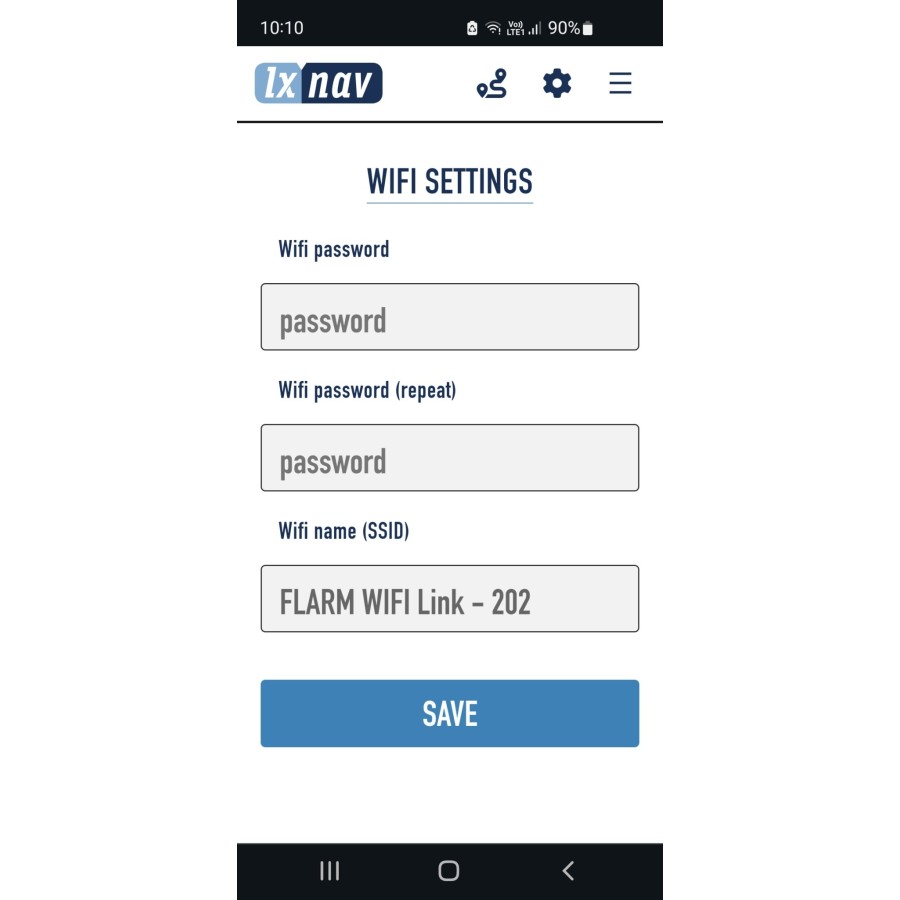

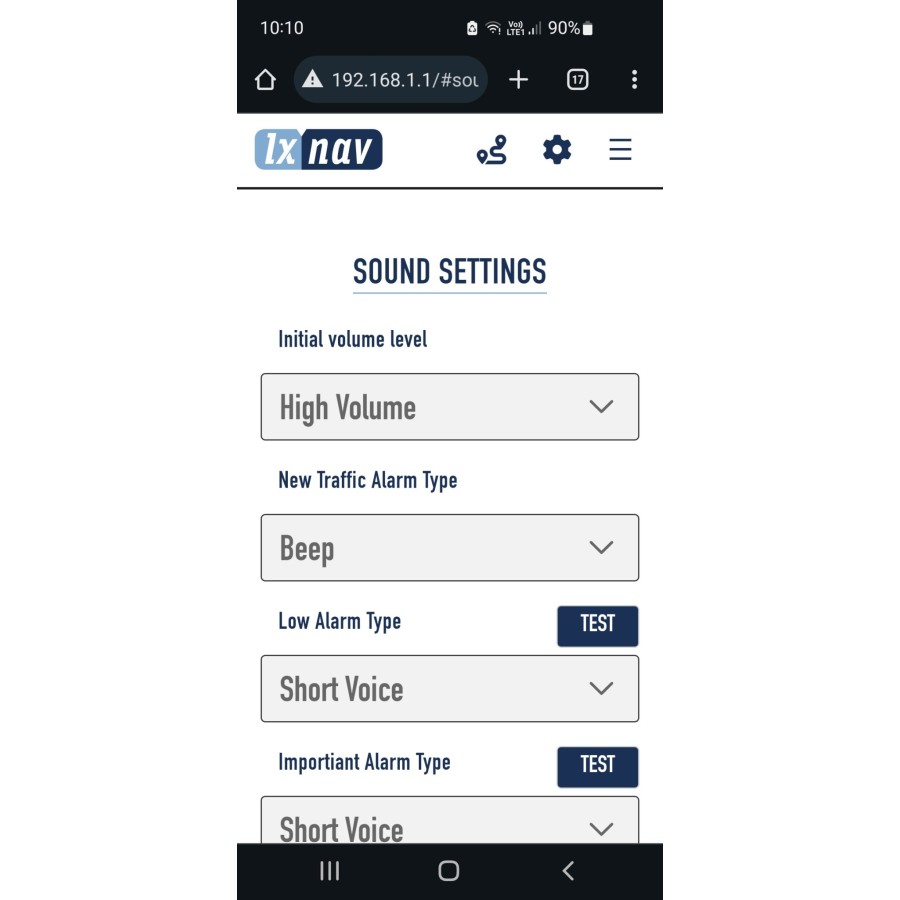

Wi-Fi integrated.

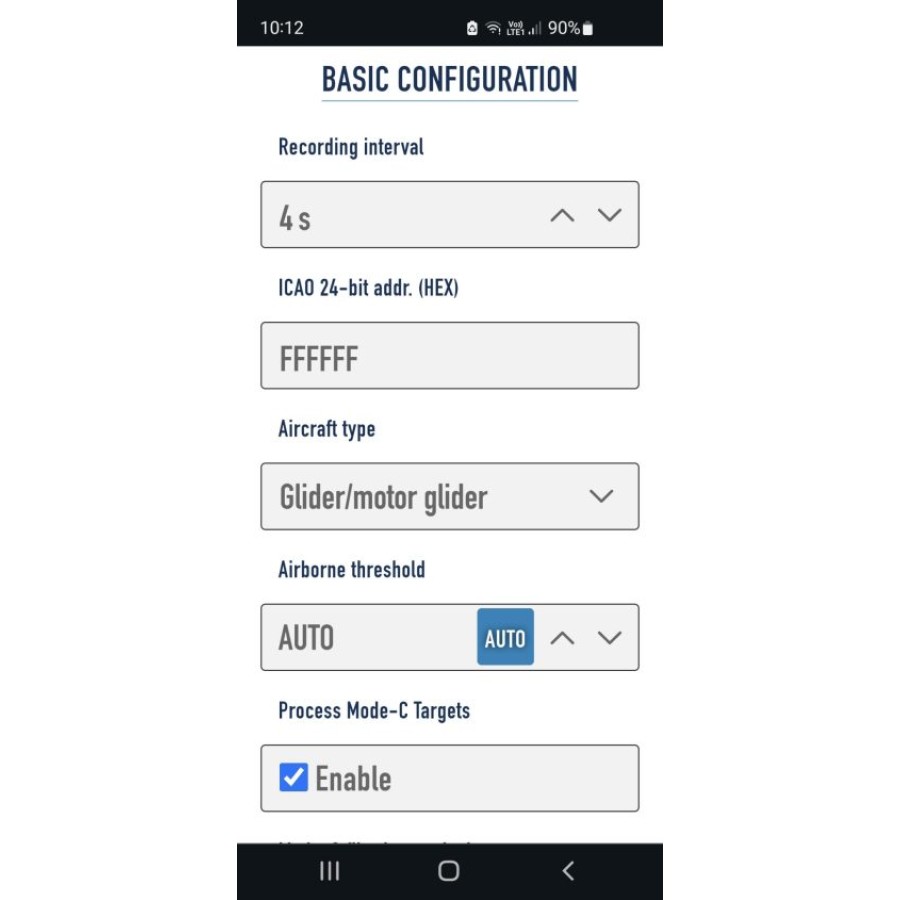

Easy to configure.

USB Module. GPS Module, Bluetooth.
USB module, 56 channels GPS module built-in and a Bluetooth compatible to iOS and Android.

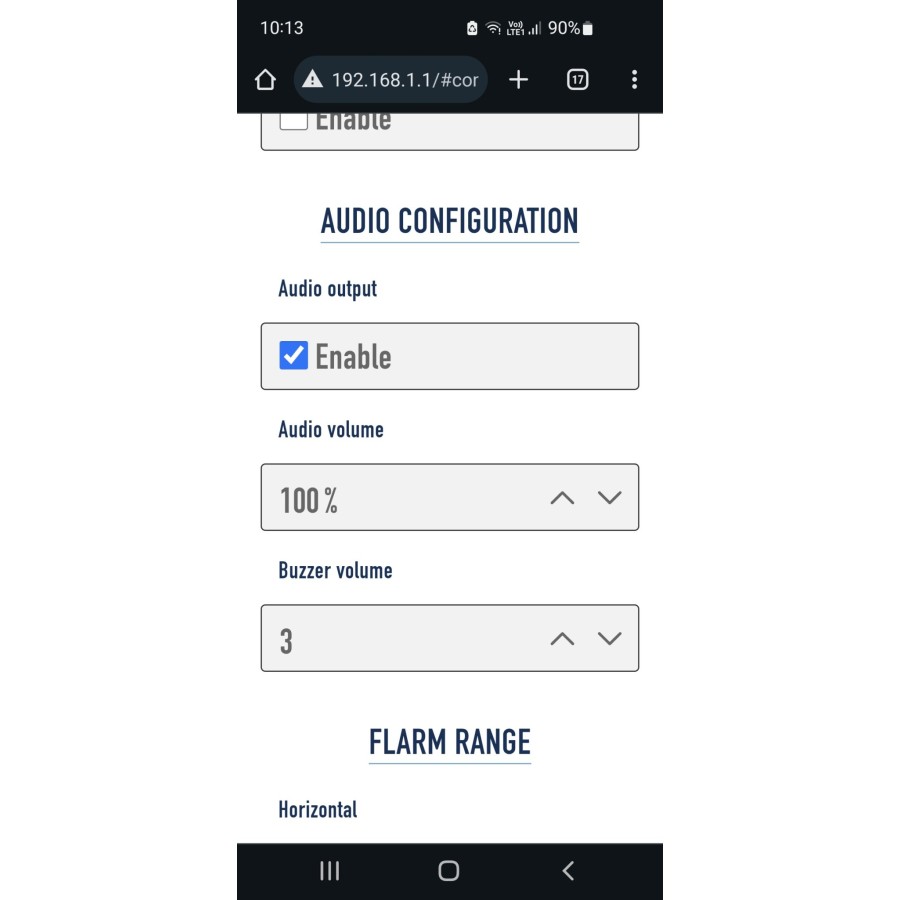

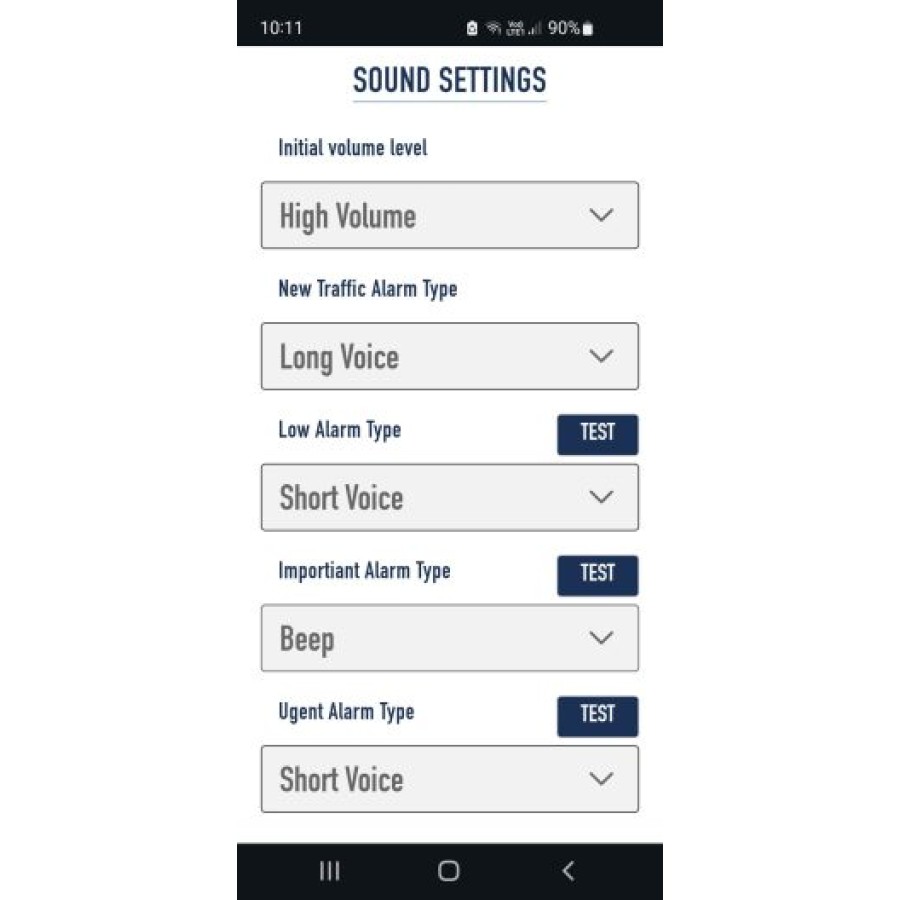

Audio Output. External push button.
Audio output for external connectivity and push button (Pilot event, volume settings…)

Built-in Splitter (2 communication ports)
FLARM splitter – easy to connect to second display or anv device. These are 2 independently configured ports.

Features
  • USB connector for an easy data exchange behind the cockpit panel
  • IGC flight recorder Up to Diamonds, includes calibration data sheet
  • ENL – engine noise level sensor
  • RFB (Remote FLARM B) standard with 2nd FLARM antenna circuit board and 2nd dipole antenna
  • 2 independent built-in FLARM RJ45 ports
  • Compatible with all standard FLARM displays (3V and 12V)
  • PowerFlarm platform
  • Bluetooth module BT3.0 and BT4.0LE (for Android and iOS)
Hardware
  • 2 RJ45 FLARM connector
  • USB port
  • 3 FLARM antenna
  • Bluetooth BT3.0 and BT4.0 LE
  • Integrated Wi-Fi
  • GPS module
  • Internal pressure
  • ADS-B module

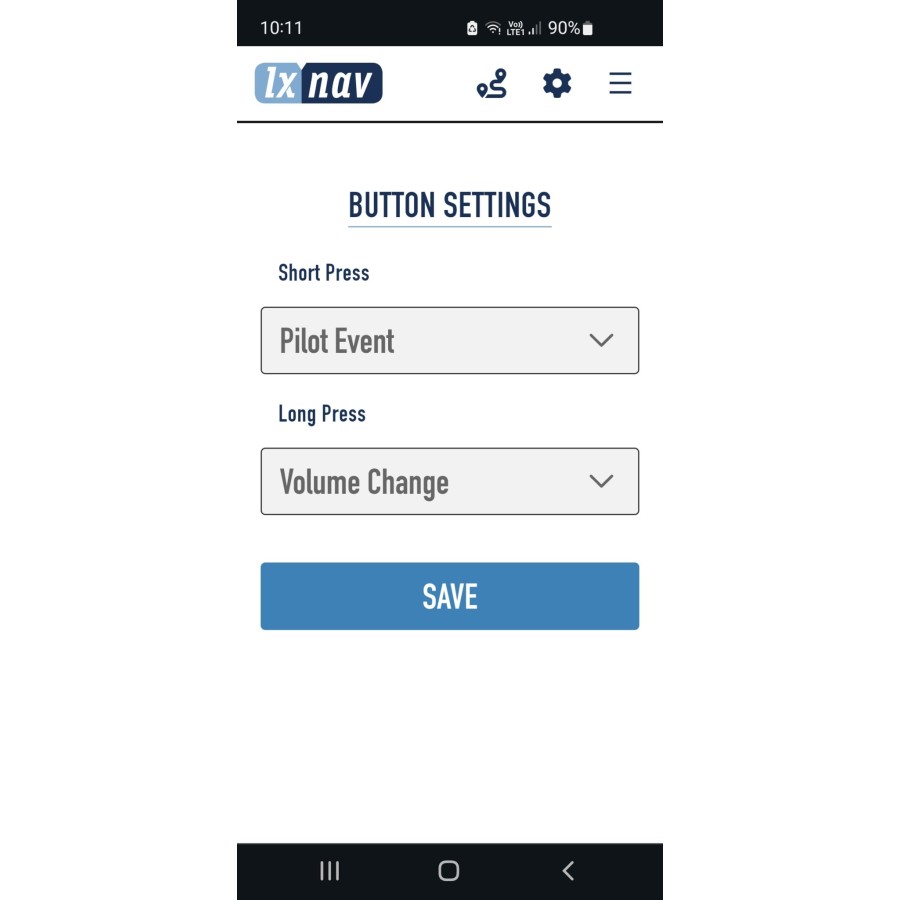

  • Configurable push button

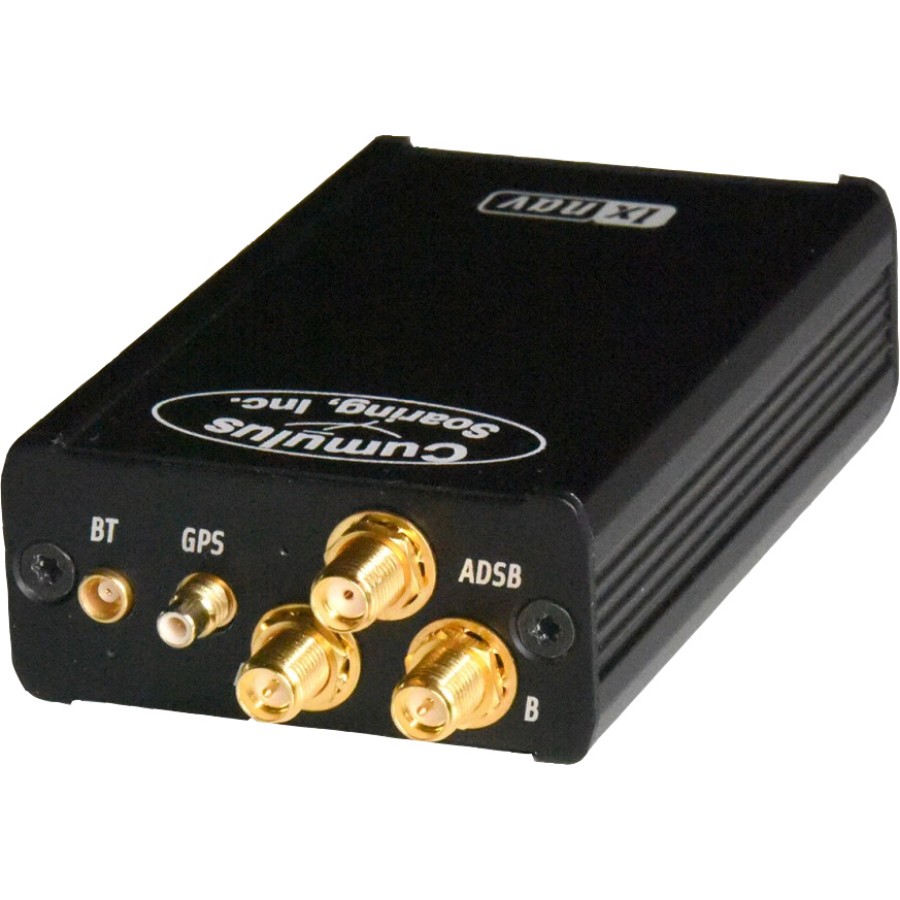

Input and Output

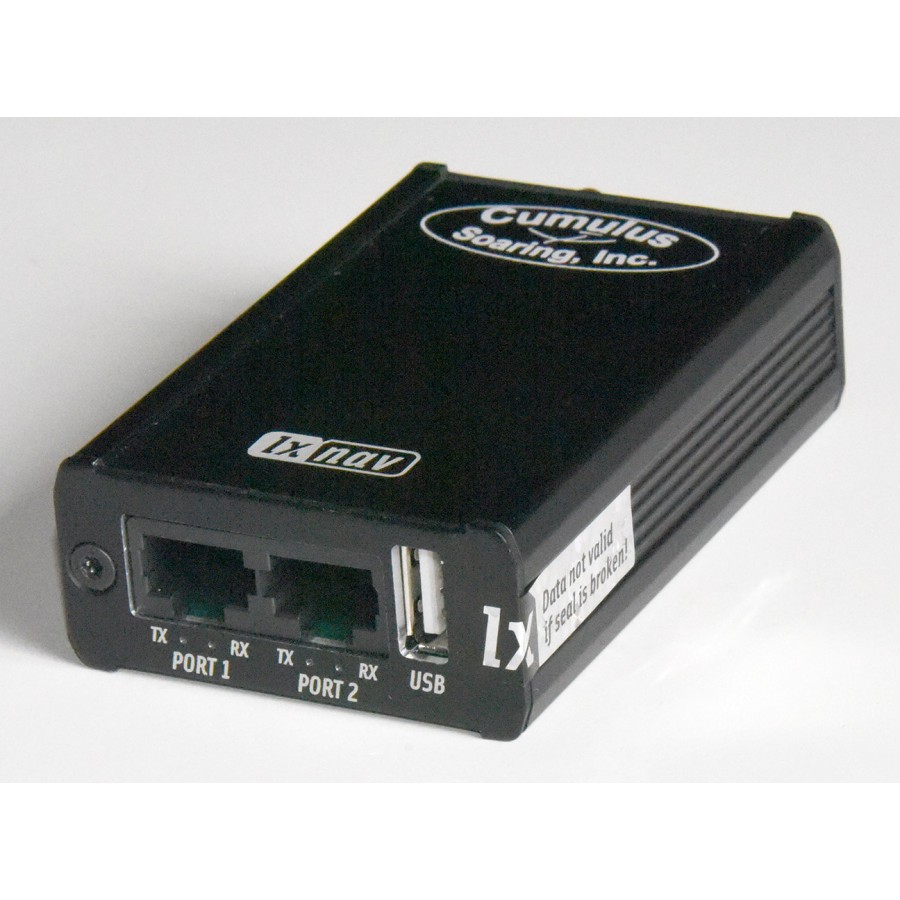

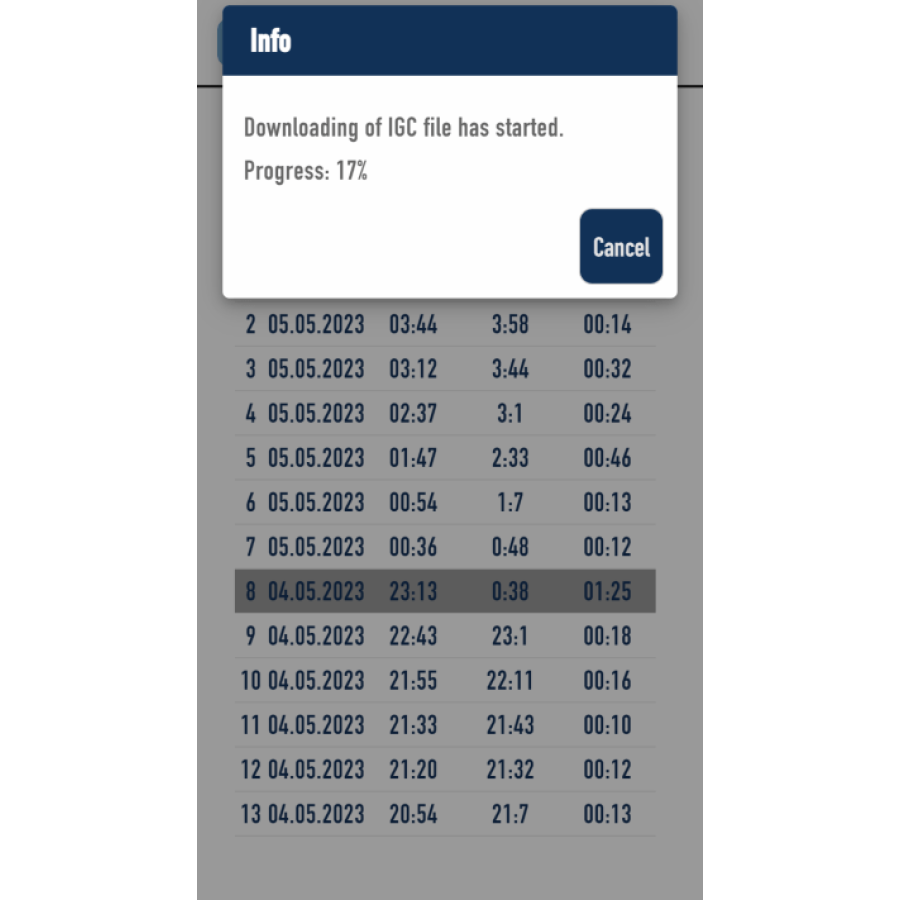

  • USB Port - for firmware updates and flight log downloads using a USB flash drive
  • 2 x RJ45 FLARM power/data ports (IGC Standard connections)

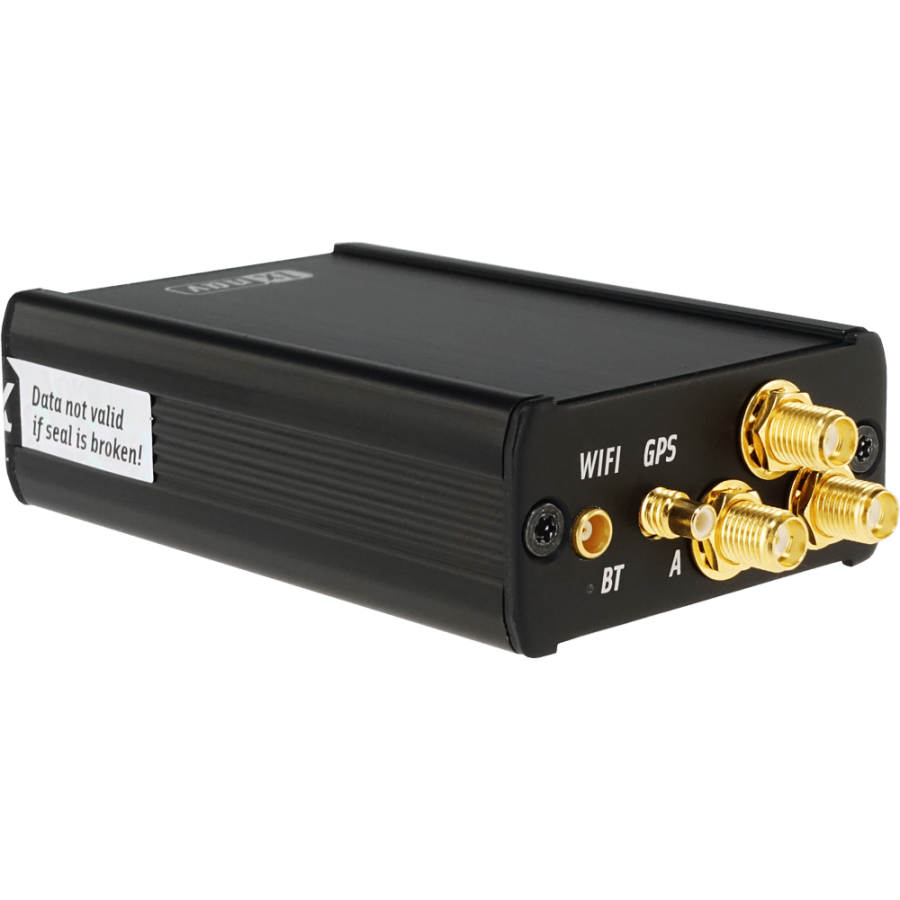

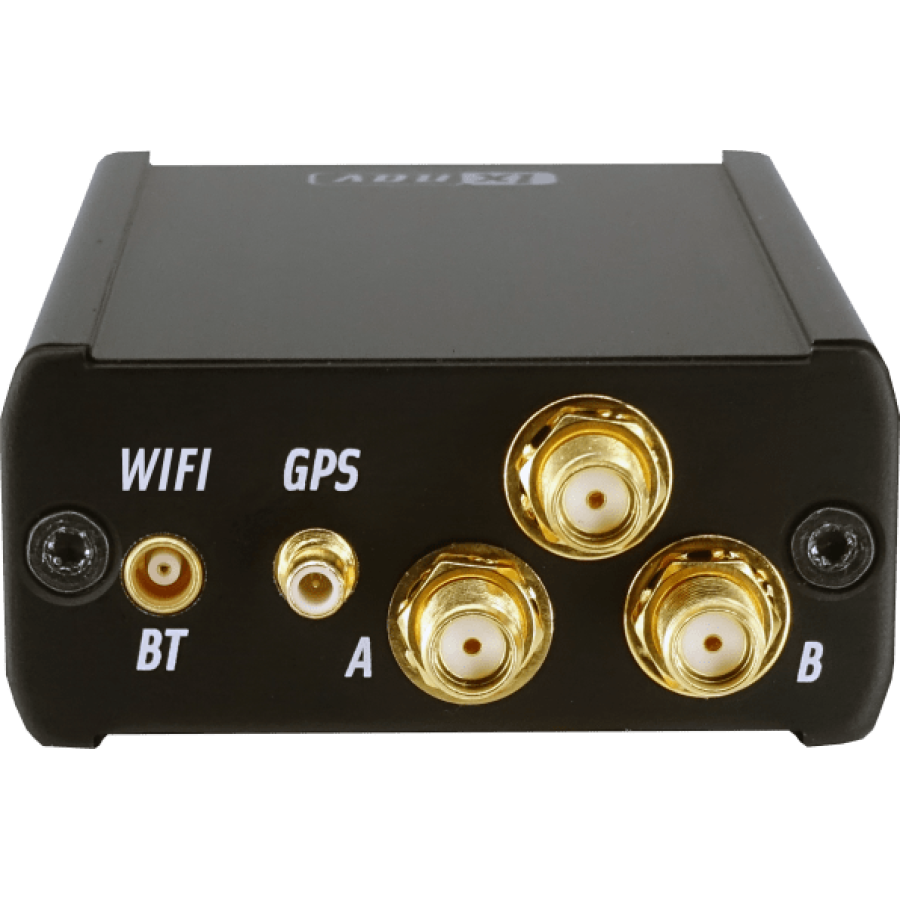

  • GPS connector (SMC)
  • 2 x FLARM antenna port (reverse-polarity SMA connector)
  • Bluetooth antenna connector
  • Internal Wi-Fi antenna (no external antenna)

Power

  • Power input 8 to 36 VDC
  • Consumption 0.8 W

Size and Weight

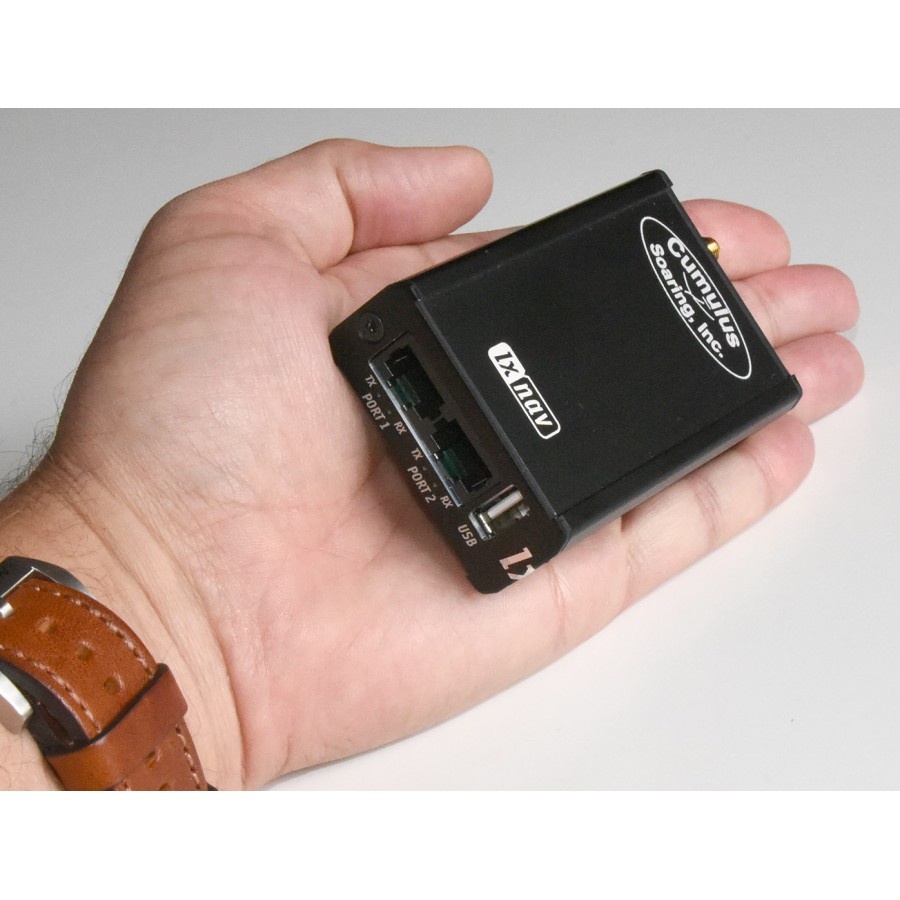

  • Outline dimension (not including connectors): 90 x 55 x 25 mm (3.54 x 2.17 x 1.0 inches)
  • FLARM Antenna Length: 16 cm (6.3 in), cable length: 140 cm (55 inches), Tuned to U.S. FLARM frequencies (902.2 - 927.80 MHz)
  • GPS Antenna cable length: 116 inches (295 cm)
  • Weight of PowerMouse+ unit only: 122 g (4.3 ounces)
  • Weight of PowerMouse+ with FLARM, GPS and Bluetooth antennas and 12V power cable: 241 g (8.5 ounces)

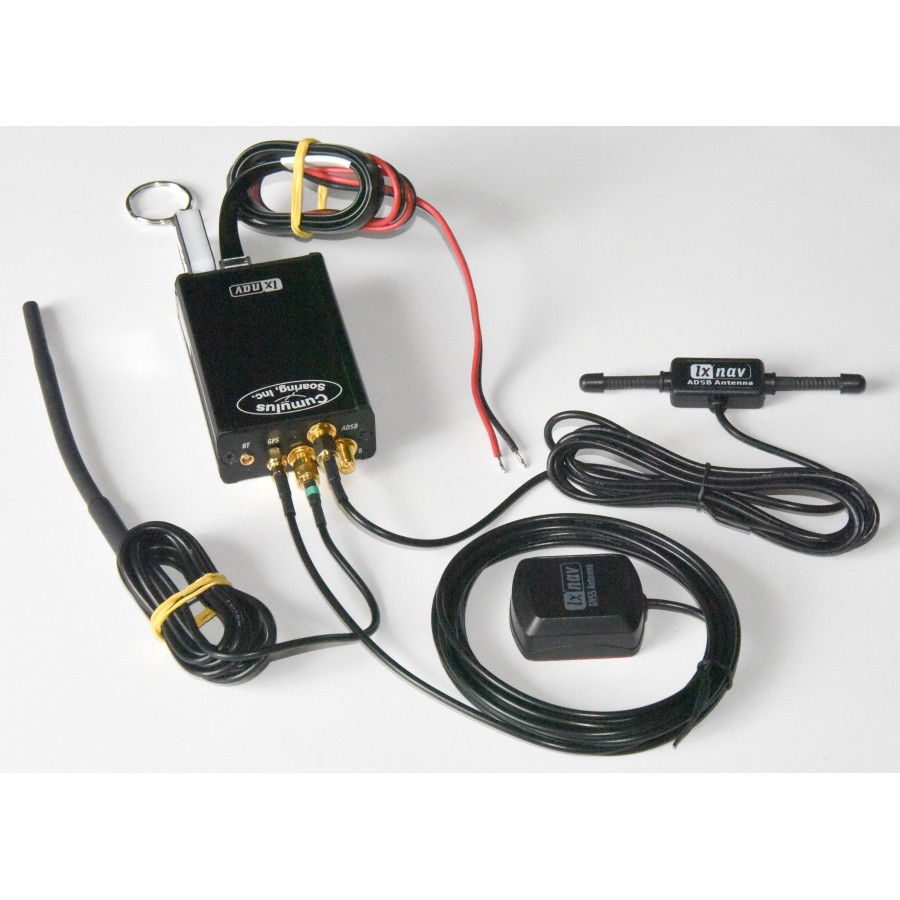

Included

  • PowerMouse+ unit
  • GPS Antenna with SMC connector
  • 2 x FLARM Dipole Antenna (standard version)
  • Bluetooth Antenna
  • 12V power cable with RJ45 8-pin connector
  • LXNAV USB Flash Drive

Options:

Optional Remote FLARM Displays:

Manual
Details are available in the PowerMouse manual which is available here.

PowerMouse+ GA.
Optimized for General Aviation (tow planes), all options included except IGC and ENL option.
