Dittel


Overview
Walter Dittel is a highly respected manufacturer of small, high quality, low current drain aviation radios and accessories.

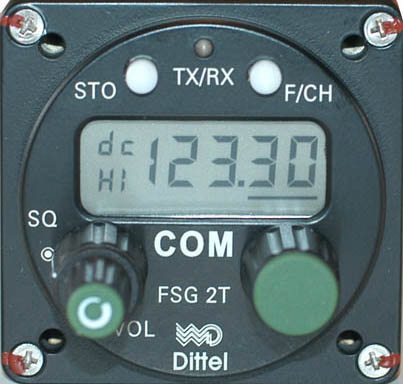

The new FSG2T has a standby current draw of only 50 mA!  Perfect for use in sailplanes.  20 channel memory.

The newly developed FSG2T VHF airband transceiver with 25 kHz channel spacing and 20 memory channels out of 760 channels meets the most modern requirements in the transceiver’s category.

Operating from 9 to 16 Volts with very low power consumption means real long battery endurance. The separate and individually adjustable microphone inputs together with the built-in voice operated intercom provide the best speech characteristic you can expect.

The FSG2T is simple to operate and certified for air, ground and modern electronically equipped vehicles.

All Dittel products come with a 2 year factory warranty.


Manuals for Current and Past Products
FSG2T Install and Operation Manual - Current Product
FSG2T-Reset-Instructions
Manual FSG 2T PC Portable System
Manual FSG 2T PS Portable System

FSG40S User Manual
FSG50 Wiring Diagrams
FSG60M User Manual
FSG 70-FSG71M Operation and Installation Manual


Example Systems

Complete System with Dittel FSG 2T for Single-seat Glider
The Dittel FSG 2T is a great sailplane radio.  It offers extreme reliability and high quality and low current draw.

Complete System with Dittel FSG 2T for Single-seat Glider
The Dittel FSG 2T is a great sailplane radio.  It offers extreme reliability and high quality and low current draw.

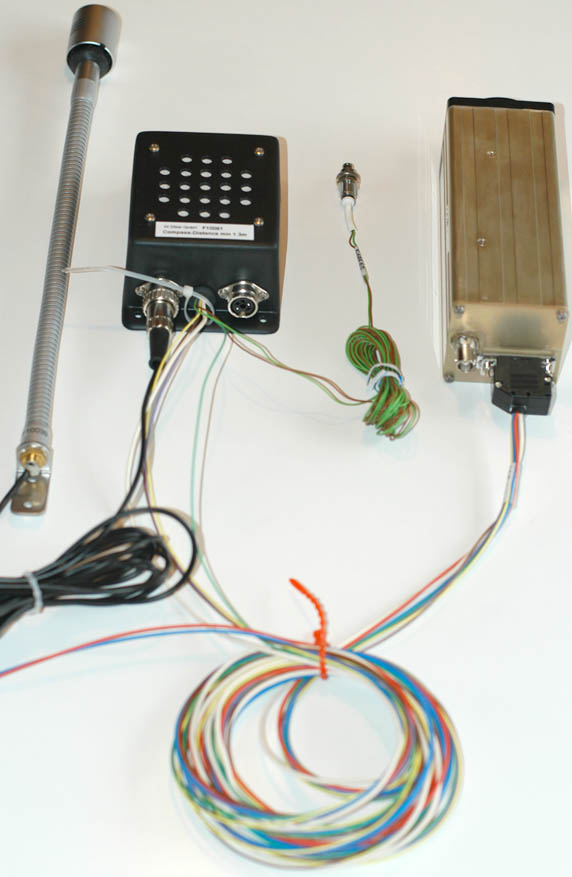

Example System with Dittel FSG2T Panel Mounted Radio - for Single Seat Glider





Complete System
FSG 2T radio
Wiring harness
Speaker box and
wire junction box

Gooseneck
microphone
Push-to-talk

    Total: $2830 ($2760 with Peiker TM170-23in gooseneck microphone and DIN-5m-240)

    Complete System with Dittel FSG 2T for Two-seat Glider
    The Dittel FSG 2T is a great sailplane radio.  It offers extreme reliability and high quality and low current draw.

    Example System with Dittel FSG2T Panel Mounted Radio - for Two Seat Glider






    Complete System
    FSG 2T radio
    Wiring harness
    Speaker box and
    wire junction box

    Gooseneck
    microphone
    Push-to-talk

    • F10350 - FSG 2T radio, $2195

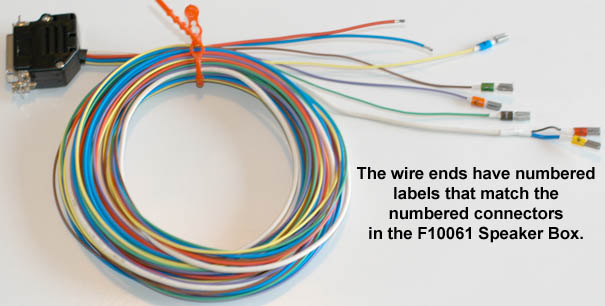

    • F10028 - Wiring harness, $130
    • F10061 - Speaker box and wire junction box, $165
    • 2 x F10039- Gooseneck microphone, 2 x $295

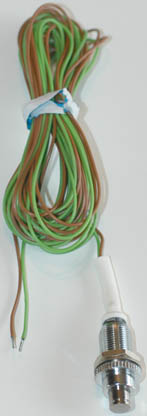

    • 2 x F10050 - Push-to-talk button with wires, 2 x $45

    Total: $3170


    Dittel Radio Repair Contacts

    Peninsula Avionics, Inc.

    14229 SW 127th Street
    Miami, FL 33186
    phone: 305-238-6550
    Fax: 305-238-7819
    JIglesias@pensinsulaavionics.com
    Contact: Mr. Nick Popovski

    Or


    Anton Lang

    Flugfunk-Service
    Pappelweg 26
    D-86972 Schwabniederhofen
    Germany
    Tel:      0049 – 8861 – 1739
    Fax:     0049 – 8861 - 1590
    e-mail: info@flugfunk-lang.de
    Web Site: http://www.flugfunk-lang.de/englisch.htm

    Or


    Funkwerk Avionics GmbH

    Heinz-Strachowitz-Str. 4
    86807 Buchloe
    Germany
    +49-8241-800 66-12
    info@funkeavionics.de
    corinna.bruecker@funkeavionics.de



    Dittel F10039 Dynamic Gooseneck Microphone

    Dittel F10039 Dynamic Gooseneck Microphone

    Dynamic F10039 Gooseneck MicrophoneLength of gooseneck from base to end of microphone: 370 mm (14.5"..

    $295.00

    Dittel FSG 2T - Avionics Transceiver

    Dittel FSG 2T - Avionics Transceiver

    FSG 2T - Avionics Transceiver5 Watt, 760 Channel, 25 kHz channel spacing, 20 channel memory, mounts ..

    $2,195.00

    Dittel-Battery Box

    Dittel-Battery Box

    Battery BoxThis is an extremely rugged and handy battery box.  This box offers stainless steel ..

    $310.00

    Dittel-DB-15f-Posts

    Dittel-DB-15f-Posts

    DB-15f Connector with PostsThis is a female connector for use with the FSG 2T radio.  The DB-15..

    $24.00

    Dittel-E59767

    Dittel-E59767

    Antenna connector, BNC plugSolder type, for RG-58 cableThis is an extremely nice BNC connector. Sold..

    $14.95

    Dittel-F10041

    Dittel-F10041

    Handheld Microphone for Portable Case 70 PCFor use with Dittel 10013 Portable Case 70 PCLead Time: 2..

    $395.00

    Dittel-F10345

    Dittel-F10345

    Whip AntennaFor use with Dittel 10013 Portable Case 70 PS and 10360 Portable Case 70 PCLead time: 2 ..

    $130.00

    Dittel-F10385

    Dittel-F10385

    DL-50 Battery ChargerFor use with Dittel 10013 Portable Case 70 PSAutomatic115 / 230 VLead time: 4 w..

    $230.00

    Dittel-F10386

    Dittel-F10386

    Portable Case 70 PSPortable case for use with FSG2T or FSG90 radio. Required but not ..

    $825.00

    Dittel-F10388

    Dittel-F10388

    Portable Case 70 PCPortable case for use with FSG2T radio with built-in charger.Required but no..

    $1,260.00

    Dittel-F10393

    Dittel-F10393

    12V car power supply cableFor use with Dittel 10386 Portable Case 70 PS and 10388 Portable Case 70 P..

    $39.00

    Dittel-F10401

    Dittel-F10401

    Handheld Dynamic Microphone for Portable Case 70 PSFor use with Dittel 10013 Portable Case 70 PS, in..

    $85.00

    Dittel-PTT Switch

    Dittel-PTT Switch

    PTT (Push-to-talk) switch for control stickMetal switch with very rugged design and positive click t..

    $45.00

    Dittel-Radio Wiring Harness

    Dittel-Radio Wiring Harness

    Wiring Harness Assembly3.2m (10.5 ft), with DB-15 connector and numbered flat connectors.  For ..

    $130.00

    Dittel-Speaker Junction Box

    Dittel-Speaker Junction Box

    Aircraft Speaker Box and Wire Junction Box4 Ohm, 30 Watt, small, robust case, for 2 mikes or headset..

    $165.00

    Dittel-W00114

    Dittel-W00114

    Rod antenna, swivel typeFor mounting on a car or recreational vehicle.  Rod Length: 19.5" (0.49..

    $120.00

    Showing 1 to 16 of 16 (1 Pages)
