Sailplane Power Systems (SPS)

Simplify your sailplane's power system

These components make it easy to connect your sailplane's instruments and batteries together quickly and easily with no soldering required.  Anderson Powerpole connectors, power distribution blocks and Goddard cables, switches, fuses, etc. - make installation fast and easy while long-term reliability and troubleshooting are enhanced.

All cables are extremely well made and tested by Larry Goddard using aircraft grade Tefzel wire and Anderson Powerpole connectors.

Features:

  • Simplify your sailplane's power system
  • Plug-and-play power components
  • Enhanced reliability
  • Enhanced long-term troubleshooting
  • No soldering required
  • Simple components -> extreme flexibility
  • Easy to modify in the future (future proof)
  • Simple and reliable Anderson Powerpole quick-disconnect connectors

Components:

  • Batteries and chargers
  • Battery wiring harnesses
  • 12V power distribution blocks
  • 12V power cables with Anderson Powerpole connectors
  • Panel-mountable battery select switches
  • Panel-mountable instrument power switches
  • Panel-mountable fuses
  • Panel-mountable voltage meter
  • Panel-mountable 12V Anderson Powerpole ports - for 12V charge ports, etc.
  • AA Battery Back-up Power Pack
  • 5V panel-mountable USB A power port - for powering phone, etc.

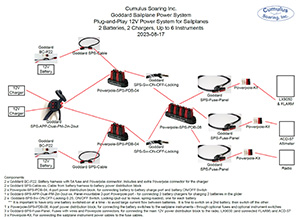

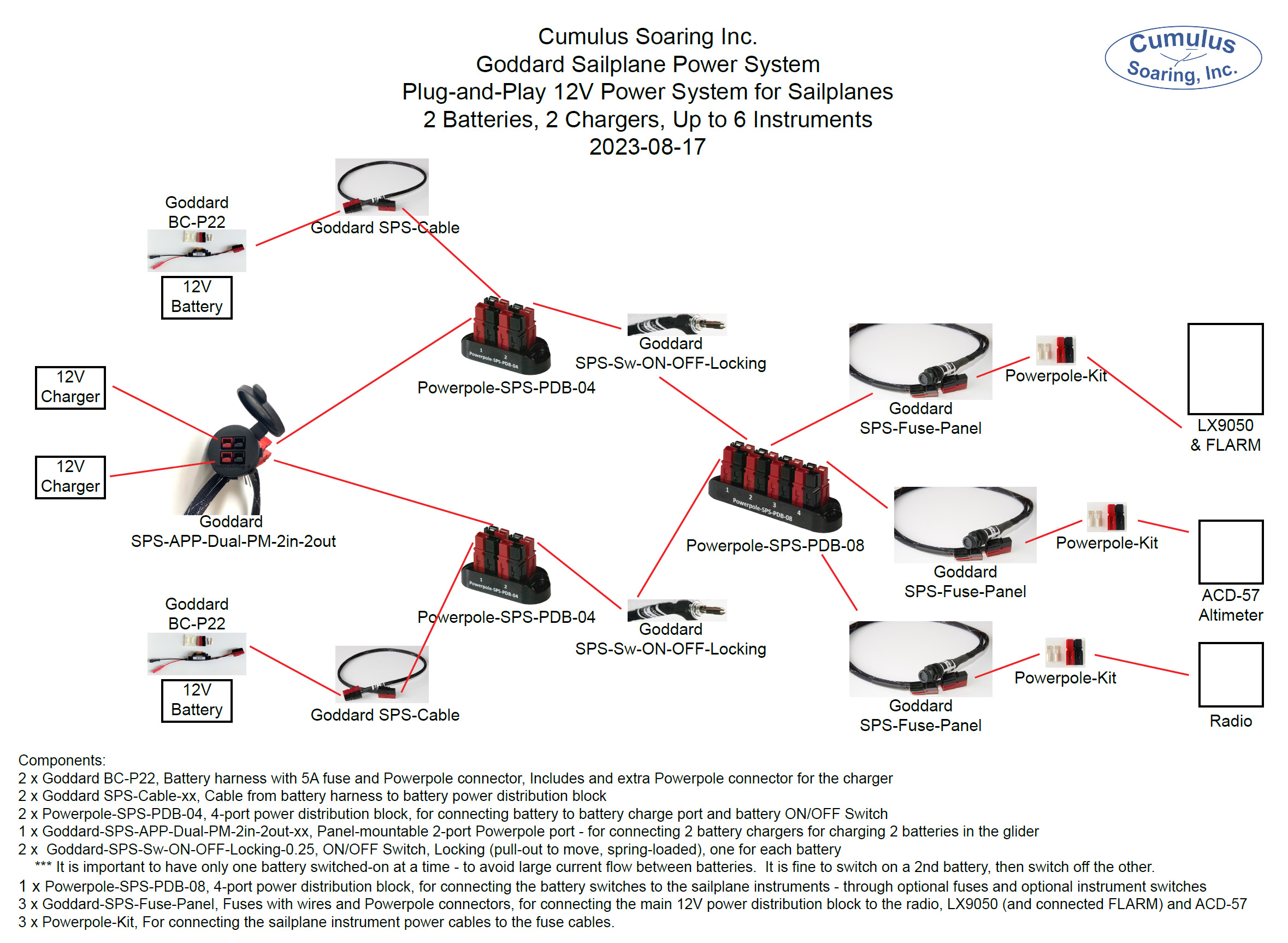

Example Systems

  • Simple 12V Sailplane Power System:
    Battery -> Main Power Switch -> Distribution Block ->  Instrument

  • More Complex 12V Sailplane Power System:

    2 x panel-mounted Powerpole charge port in the instrument panel (one for each battery -> 2 Batteries -> Battery Select Switch -> Volt Meter -> Main Power Switch -> Distribution Block -> 5 x Instrument Switch -> 5 x Instrument Fuse -> 5 x Instrument


Bioenno-BLF-1209

Bioenno-BLF-1209

Bioenno Power BLF-1209 Lithium Iron Phosphate (LiFePO4) Battery, 12V, 9 AHrThis is the "standard gli..

$100.00

Bioenno-BLF-1215

Bioenno-BLF-1215

Bioenno Power BLF-1215 Lithium Iron Phosphate (LiFePO4) Battery, 12V, 15 AHrThis battery is larger t..

$150.00

Bioenno-BLF-1220

Bioenno-BLF-1220

Bioenno Power BLF-1220 Lithium Iron Phosphate (LiFePO4) Battery, 12V, 20 AHrThis battery is much lar..

$205.00

Bioenno-BPC-1502C-APP

Bioenno-BPC-1502C-APP

Bioenno Charger for LiFePO4 Batteries, 2A, with Alligator Clips and Anderson Powerpole ConnectorsIt ..

$40.00

Bioenno-BPC-1504C-APP

Bioenno-BPC-1504C-APP

Bioenno Charger for LiFePO4 Batteries, 4A, with Alligator Clips and Anderson Powerpole ConnectorsIt ..

$45.00

Goddard-BC-NB2

Goddard-BC-NB2

Battery Harness with Inline Fuse and Anderson Powerpole Connectors - with lugs for NB2 nut and bolt ..

$30.00

Goddard-BC-P11

Goddard-BC-P11

Battery Harness with Inline Fuse and Anderson Powerpole Connectors - with 0.187" Female Spade "FASTO..

$30.00

Goddard-BC-P22

Goddard-BC-P22

Battery Harness with Inline Fuse and Anderson Powerpole Connectors - with 0.250" Female Spade "FASTO..

$30.00

Goddard-Cable-PF-DB9m-Pwr-APP-0.5

Goddard-Cable-PF-DB9m-Pwr-APP-0.5

Goddard Cable, 0.5 m, For connecting 12V power to a PowerFLARM's DB-9 connector, with Anderson Power..

$50.00

Goddard-Cable-PF-RJ45-Pwr-APP-0.5

Goddard-Cable-PF-RJ45-Pwr-APP-0.5

Cable-PF-RJ45-Pwr-APP-0.5, Cable, 0.5 m, For connecting 12V power to a PowerFLARM's RJ45 connector, ..

$50.00

Goddard-Cable-S3-Backup-Sw-1

Goddard-Cable-S3-Backup-Sw-1

Backup Battery Harness for LXNAV S3 Variometer, LXNAV ADI (Airdata Indicator), or LXNAV G-MeterCable..

$95.00

Goddard-SPS-APP-12V-Pwr-xx

Goddard-SPS-APP-12V-Pwr-xx

Sailplane Power System Power CableCable with bare leads for connection to 12V battery, and Anderson ..

$30.00

Goddard-SPS-APP-Dual-PM-1in-2out-0.5

Goddard-SPS-APP-Dual-PM-1in-2out-0.5

Sailplane Power System, Dual Powerpole port, panel-mountable, with two 0.5 m (19.6 in) leads with Po..

$75.00

Goddard-SPS-APP-Dual-PM-2in-2out-0.5

Goddard-SPS-APP-Dual-PM-2in-2out-0.5

Sailplane Power System, Dual Powerpole port, panel-mountable, with two 0.5 m (19.6 in) leads with Po..

$75.00

Goddard-SPS-Battery-Conn-9V-APP-xx

Goddard-SPS-Battery-Conn-9V-APP-xx

Sailplane Power System Power Cable9V battery connector with cable to Anderson Powerpole connectorCan..

$30.00

Goddard-SPS-Battery-Holder-8xAA-APP-0.5

Goddard-SPS-Battery-Holder-8xAA-APP-0.5

Goddard battery holder for 8 x AA batteries (batteries not included), with 0.5m cable with Anderson ..

$30.00

Goddard-SPS-Cable-xx

Goddard-SPS-Cable-xx

Sailplane Power System Power CableConnector Type: Anderson Powerpole connectors at both endsWire Typ..

$30.00

Goddard-SPS-Fuse-Panel

Goddard-SPS-Fuse-Panel

Sailplane Power System, Panel-Mountable 5A Fuse0.25 m (9.8 in)leads and Powerpole connectors, 18 AWG..

$40.00

Goddard-SPS-Sw-B1-B2-Locking-xx

Goddard-SPS-Sw-B1-B2-Locking-xx

Sailplane Power System,Battery1/Battery2 Toggle Switch with spring-loaded locking mechanism (pull-ou..

$50.00

Goddard-SPS-SW-B1-B2-xx

Goddard-SPS-SW-B1-B2-xx

Sailplane Power System, Battery1/Battery2 Toggle Switch, 18 AWG Tefzel wire, with Powerpole connecto..

$40.00

Goddard-SPS-Sw-B1-OFF-B2-Locking-xx

Goddard-SPS-Sw-B1-OFF-B2-Locking-xx

Sailplane Power System, Battery1/OFF/Battery2 Toggle Switch with spring-loaded locking mechanism (pu..

$45.00

Goddard-SPS-Sw-B1-OFF-B2-xx

Goddard-SPS-Sw-B1-OFF-B2-xx

Sailplane Power System, Battery1/OFF/Battery2 Toggle Switch,18 AWG Tefzel wire, with Powerpole conne..

$40.00

Goddard-SPS-Sw-ON-OFF-Locking-xx

Goddard-SPS-Sw-ON-OFF-Locking-xx

Sailplane Power System ON/OFF Toggle Switch with spring-loaded locking mechanism (pull-out to switch..

$40.00

Goddard-SPS-Sw-ON-OFF-xx

Goddard-SPS-Sw-ON-OFF-xx

Sailplane Power System, ON/OFF Toggle Switch18 AWG Tefzel wire, with Powerpole connectors, 0.25 m (9..

$35.00

Goddard-SPS-Volt-Meter-PM-0.5

Goddard-SPS-Volt-Meter-PM-0.5

Sailplane Power System, Volt Meter, panel-mountable, with 0.5 m (19.6 in) lead and Powerpole connect..

$75.00

Naviter-USB-Power-Port

Naviter-USB-Power-Port

Naviter USB Power PortType A USB Charger socket that plays well with radios and other glider equipme..

$35.00

Powerpole-Contact

Powerpole-Contact

Anderson Powerpole Contact - SingleTwo of these metal contacts are included with the kit above. ..

$0.30

Powerpole-Kit

Powerpole-Kit

Anderson Powerpole Connector Kit, 2 Contact, 15 AmpKit includes all the parts for one red and black ..

$2.30

Powerpole-Retention-Clip

Powerpole-Retention-Clip

Retention Clip for Powerpole ConnectorsThese are not required but add additional security to any Pow..

$0.95

Powerpole-Sleeve

Powerpole-Sleeve

PVC Cover Flame Retardant Sleeve for Anderson Powerpole Connector HousingProtects the connector and ..

$2.00

Powerpole-SPS-PDB-04

Powerpole-SPS-PDB-04

Sailplane Power System,  Power Distribution Block, 4-Position, with Powerpole connectorsAny con..

$36.00

Powerpole-SPS-PDB-08

Powerpole-SPS-PDB-08

Sailplane Power System,  Power Distribution Block, 8-Position, with Powerpole connectorsAny con..

$55.00

Powerpole-SPS-PDB-12

Powerpole-SPS-PDB-12

Sailplane Power System,  Power Distribution Block, 12-Position, with Powerpole connectorsAny co..

$60.00

Showing 1 to 33 of 33 (1 Pages)
