Links Becker | Walter Dittel | Flightline | Trig

Related Pages Microphone Comparison Handheld Radio Comparison Speaker Comparison Antennas Currency Issues Since the products below are from outside the US, the prices are subject to change with fluctuations in currency values.

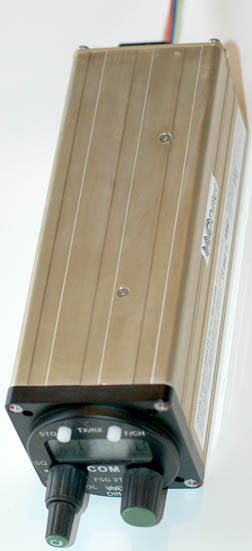

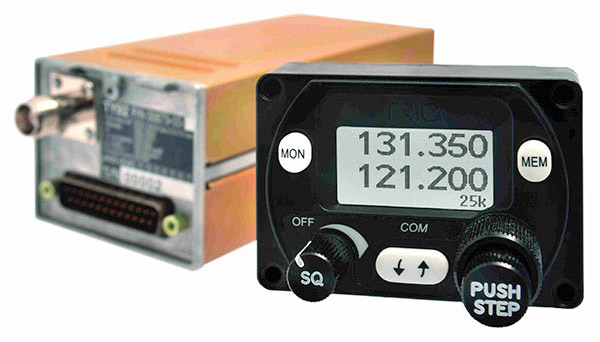

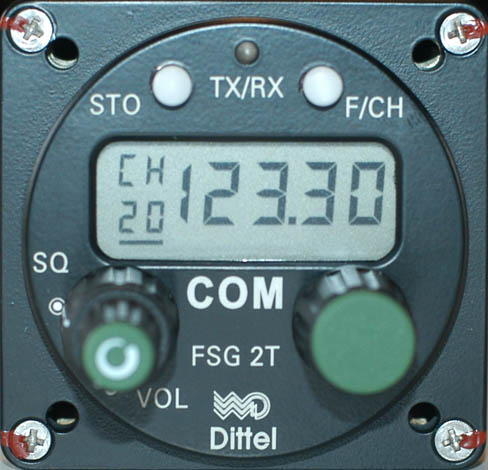

Aviation Radio Comparison Table Becker AR 6201-8p33kHz   Walter Dittel FSG 2T    Flightline FL-760A Trig TY91 Price for Radio $1395 $2195 $800 $1660 Price for complete system including: boom microphone, wiring harness, speaker/wiring junction box, push-to-talk switch (Antenna not included) $2050 with: Peiker TM170-23in  gooseneck microphone,  DIN-5m-240 connector  (for connection to Dittel speaker box),  Dittel Speaker Box, Dittel PTT and Goddard:Cable-Becker-AR6201-DittelSpkr-3 wiring harness $2830 with:  Dittel gooseneck microphone $2760 with  Peiker TM170-23in   gooseneck  microphone and  DIN-5m-240 $1385  with  Peiker ME510-25in gooseneck microphone, Peiker speaker and Dittel PTT button $2196 with  Peiker KL-1 Speaker,  Goddard: Cable-TY91-1SeatGlider-0p5,  Peiker ME510-25in and  Dittel F10050 Push-To-Talk Switch Country of Manufacture Germany Germany Japan Edinburgh, Scotland TSO Yes Yes No Yes Transmit Power Output (carrier) 6 W 5 W 5 W 6 W Transmit Power Output (PEP) 18 W 16 W Channels 2280 760 760 2280 Channel Spacing 8.33 kHz 25 kHz 25 kHz 8.33 kHz "Dual Monitor" (monitor standby frequency if nothing is being received on main frequency) Yes No No Yes Built-in Intercom Yes Yes Yes Yes Receive VOR Channels No No No Minimum Voltage 9 VDC 9 VDC 11 VDC 8 VDC (2.5 W output at 9V, shutdown at 8V) Current Draw on Standby 85 mA 50 mA 300 mA 200 mA (receive) Memory Channels ? 20 32 9 Speaker (standard) 4 Ohm, 6 Watt 4 Ohm, 30 Watt 4 Ohm, 5 Watt (Peiker)  4 or 8 Ohm, 4 or more Watt Microphone Type Dynamic  (Dittel, Peiker)  Dynamic  (Dittel, Peiker)  Electret (like aviation headsets) (Peiker) Electret (like aviation headsets) (Peiker) Alpha Memory Description Yes No No No Instrument panel hole size required 57 mm 57 mm 57 mm 57 mm or 57 x 42.5 mm Length (behind panel, not including connectors) 168.4 mm (6.631 in) 173 mm (6.81 inches) 159 mm (6.26 in) 35.49 mm (1.40 in) 2nd Seat Repeater Available Yes No No No Antenna Connector BNC BNC BNC TNC Stuck Microphone Timer No Yes Yes Unique Features This is a great radio with high quality and great features. The with high quality and great features. The dual monitor mode that allows scanning of two different channels is a great feature. It has low power usage and operates down to only 9V. The RCU6201 remote head can be connected to it for use in 2 seat aircraft that allows scanning of two different channels is a great feature. It has low power usage and operates down to only 9V.  The RCU6201 remote head can be connected to it for use in 2-seat aircraft. Extremely reliable radio with extremely low current drain. Large text display for easy in-flight reading. Extremely clear sound from standard speaker. An interesting low cost option for experimental airplanes. I like the simple operation and the cost. simple operation and the cost. I'm not impressed by the high standby current draw or minimum voltage of 11V, or the fact that it is Non-TSO. But you just can't argue with the price! I have received positive feedback from several customers in regard to this radio.  A very nice radio that looks great next to a Trig TT21 or TT22 transponder in the panel. Nice, large display of main nand standby frequencies. The dual monitor mode that allows scanning of two different channels is a great feature. It operates down to only 8V.It consists of 2 components: the display head and the main transmitter box. That make it easy to fit the display into any panel, but you will need to mount the main transmitter box separately. Also, a wiring harness is needed to connect the display to the radio main unit. I offer a nice Goddard wiring harness that allows scanning of two different channels is a great feature.
