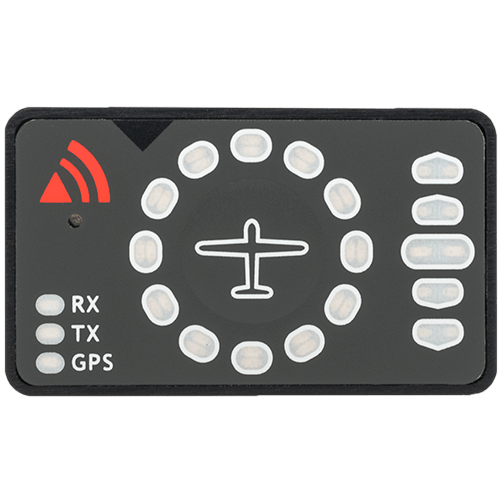

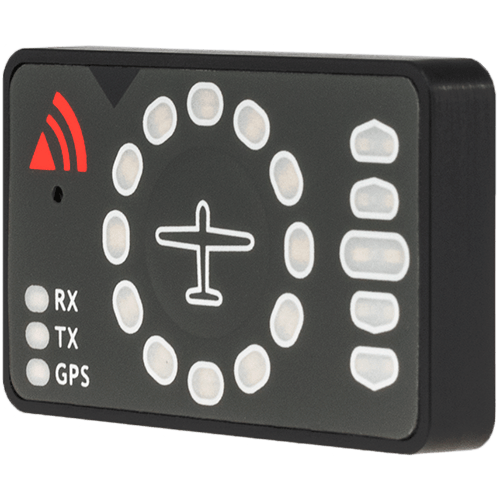

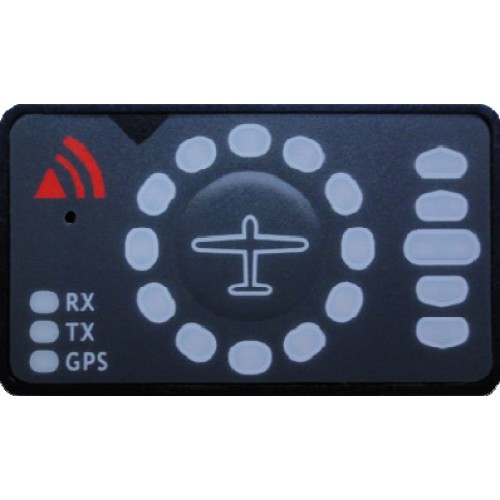

LXNAV FlarmLED
The new FlarmView is a very small and simple display for use with FLARM and PowerFLARM products. It can display FLARM traffic warnings. It can also display warnings for ADS-B traffic and Mode C and Mode S transponder traffic. The user-interface consists of a single pushbutton which is easy to use in flight. The built-in speaker is very loud - which is important for traffic alerts.

Very Small Size

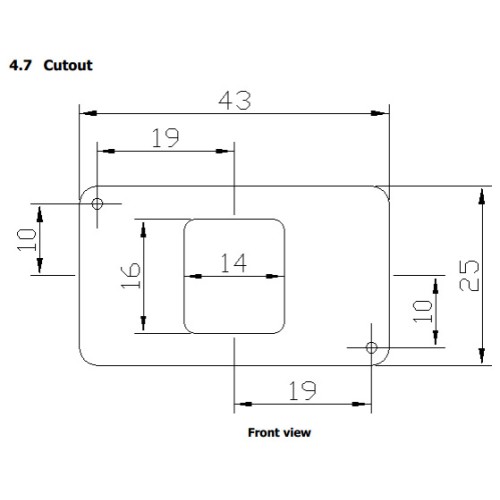

Note: This unit is very small. From the images, you may imagine that it is about the same size as a FlarmView display. It is only about 2/3 as wide as a FlarmView rectangular display - being only 1.65 inches (42 mm) wide and 0.98 inches (25 mm) tall. The dimensions are listed below and shown in the drawing at right. Don't get me wrong - small is good - it will fit into small places on your panel that other displays wouldn't fit. The user-interface is so simple that it is very easy to read at a glance - despite its small size.

Overview

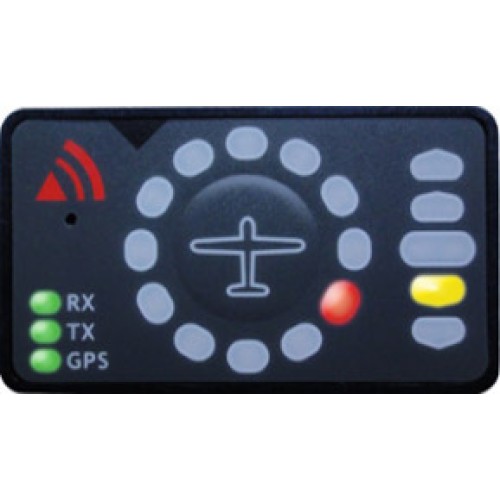

  • 12 bright 2-color LEDs indicate the direction of other aircraft
  • Single push-button - for adjusting audio volume, settings, etc.
  • Vertical position is displayed with 5 LEDs
  • Very loud audio warning
  • Near mode - displays targets in yellow if they are nearby but not a threat
  • Configurable baudrates
  • Double-seater configuration - setup on display as the master and all others as slaves
  • Compatible with all FLARMs and POWER Flarms
  • The small size is easy to install in the tightest of panels
  • Supports all FLARM warnings found in the FLARM 6.0 specification
  • Displays non-directional traffic warnings - (Mode C and Mode S transponder traffic) - when connected to a device such as a PowerFLARM Core which supports those traffic types

Features

  • Extremely bright bicolor LEDs
  • Pushbutton - to adjust beep volume
  • Near mode function
  • PCAS warnings - undirected
  • Adjustable baudrate
  • Slave mode (1 display is master, all additional displays are slaves)
  • Progress indication (during flight transfer, firmware updates, obstacle updates...)

Input and Output

  • Serial RS232 input/output
  • Pushbutton
  • 12 bicolor LEDs for direction
  • 5 LEDs for vertical angle
  • 3 LEDs for GPS, Rx and Tx indication

Power

  • 3.3V DC
  • 10 mA @ 12V (120mW)

Size and Weight

  • Size: 42 x 25 x 5 mm (1.65 x 0.98 x 0.20 inches)
  • Weight: 10 g (0.35 ounces)

Included

  • FlarmLED display

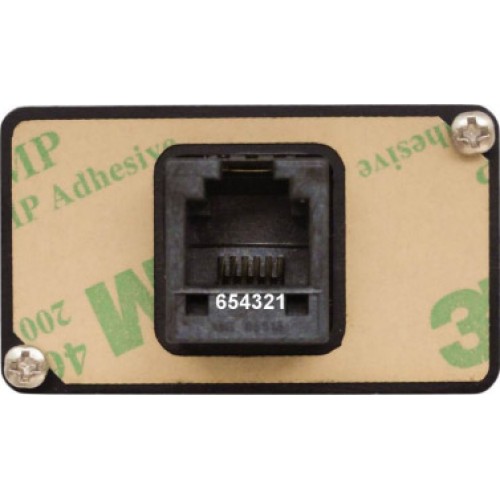

  • Power/data cable with RJ11 connector for connection to the back of the unit and RJ45 connector for connection to FLARM or PowerFLARM display port,
    Cable Length: 24 inches (Let me know after ordering if you need a longer cable.)
  • Printed manual

Manual
Details are available in the FlarmLED manual which is available here.

Write a review

Note: HTML is not translated!
    Bad           Good

LXNAV-FlarmLED

  • Brand: LXNAV
  • Product Code: LXNAV-FlarmLED
  • Availability: In Stock
  • $130.00
