Naviter Bluetooth Dongle

Description
The Naviter Bluetooth Dongle converts any flight instrument with serial data output to a smart Bluetooth Low Energy device.

Features

  • Plug-and-play, zero configuration needed.
  • Bluetooth Low Energy interface (Oudie N, iPhone, iPad, Android, etc.)
  • Auto-detects serial data baud rate.
  • Starts transmitting as soon as valid data is detected.
  • Transmits data both ways – to and from connected device

Change broadcasted name with SeeYou Navigator to be able to distinguish it from other Naviter Bluetooth Dongles around.

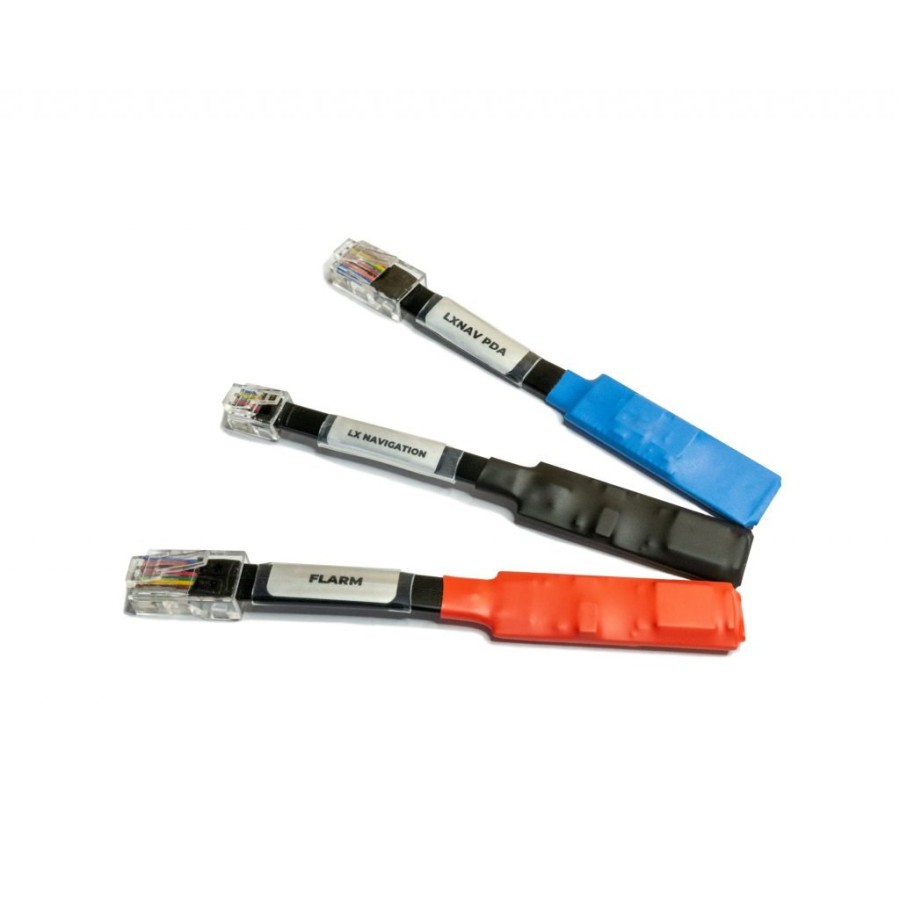

Versions:

  • Condor and Condor2 version with rectangular USB A connector
  • FLARM – IGC Standard port, with RJ45 8-pin phone jack connector, works with FLARM, PowerFLARM Core, PowerFLARM Portable, PowerFLARM Fusion, LXNAV PowerMouse, etc., NOT compatible with LXNAV PDA port,
  • LXNAV – PDA port, with RJ45 8-pin RJ45 phone jack connector, works with LXNAV S7, S8, S80, S10, S100 variometers, LXNAV NanoPower adapters, and newer LX80x0 and LX90x0 units. NOT compatible with FLARM or IGC Standard
  • LX Navigation - User Port, compatible with LX Navigation Era, Eos, Helios and 10k variometers with a User port in the back

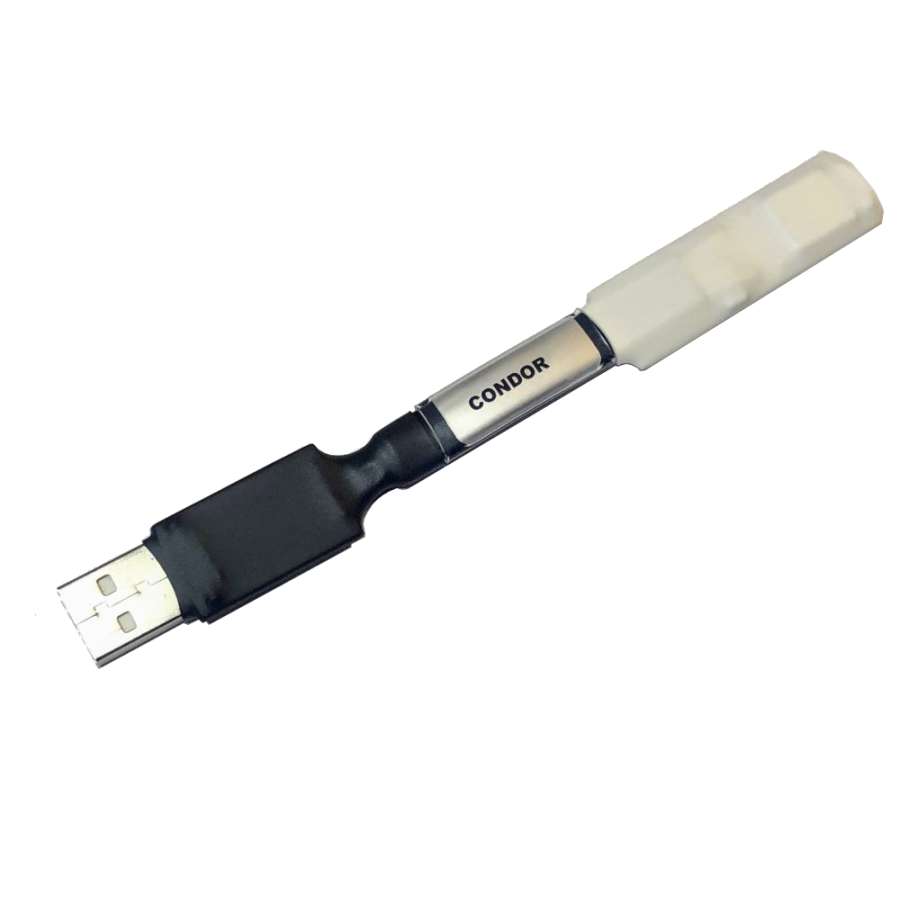

Condor
Connect Oudie N or SeeYou Navigator on your smartphone to Condor or SeeYou. Navigate around Condor missions or learn to use Oudie N / SeeYou Navigator in the comfort of your home.
Connects to any Windows PC's USB A rectangular port.

Please see installation and use tips here: https://kb.naviter.com/en/kb/naviter-condor-dongle/

Features:

  • Plug-and-play, zero configuration needed.
  • Auto-detects serial data baud rate.
  • Starts transmitting as soon as valid data is detected.
  • Transmits data both ways – to and from connected device
  • Change broadcasted name with SeeYou Navigator to be able to distinguish it from other Naviter Bluetooth Dongles around.

Tips

IMPORTANT: Naviter Condor Dongle is not recognized automatically in Windows. You must install drivers for this dongle before first use.

Installation Instructions (first time use)

  1. Install USB to Serial drivers on your PC
    1. Download CP210x Universal Windows Driver
    2. Open the downloaded ZIP package (double click in Windows Explorer)
    3. Install CP210xVCPInstaller_x64.exe
  2. Run Condor
  3. Go to Setup > Options > NMEA Output
  4. Enable NMEA Output
  5. Choose available COM port associated with the Condor Dongle (normally COM3 or similar)
  6. Start flying with Condor. Only now, the data stream becomes available and Dongle is activated
  7. Run SeeYou Navigator or Oudie N

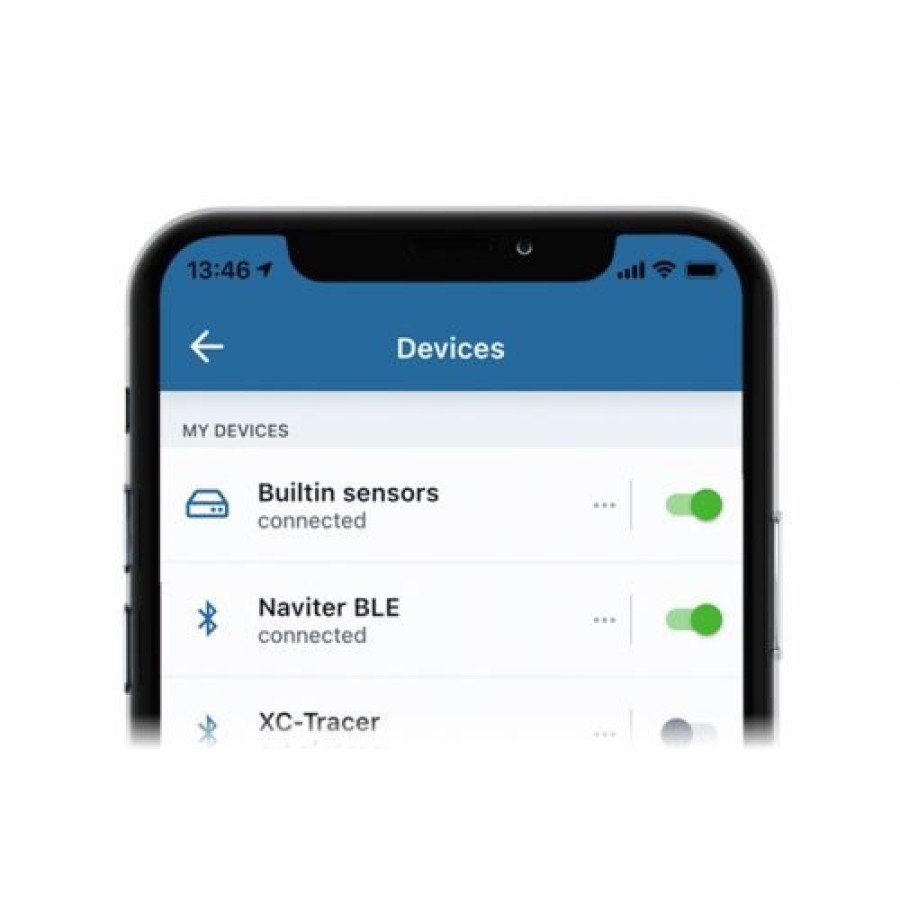

  8. Go to Menu > Devices
  9. Wait until see “Naviter BLE” appears in the list of discovered devices
  10. Tap on “Naviter BLE
  11. Wait until it displays a “connected” message

Done. The Naviter Condor Dongle is set up and ready to use.

Normal operation

Once the 1st time installation has been done, flying with the Naviter Condor dongle is easy.

  1. Make sure Condor Dongle is plugged into the computer
  2. Run Condor and start flying
  3. Run SeeYou Navigator or Oudie N after flying starts in Condor

The Condor Dongle will connect automatically each time.

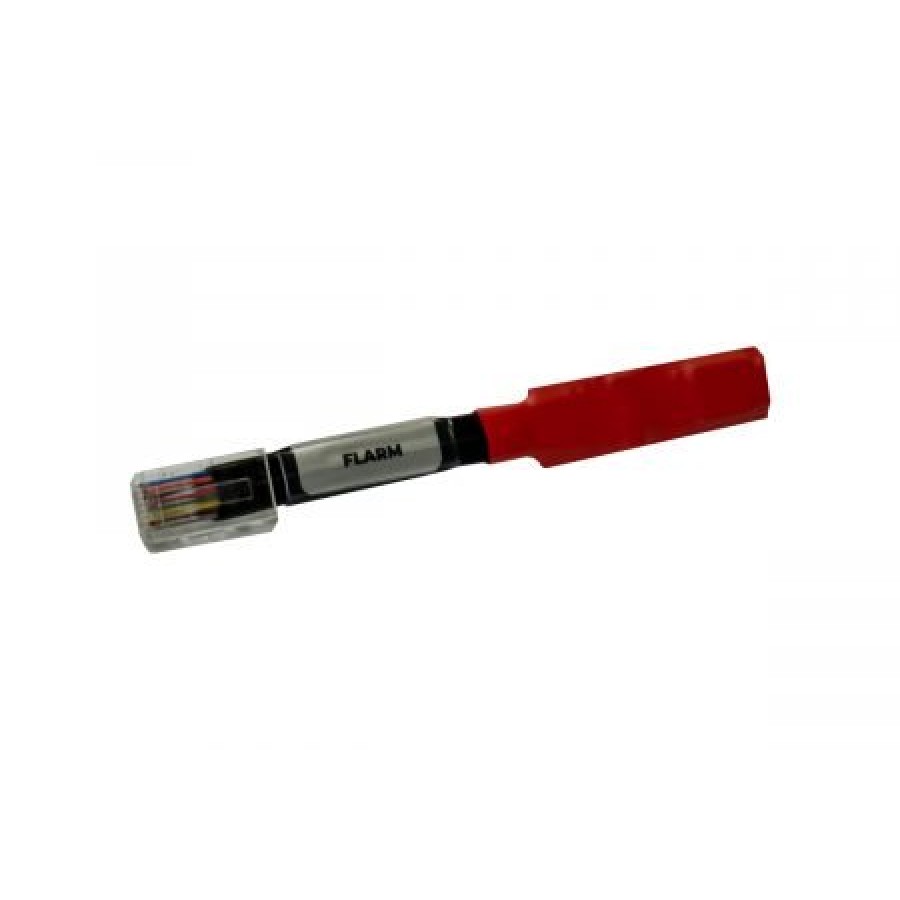

FLARM – IGC standard port
Compatible with all FLARM and PowerFLARM devices with a free RJ45 port with standard IGC-pinout in the back.  If no free RJ45 port is available on your device, you will need a separate FLARM Splitter to connect Naviter Bluetooth Dongle to your FLARM.

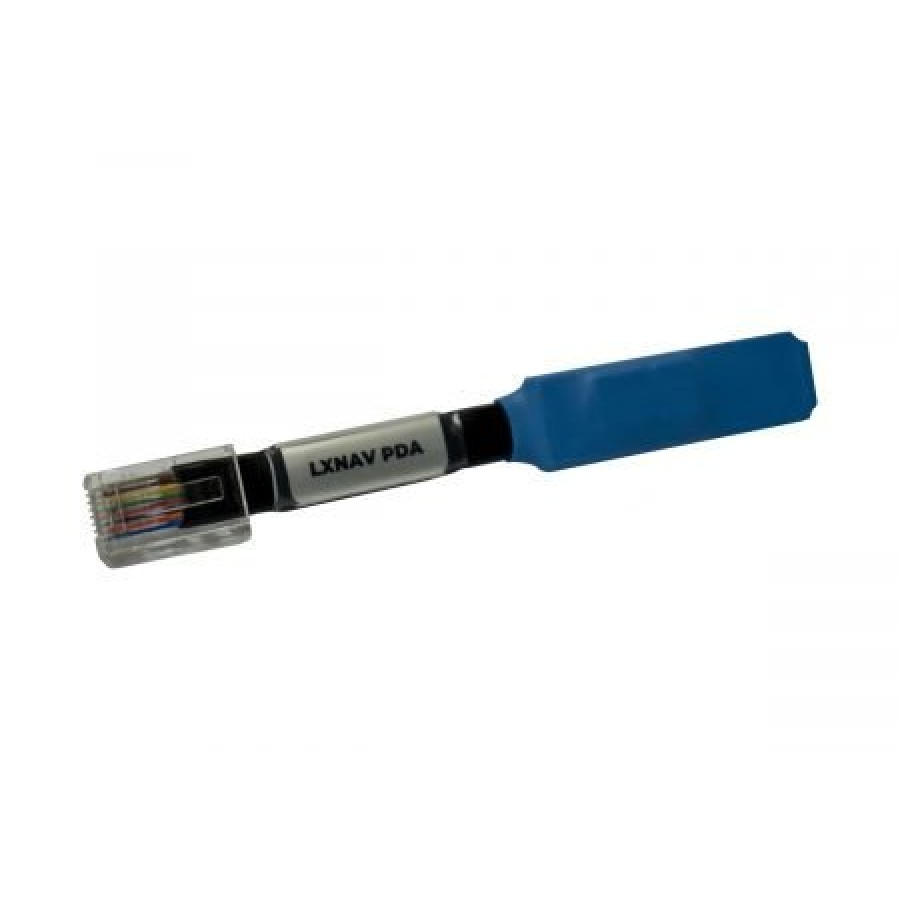

LXNAV – PDA port
Compatible with LXNAV V7/S7/S8/S80/S10/S100 as well as any LX 8xxx/9xxxx version with a PDA port in the back.

No configuration is required. Simply plug it into the PDA port, start the flight instrument, enable its Bluetooth module and Naviter BT Dongle will become visible after a few seconds. The moment it becomes visible as a Bluetooth device, it is ready to transmit data over Bluetooth Low Energy and Bluetooth 2.0 protocols.

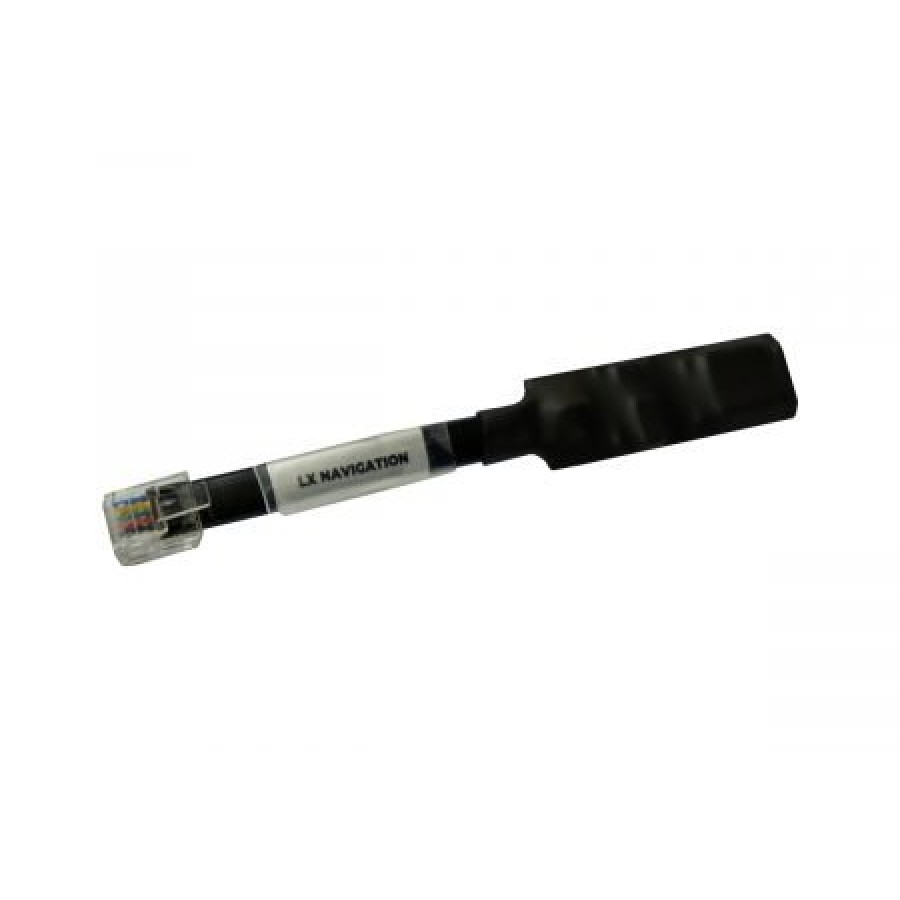

LX Navigation – User port

Compatible with all LX Navigation Era, Eos, Helios and 10k variometers with a User port in the back.

No configuration is required. Simply plug it into the User port, start the flight instrument and it will become visible after a few seconds. The moment it becomes visible as a Bluetooth device, it is ready to transmit data over Bluetooth Low Energy and Bluetooth 2.0 protocols.
