LX8030 with V8 Variometer

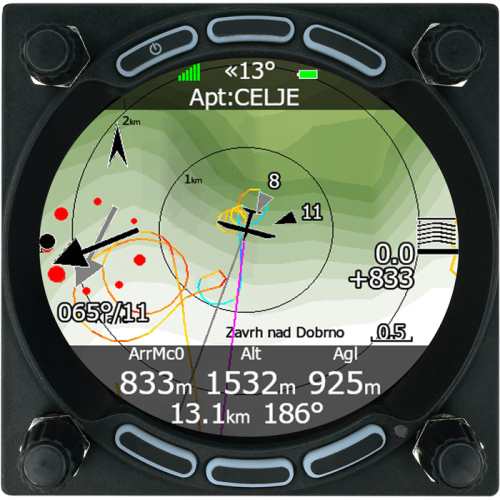

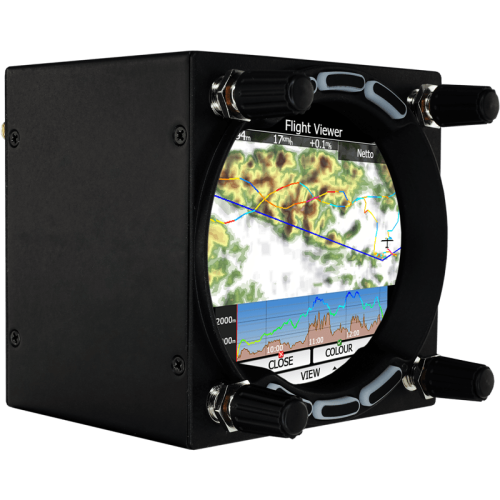

The LX8030 is a high end vario navigation system with extremely bright color display. The main display fits into a standard 80 mm instrument hole.  Yet the 4.0 inch screen is much larger and of higher resolution (480 x 480 pixels) than the 2.8 inch (320 x 240 pixel) screen found in its predecessor, the LX8080.

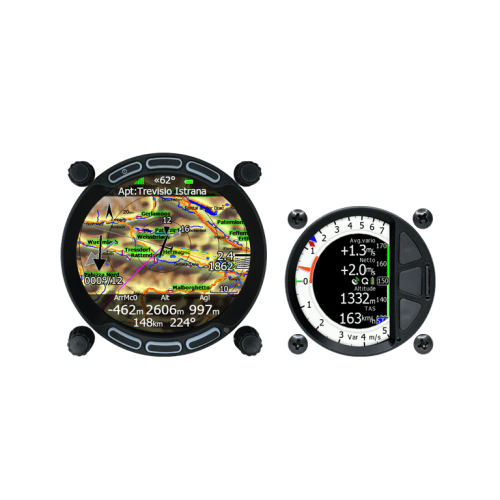

The included V8 variometer fits into a standard 57 mm instrument hole. If there is room for an 80 mm variometer, the V80 is an optional upgrade.

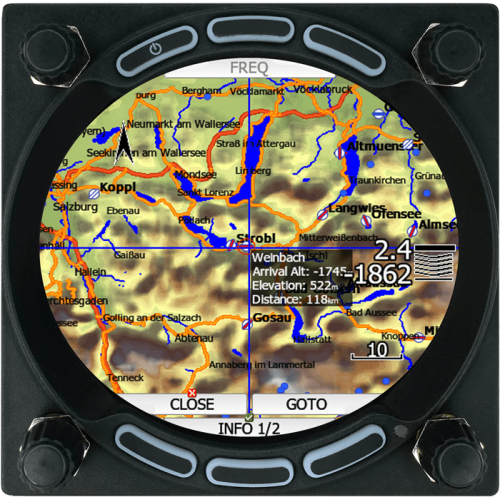

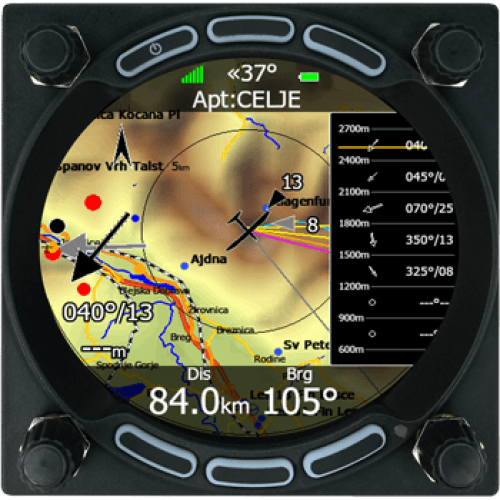

Simple and logical user interface is designed for top-level competitors, club operation as well as for gliding beginners. It is preloaded with worldwide terrain maps, airspace and airports databases. User friendly data exchange is done using the standard built-in Wi-Fi connectivity or USB interface, or with an optional, externally-mounted SD Card reader. The LX8030 has a built-in GPS flight recorder that is IGC approved for all flights. LX8030 copes with complex tasks with assigned areas. In-flight optimizations according to FAI and OLC rules are also shown.

PowerFLARM Compatibility
The LX8030 can works great with an external PowerMouse or PowerFLARM Fusion connected to the round 5-pin connector on the wiring harness that attaches to the back of the LX8030 using an LXNAV-LX5-PF or LXNAV-LX5-PFCore cable. The LX8030 displays the FLARM, ADS-B and PCAS Mode C and Mode S transponder traffic from the PowerFLARM on the moving map and vario display.

Configurations
   LX8030    LX8030-Club
Built-in Wi-Fi
V8 Vario

V80 VarioOptionalOptional
IGC Approved Flight Recorder

Built-in GPS

Voice Messages
Optional
Profile customization with LX Styler/Style function
Optional

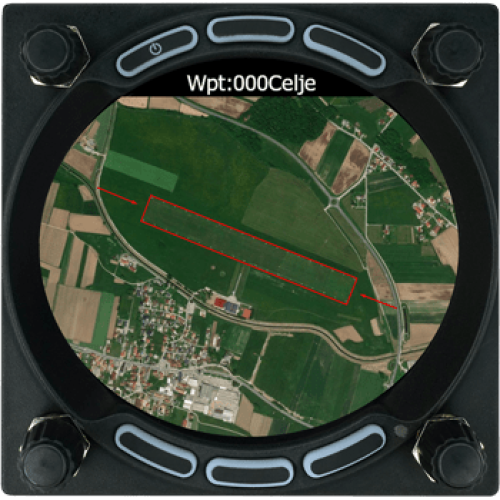

Support for waypoint files with images (.cupx)
Optional
Terrain
Optional
Map Elements
(roads, highways, water bodies, railways, town names)

Optional
External SD Card ReaderOptionalOptional
AHRS (Artificial Horizon)Optional

Optional


Display unit features

  • Extremely bright color 4.0" (480 x 480 pixels)
  • Sunlight readable display (1000 cd) with backlight automatically adapted using photo-sensor
  • Standard Built-in Wi-Fi connectivity
  • Full customization with LX Styler program
  • Dual core ARM Cortex-A9, 1GHz
  • 56-channel uBLOX GPS receiver
  • Engine noise level sensor
  • Pressure altitude sensor
  • Optional external SD card reader

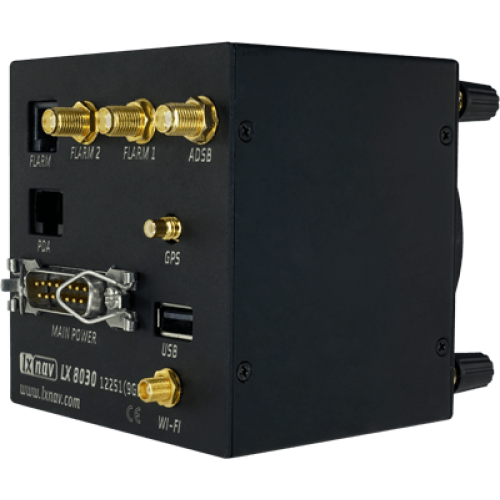

  • Built-in USB interface, Serial RS232, RS485 bus

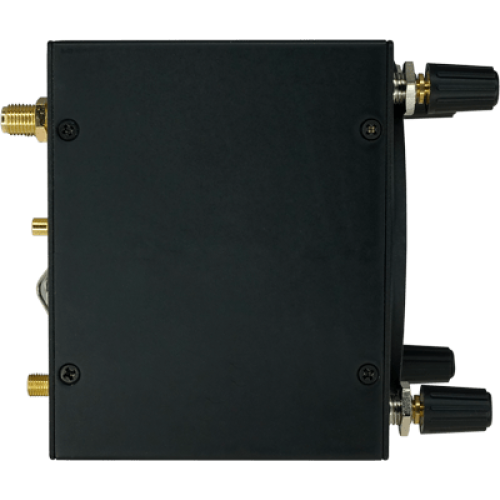

  • Dimensions: 82 x 82 x 77 mm (W x H x D)
  • Weight: ~472 g
  • Power input 10-24 V DC, consumption at 12V 250-350mA
  • Displays FLARM data provided by an external FLARM device.

V8 Vario unit features

  • Fits in a standard 57 mm instrument hole
  • Solid State Design (no moving parts)
  • ARM Cortex-M4 processor running on 160MHz
  • 2.5", 320 x 240 pixel sunlight readable color display
  • Digital temperature compensated pressure sensors for altitude and airspeed
  • inertial platform
  • 3 axis accelerometer
  • 3 axis gyros
  • AHRS (optional software enable)
  • 3 push-buttons
  • Built-in microSD card reader
  • Smooth 16bit audio output
  • integrated synthesized speech output
  • RS485 bus
  • CAN Bus
  • Speed command and Vario priority input
  • 4 digital inputs (airbrakes, landing gear, etc.)
  • Smooth audio output
  • Speech output (voice module)
  • Current drain vario unit 120mA at 12V
  • Dimensions: fits 57mm instrument hole, 61 x 61 x 92 mm

Input and output

  • Built-in Wi-Fi functionality
  • Optional external SD card reader
  • RS232 Serial interface
  • RS485 bus interface
  • USB interface

Optional Accessories

  • Rear seat device (Works great with LX8030D, LX8040D, LX9050D, LX9000D, or LX9070D)
  • Stick-Mounted Remote
  • Additional i8 indicator
  • AHRS Artificial Horizon (software upgrade)

Training Videos
7+ LXNAV LX80x0 and LX90x0  Training Videos


LXNAV LX80x0 and LX90x0 Training Videos

Manual

Firmware Upgrades

Lead-time: 2 to 4 weeks

Write a review

Note: HTML is not translated!
    Bad           Good

LXNAV-LX8030

  • Brands LXNAV
  • Product Code: LXNAV-LX8030
  • Availability: In Stock
  • $2,735.00
