Schuwirth-Quadrant-Glider-Trainer

The Schuwirth-Quadrant-Glider-Trainer is for use with soaring flight simulator software like Condor3. It greatly enhances the feeling of being in the glider cockpit.

It works great mounted on a sit-in glider simulator rig, or attached to the edge of a table or desk using the optional Condor-Desk-Mount.

Two Versions

• This Schuwirth-Quadrant-Glider-Trainer is recommended instead for flight training simulations.  The flaps are actuated using a "+/-" toggle switch, and a yellow "release" pull-handle enhances training.  The included Instructor Remote allows the instructor to sneakily override the airbrakes and release.
• The Schuwirth-Quadrant-Glider-XC (on a separate webpage) version is ideal for cross-country soaring adventures. Having a flap handle is convenient when flying a flapped racing sailplane. A yellow button is usually used for the "release".

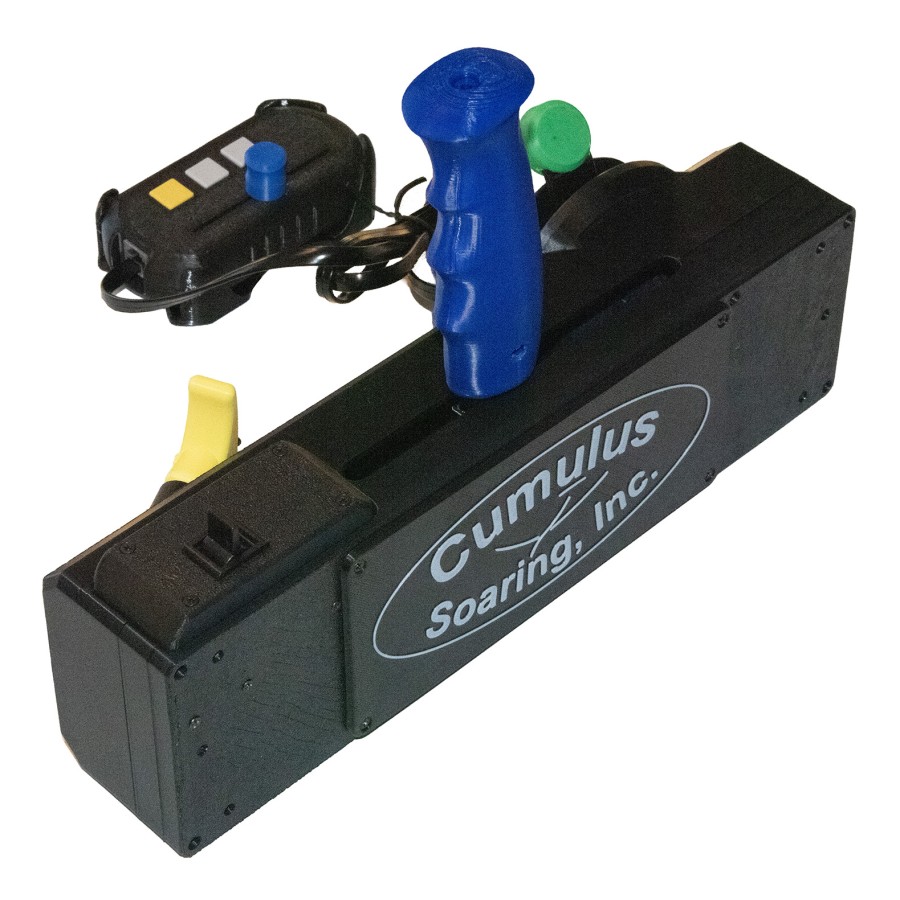

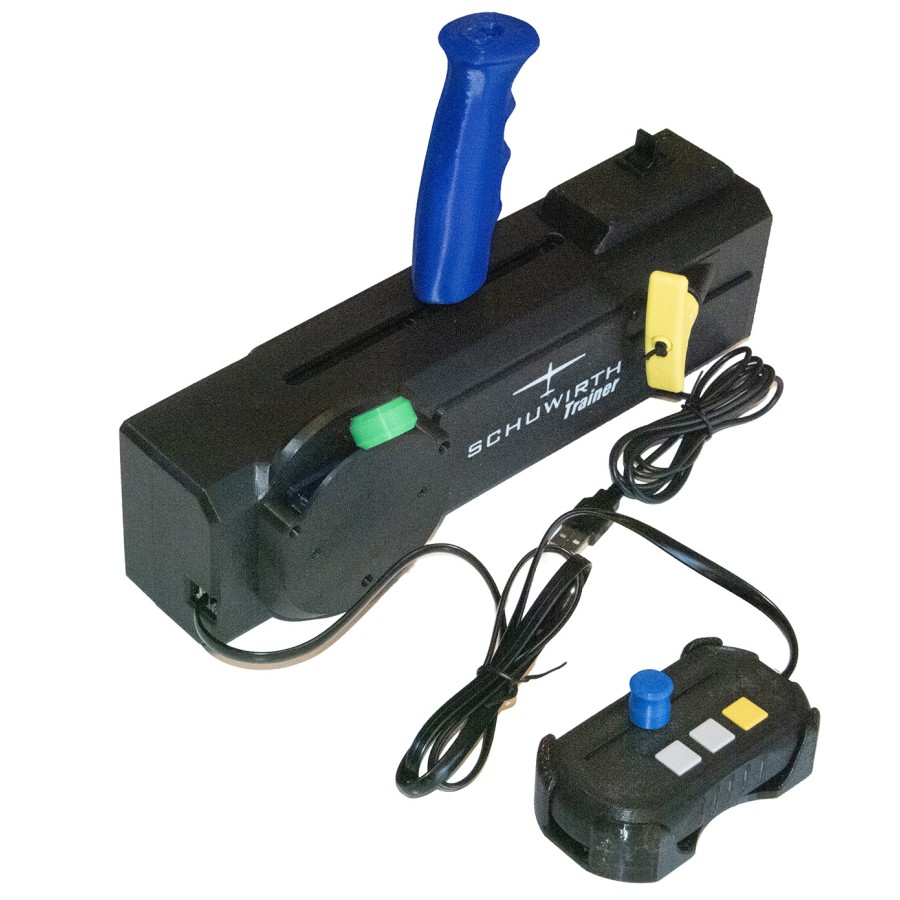

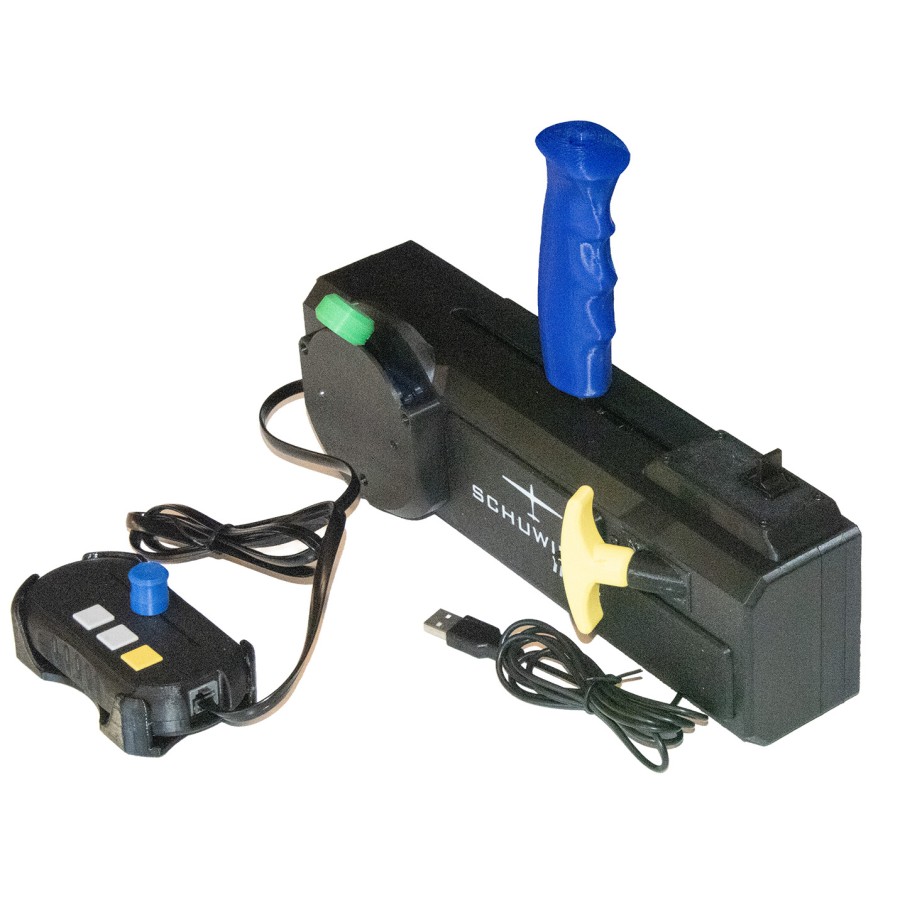

Features and Functions

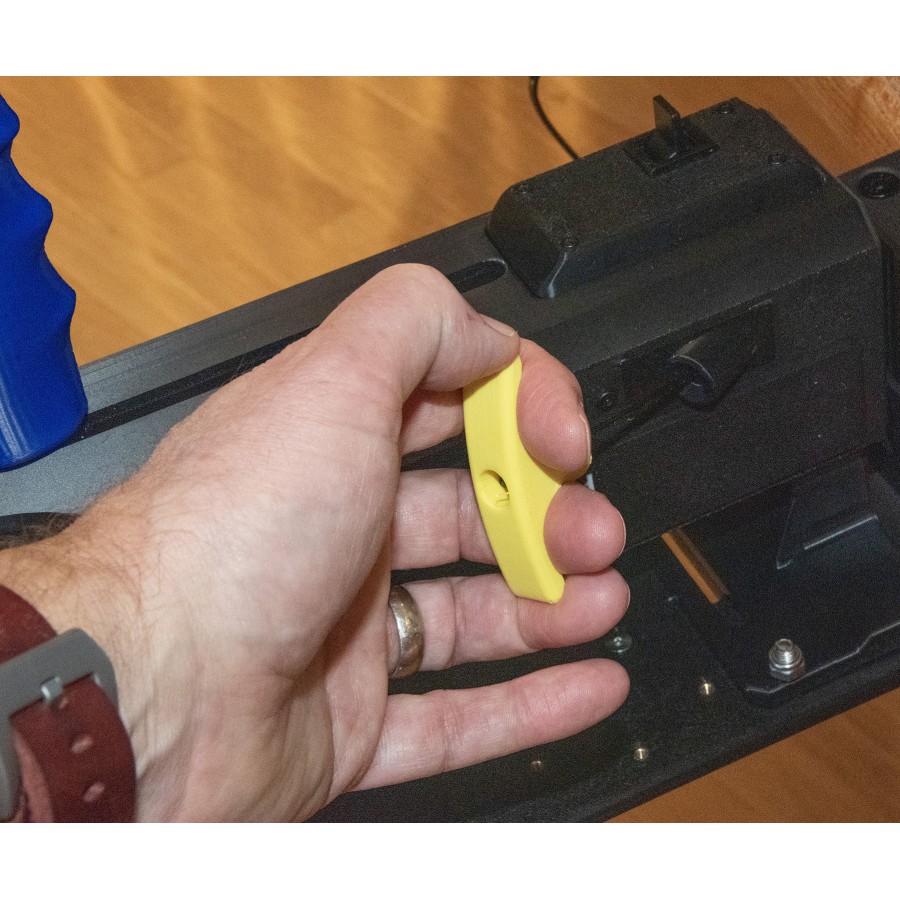

• Yellow Release Pull-Handle - So cool!  Just like a real sailplane!
• Green Trim Lever
• Blue Airbrake slider
• Black Flaps +/- Toggle Switch - bump-in a little more or less flap
• Instructor Remote
  • Yellow Release Button
  • Blue Airbrake Slider - Press and hold the center grey button to enable this slider.  The instructor can sneakily open the airbrakes during the aerotow - or any time.
  • Center Grey Pushbutton - Configurable to any function - such as "miracle" (gain 500 m instantly)

Features

• Includes cable with USB A connector, for connection to your PC.

• Works great with all somewhat recent versions of Windows.  You don't need to install any drivers or software tools.  You just connect it to your PC, then in Condor, go to Setup, Input (tab), Assign Controls.

Dimensions

• Length: 11.8 inches (300 mm)

• Width of main box including trim lever housing: 3.15x inches (80 mm)

• Depth of main box: 3.3 inches (85 mm)

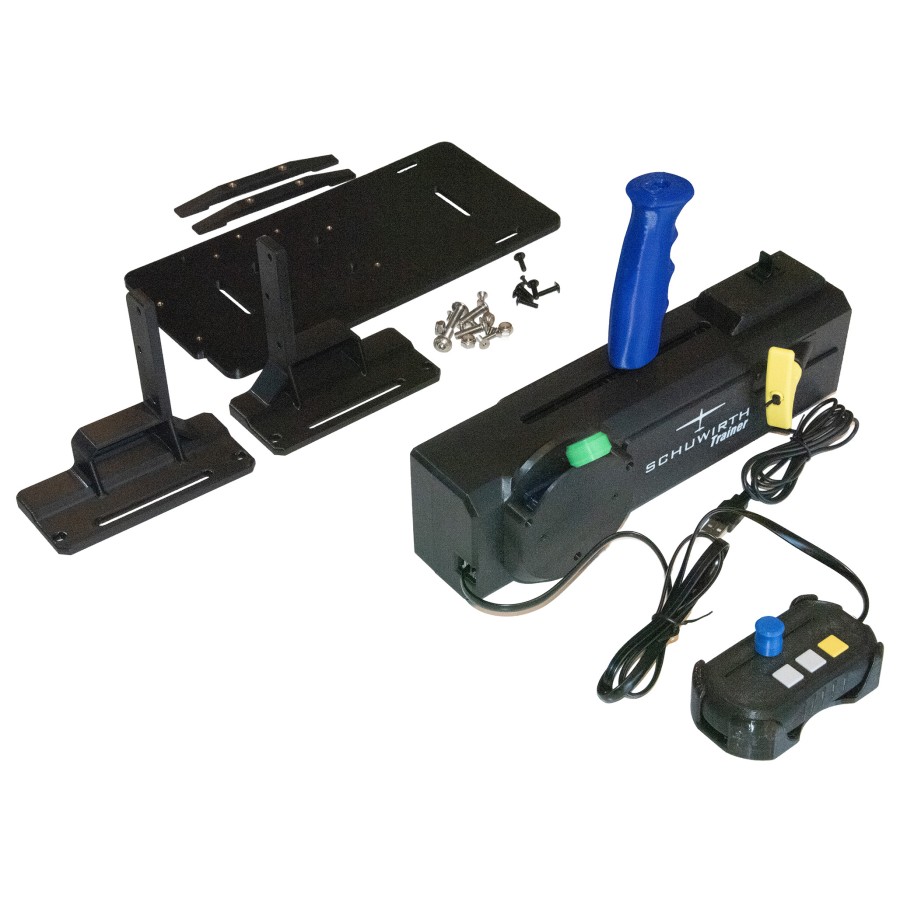

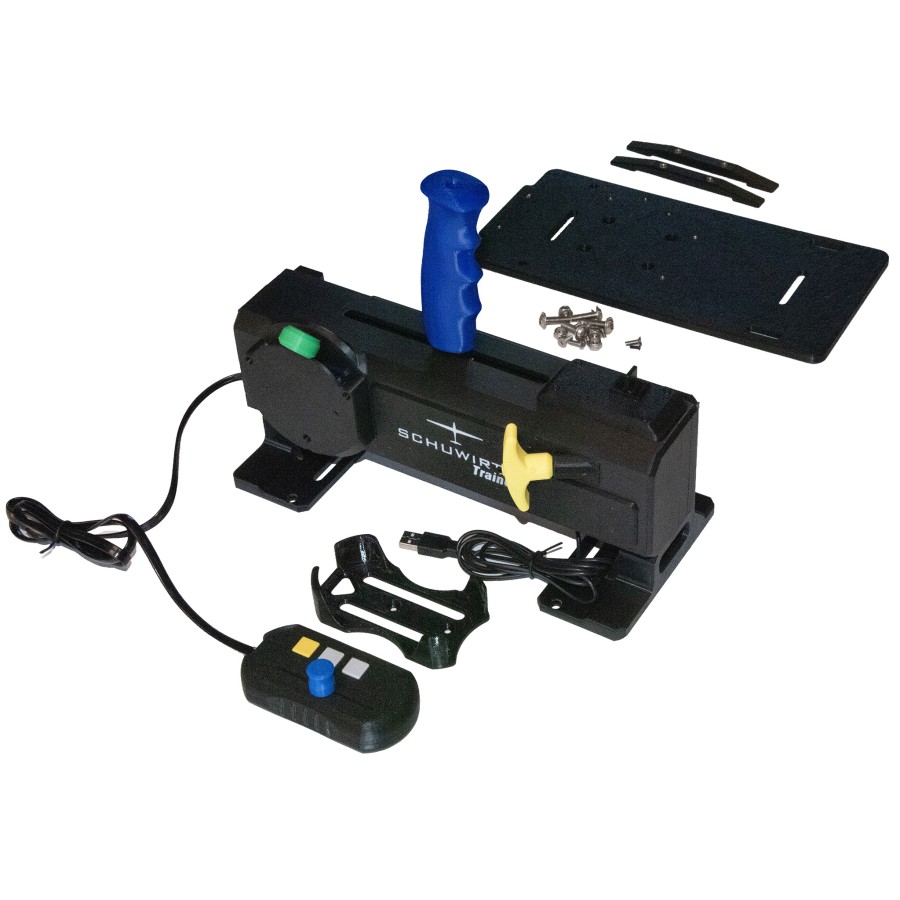

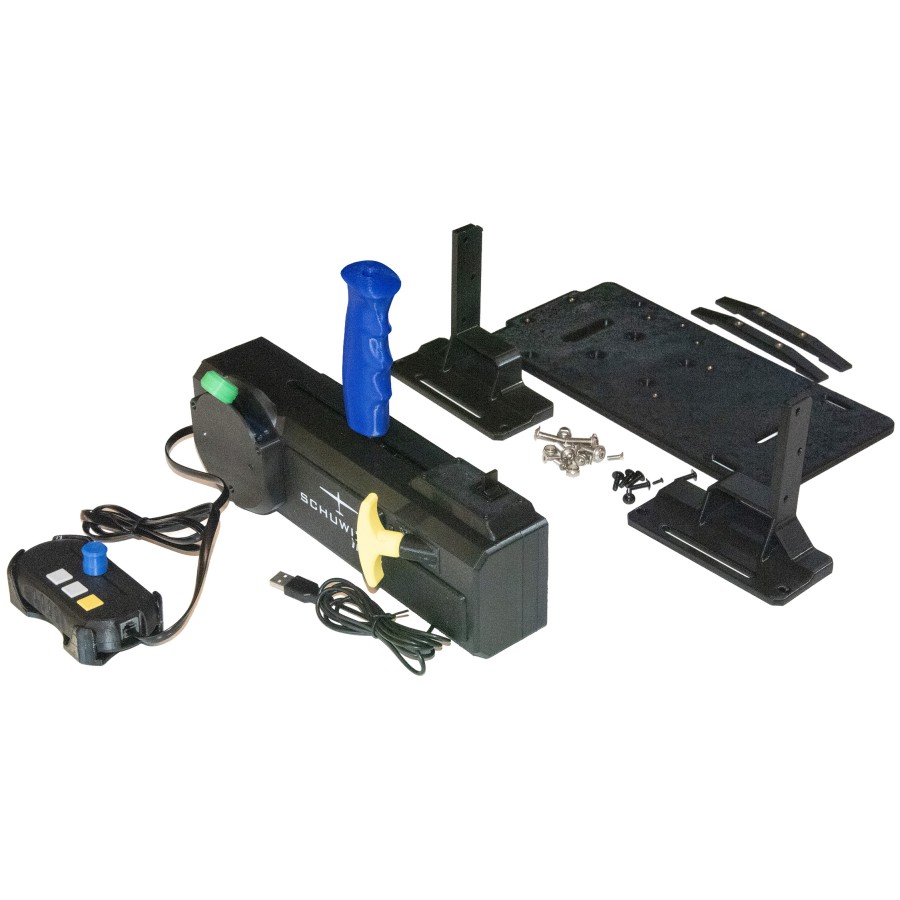

Included

• Main Controller Unit, with attached cable with USB A connector for connection to PC
• Instructor Remote with mounting bracket and cable for connection to Main Controller
• Mounting Legs and screws for attaching the legs to the Main Controller - Useful when mounting on a sit-in simulator rig
• Mounting Plate and adapter brackets and related screws and nuts - Used when mounting the unit to the optional Condor-Desk-Mount

Not Included

• Condor-Desk-Mount

Options

• Condor-Desk-Mount

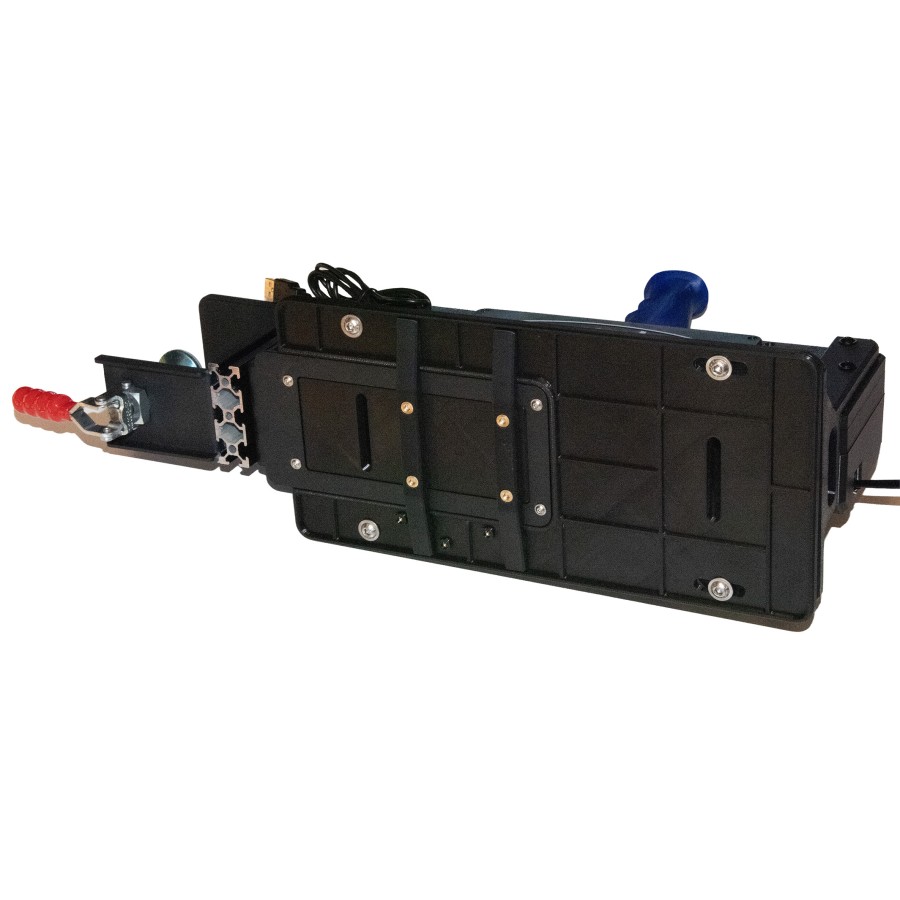

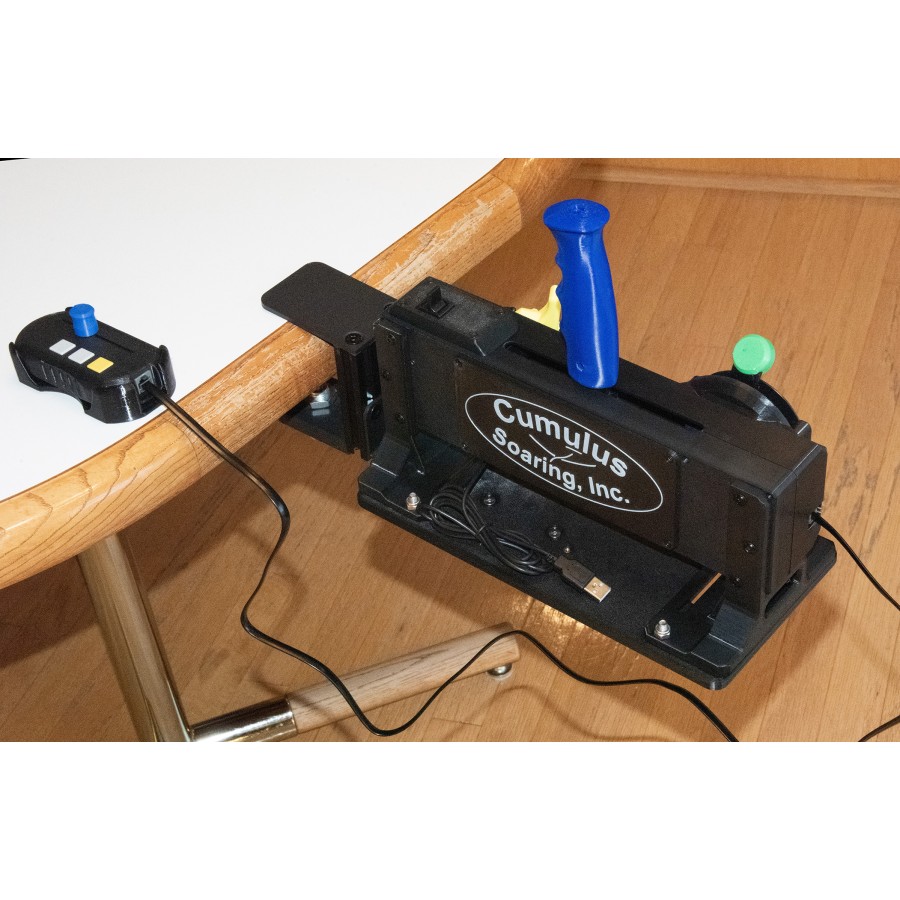

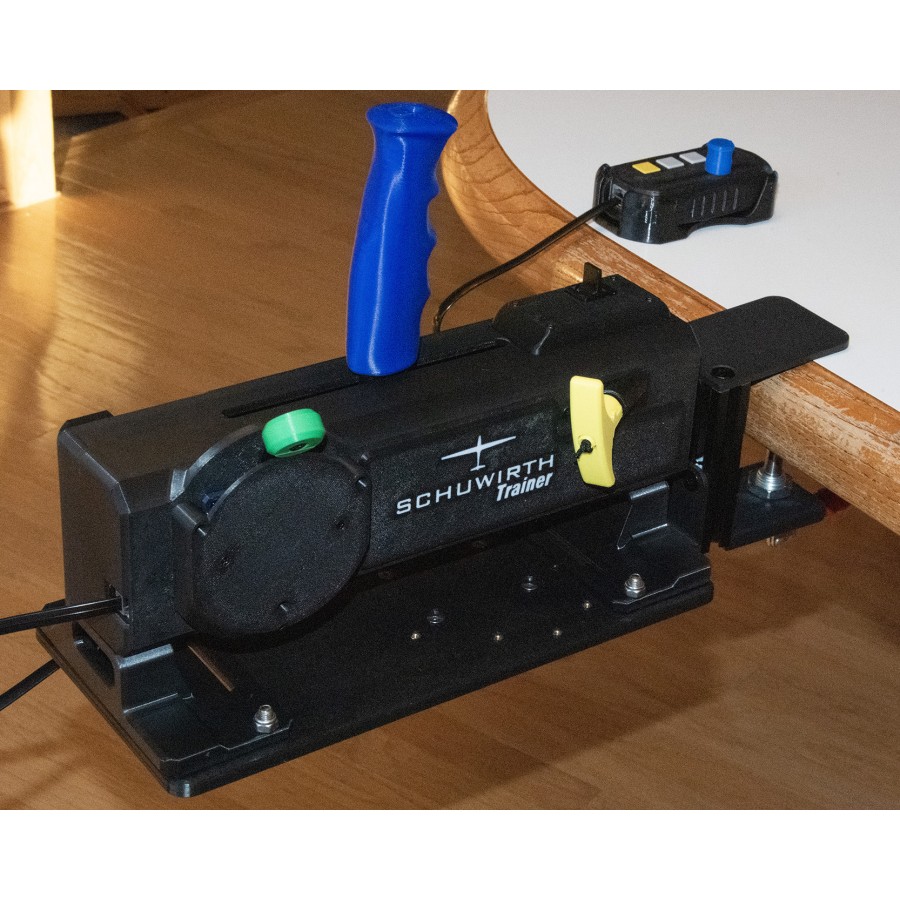

  NOTE: Some of the photos above show the optional Condor-Desk-Mount.  It is not included.  However, a plastic adapter plate and screws are included for connecting the Schuwirth-Quadrant-Glider-XC to the Condor-Desk-Mount. It's a very rugged and solid setup.
