1 Place System with EDS O2D1-2G Kit, XCR-1 Regulator, AL-647 (22.8 cu. ft.) Aluminum Cylinder and Full-Pack

The system consists of the following items: Oxygen cylinder with Full-Pack or CMK mounting kit, the XCR primary reducing regulator, low-pressure service line, EDS Pulse Demand™ unit, breathing cannulas, face mask and tote bag.

The basic EDS-O2D1-2G is a single place outlet system. Two units may be combined for a two place system such as would be used in a tandem configuration.

Duration Table (hours)
Cylinder	Fill Pressure		Volume		Diameter Max.		Length Max.		Weight Empty		Duration in Hours (1 Place)
	bar	PSI	liters	cu. ft.	cm	inch	cm	inch	Kg	lb	10K ft	15K ft	18K ft
AL-647	124	1800	526	18.6	13.33	5.250	48.51	19.10	3.81	8.40	32.2	15.6	12.1
AL-647	153	2216	647	22.8	13.33	5.250	48.51	19.10	3.81	8.40	39.6	19.2	14.9

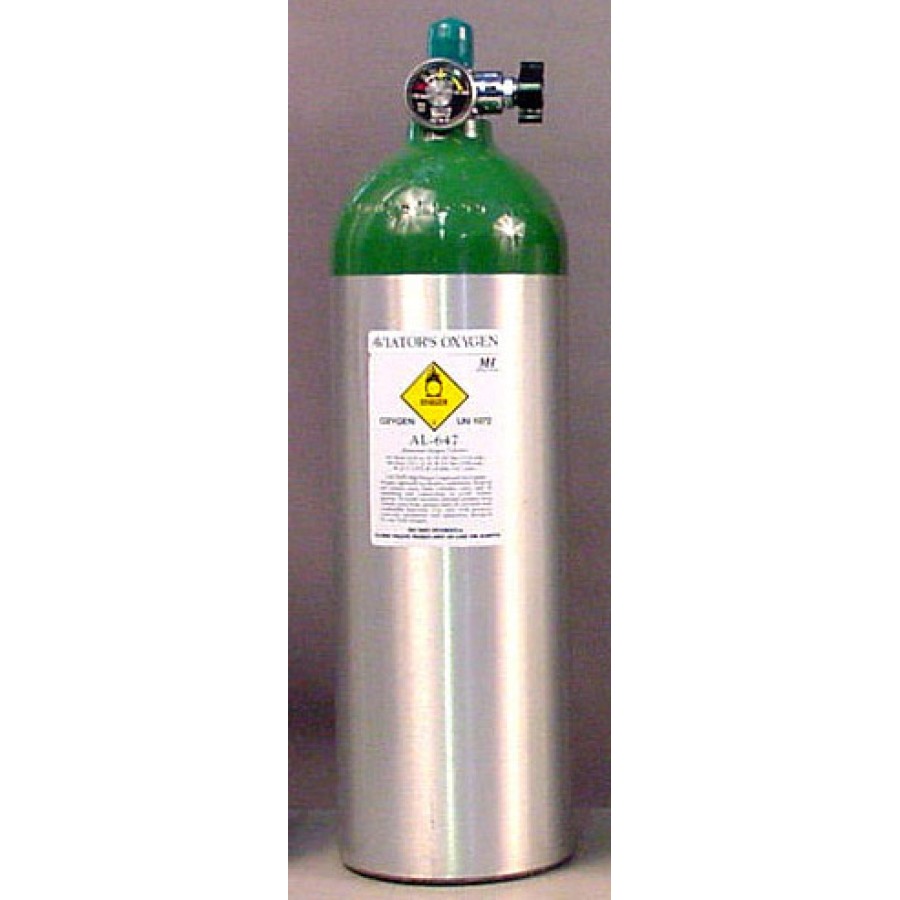

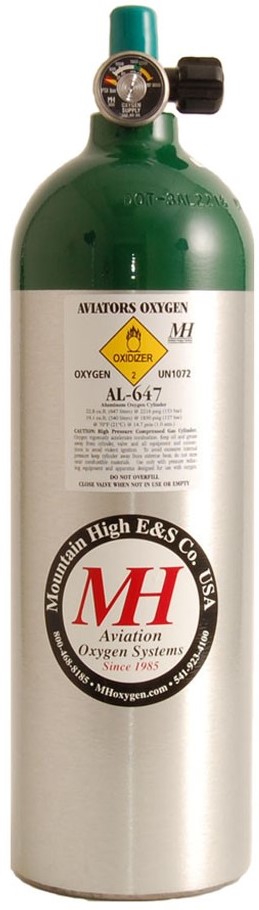

AL-647 Aluminum Cylinder , Volume: 22.8 cu. ft., Diameter: 13.33 cm. (5.25"), Length: 48.51 cm. (19.10")
Full-Pack padded carrying pack
XCR-1 regulator (CGA-540 type), 00REG-1033-00

Included:

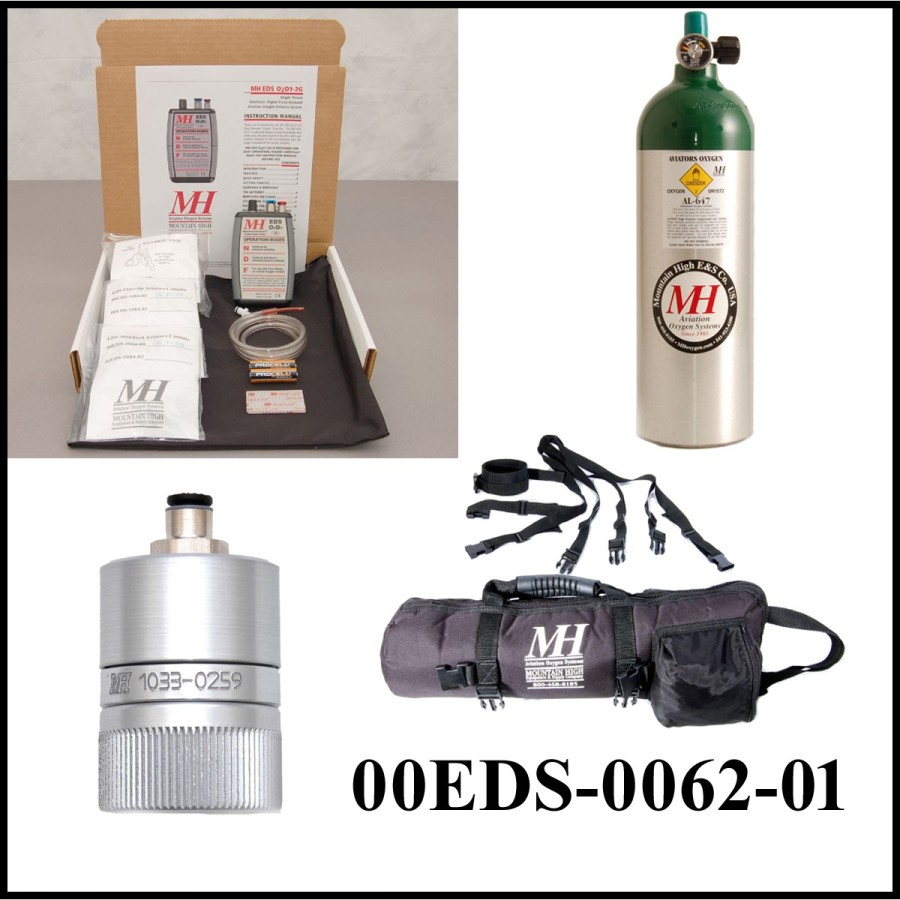

Items included in this EDS O2D1 Breathing System Kits

AL-647 Aluminum Oxygen Cylinder	EDS O2D1-2G Unit	EDS Cannulas (standard tip) 00EDS-1084-00	EDS Cannulas (flare tip) 00EDS-1084-01	EDS Face Masks 00EDS-1078-00


Tote Bag, 12" x 12" 60000-0012-00	00REG-2110-04 Regulator and red tubing	Full-Pack	EDS to XCP Coupler Kit	Example system with AL-180 Cylinder (Included Holster-Pack not shown)

Not Included:

Oxygen - The oxygen tank is empty.

See our Full-Pack and Tuff-Pack cylinder harness & carry-caddies for these cylinders. Also see CMK cylinder hold-down kits. With the optional EDS to XCP Coupler Kit, the EDS can be used with an XCP system at the same time flow meters are being used. Also, the optional ALPS FaceMask with or without microphone is the perfect addition to any EDS system.
