Aircraft Speaker Box and Wire Junction Box
4 Ohm, 30 Watt, small, robust case, for 2 mikes or headsets, 5-pole sockets, fits F10028 or

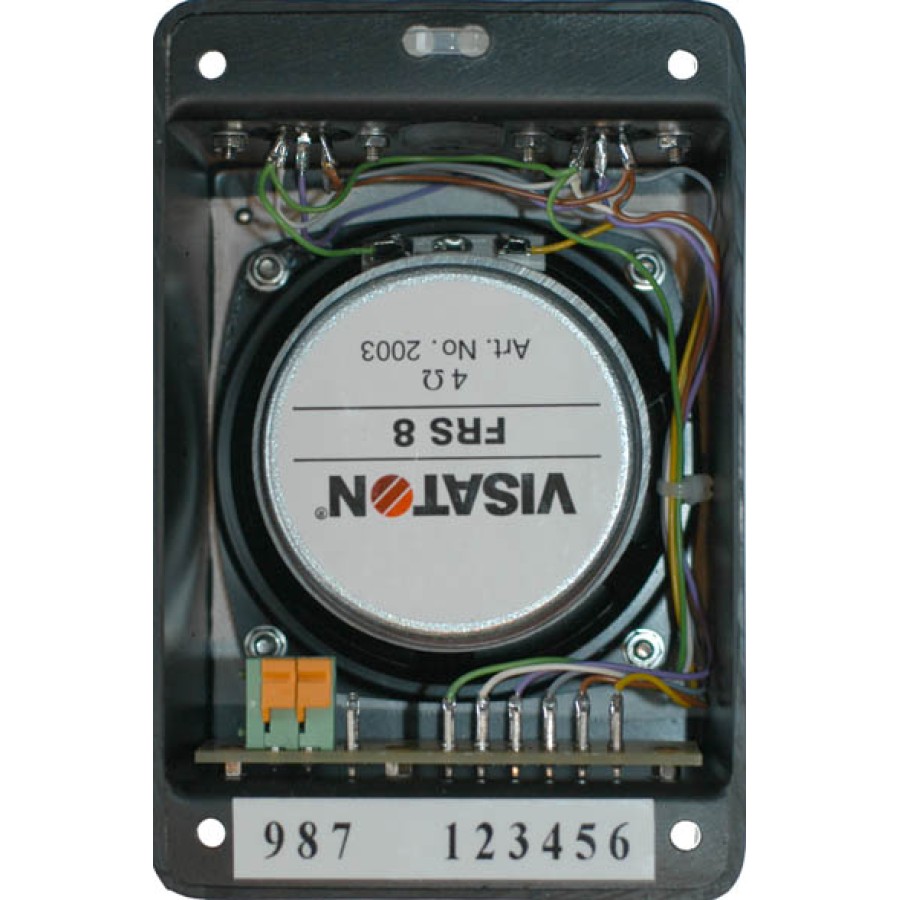

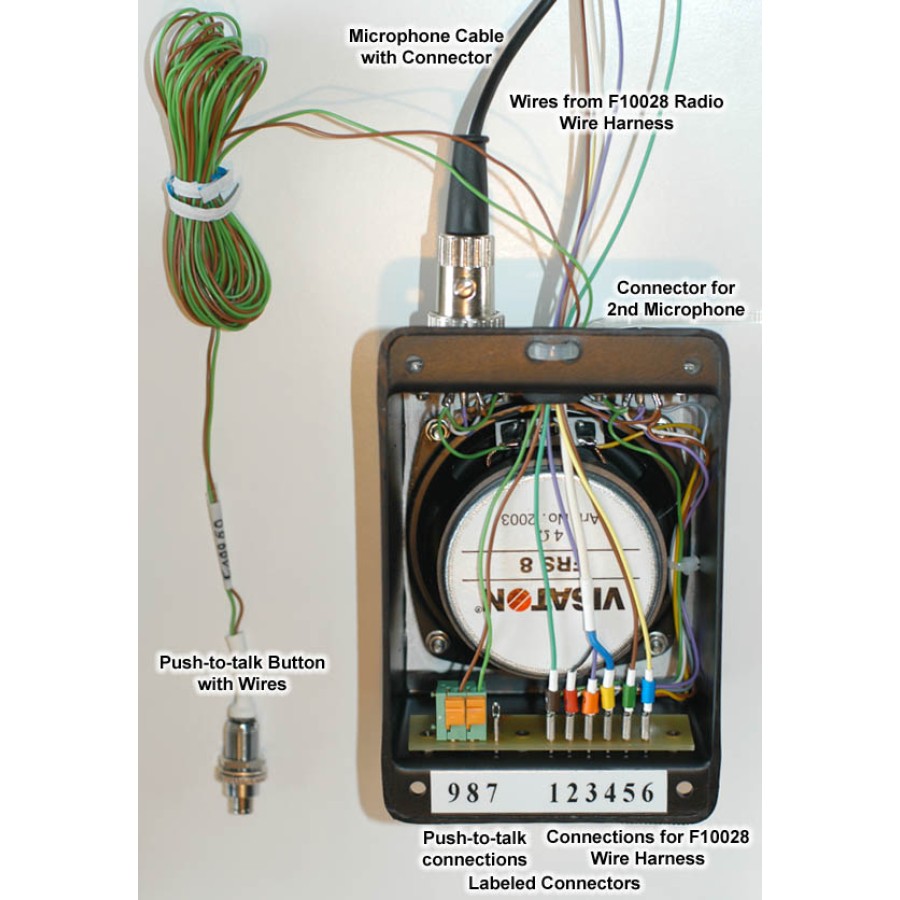

F10029 harness.  Highly recommended!  When used with the F10028 - Wiring harness this speaker box acts as a wire junction box and makes it possible to connect all accessories without any soldering or even using a screwdriver.  See photos at right.  All connection terminals are labeled to make it easy to connect everything together.

The DIN connectors for the microphone connections are the DIN-5m-240 version - as shown below. They are not compatible with the DIN-5m-180 connectors used on Becker microphones and speakers.

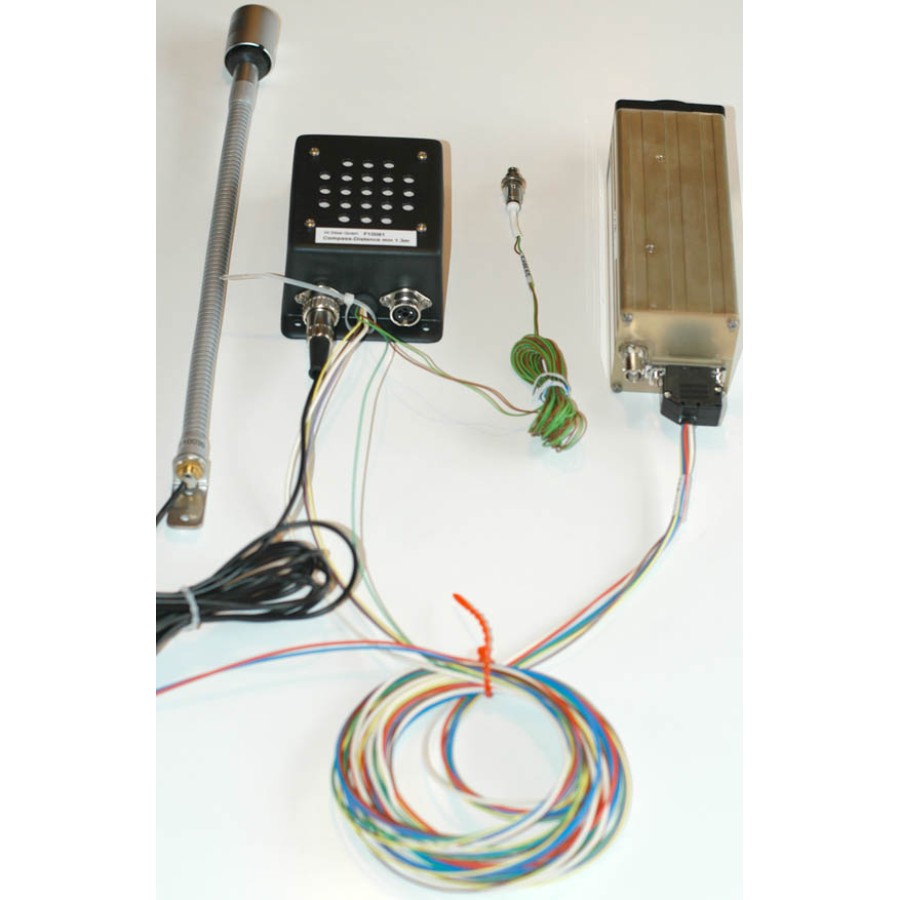

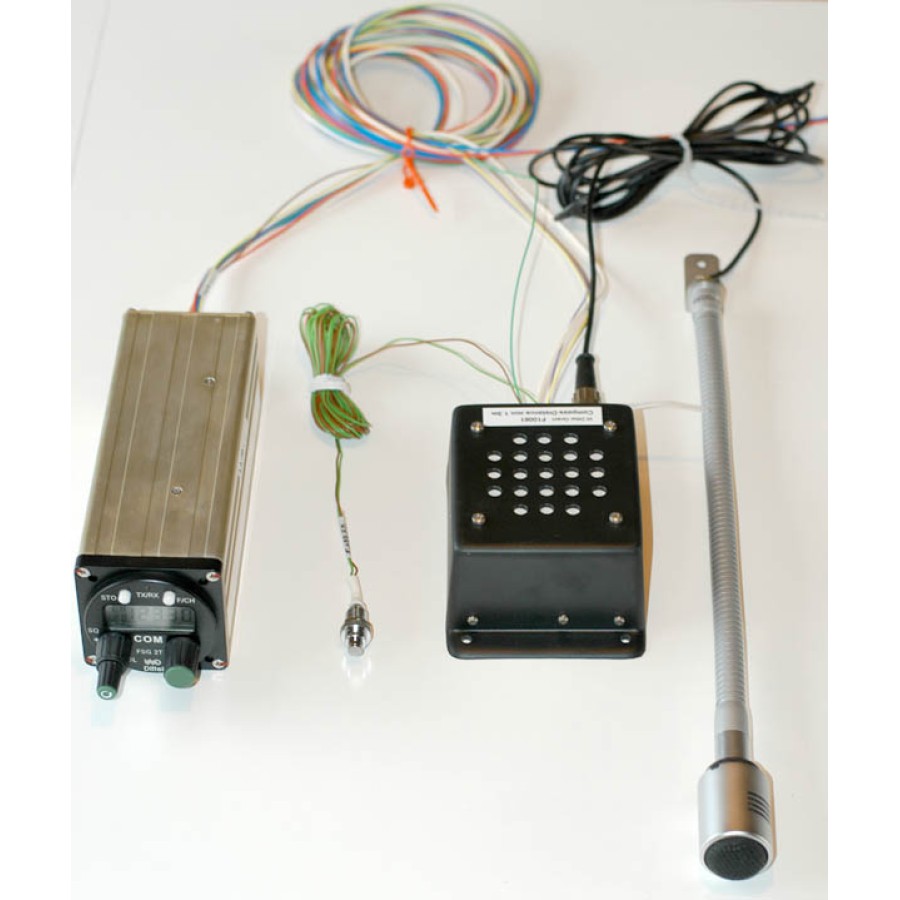

This speaker/junction box also works great with Becker AR4201, AR6201, and RT6201 radios - toghether with the Goddard:Cable-Becker-AR6201-DittelSpkr-3 and a Dittel F10039 Gooseneck Microphone or Peiker TM170-23in with DIN-5m-240.

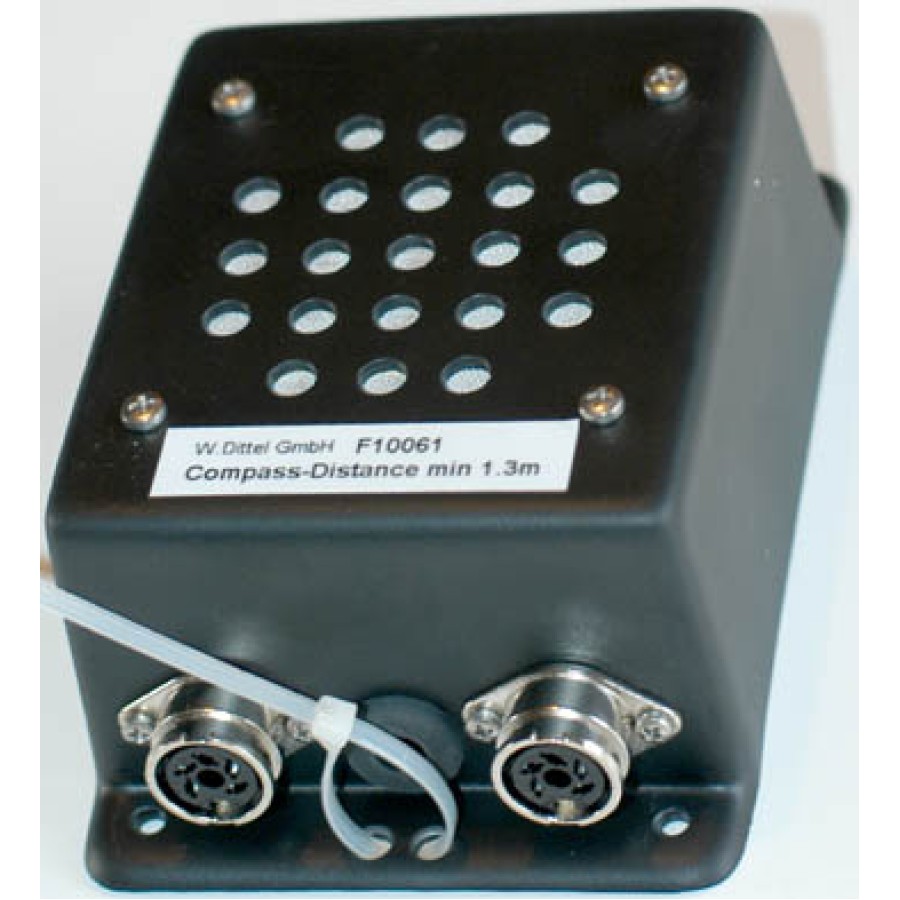

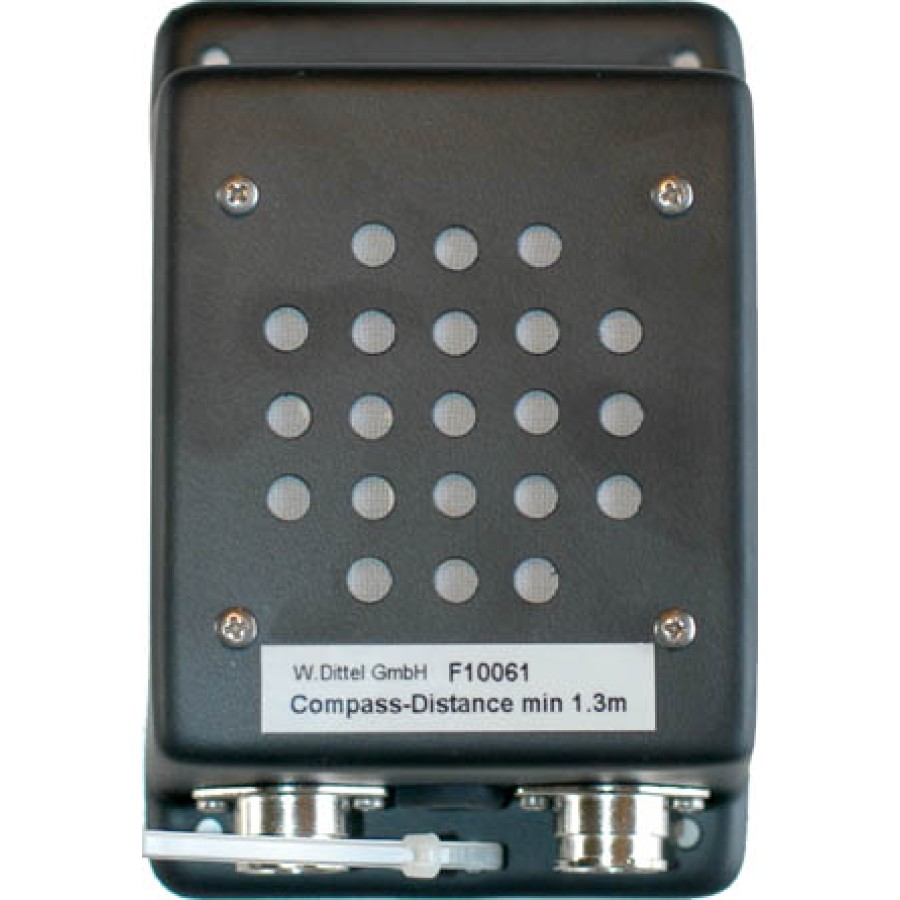

Note: This speaker has a very powerful magnet inside.  Do not mount it anywhere near a compass.  After you install it you should re-swing your compass.  The same is true for all speakers.F10029

Note: The speaker junction box uses "space" / "FASTON" connectors for connection to the radio wiring harness.  The Goddard radio wiring harness already has the female mating connectors.  If you're making your own cable, you can either solder the wires directly to the male tab/spade connectors, or you can use mating female FASTON connectors.  The female connectors should be 0.11" (2.799 mm) wide FASTON connectors.  You can see details on recommended connectors here: https://www.digikey.com/en/products/detail/te-connectivity-amp-connectors/165566-2/2054210

Dimensions: 134 mm long x 87 mm wide x 53 mm tall

Weight: 13.6 ounces (386 grams)

Wiring Details or FSG2T Install and Operation Manual


Write a review

Note: HTML is not translated!
    Bad           Good

Dittel-Speaker Junction Box

  • Brand: Dittel
  • Product Code: Dittel-F10061
  • Availability: In Stock
  • $165.00
