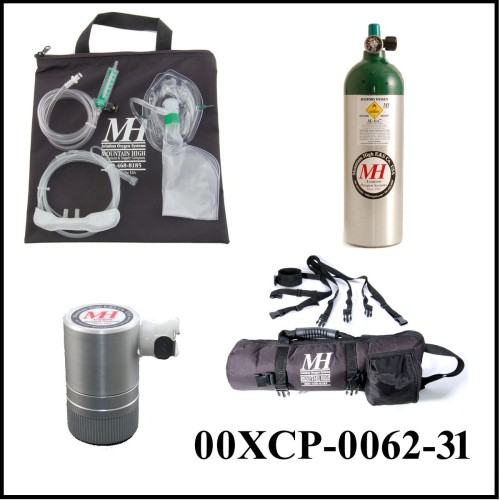

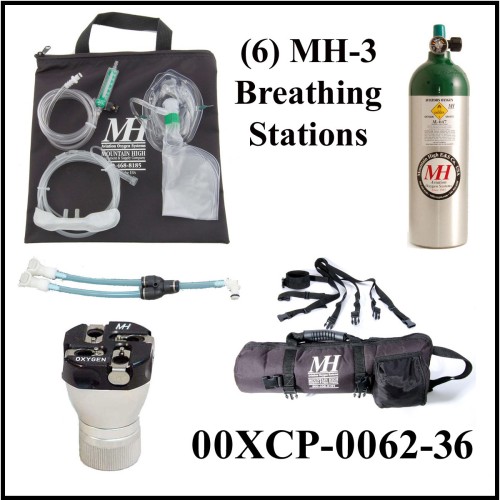

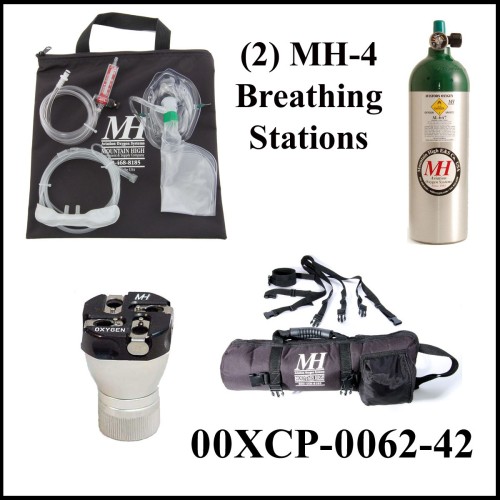

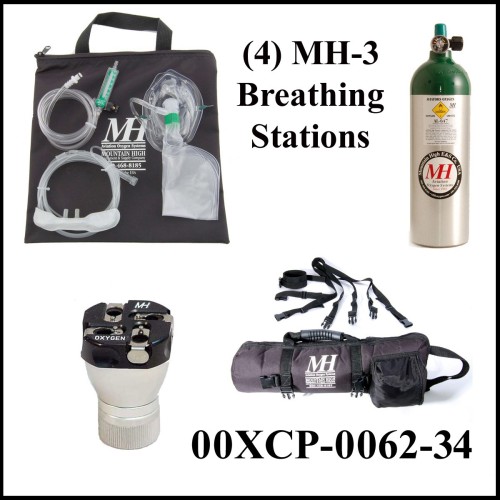

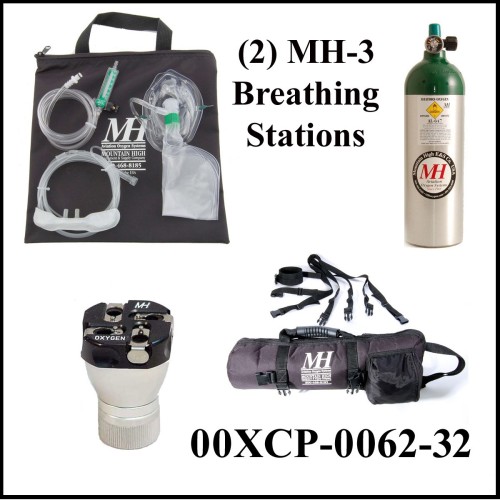

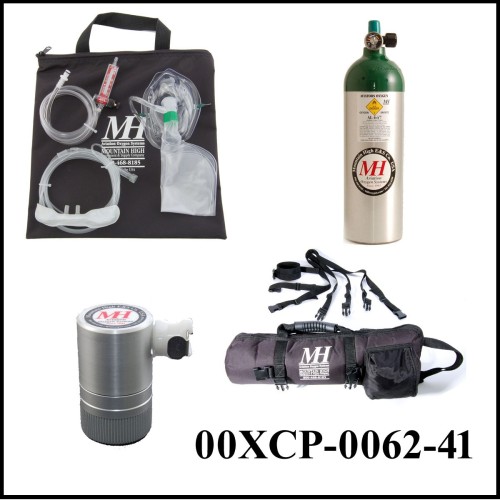

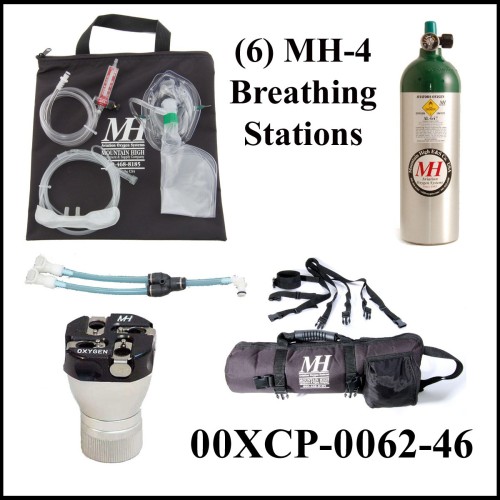

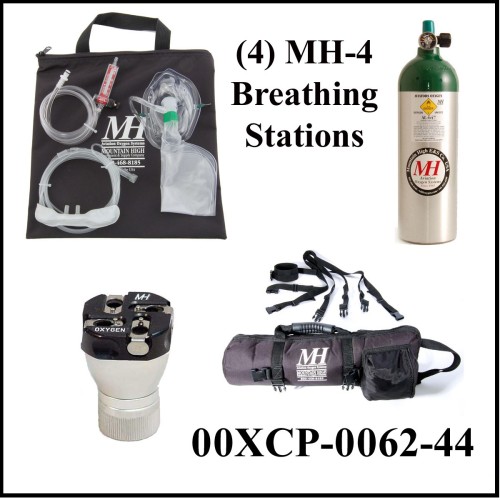

One, Two, Four, or 6 Place System with MH3 or MH4 Flowmeter(s), XCP or FPR Regulator, AL-647 (22.8 cu. ft.) Aluminum Cylinder and Full-Pack
Duration Table (Single Place) For multiple place systems, divide the duration numbers by the number of stations. | ||||||||||||||||
Cylinder | Pressure | Volume | Diameter Max. | Length Max. | Weight Empty | MH4 | MH3 or MH4 | |||||||||
|
| Duration in Hours | Duration in Hours | |||||||||||||
bar | PSI | liters | cu. ft. | cm | inch | cm | inch | Kg | lb | 10K ft | 15K ft | 18K ft | 10K ft | 15K ft | 18K ft | |
AL-647 | 124 | 1800 | 526 | 18.6 | 13.33 | 5.250 | 48.51 | 19.10 | 3.81 | 8.40 | 7.4 | 5.1 | 4.3 | 21.8 | 12.0 | 9.2 |
AL-647 | 153 | 2216 | 647 | 22.8 | 13.33 | 5.250 | 48.51 | 19.10 | 3.81 | 8.40 | 9.1 | 6.3 | 5.3 | 26.9 | 14.8 | 11.3 |
- AL-647 Aluminum Cylinder
- XCP-1P (1 Place) or FPR (4 Place) regulator (CGA-540 type)
- MH3 or MH4 Flowmeter
- Holster Pack for Cylinder
Included:
Not Included:
- Oxygen - The oxygen tank is empty.
To add extra flow stations to any of the 2-place O2D2-2G systems below, add $100 for the FPR 4-place regulator upgrade.
See our Full-Pack cylinder harness & carry-caddy for these cylinders. Also see CMK cylinder hold-down kits.
Also, the optional ALPS FaceMask with or without microphone is the perfect addition to any EDS system.
MH-00XCP-0062-xx
- Brand: Mountain High
- Product Code: XCP-647-xP-MHx-F
- Availability: In Stock
-
$749.00
