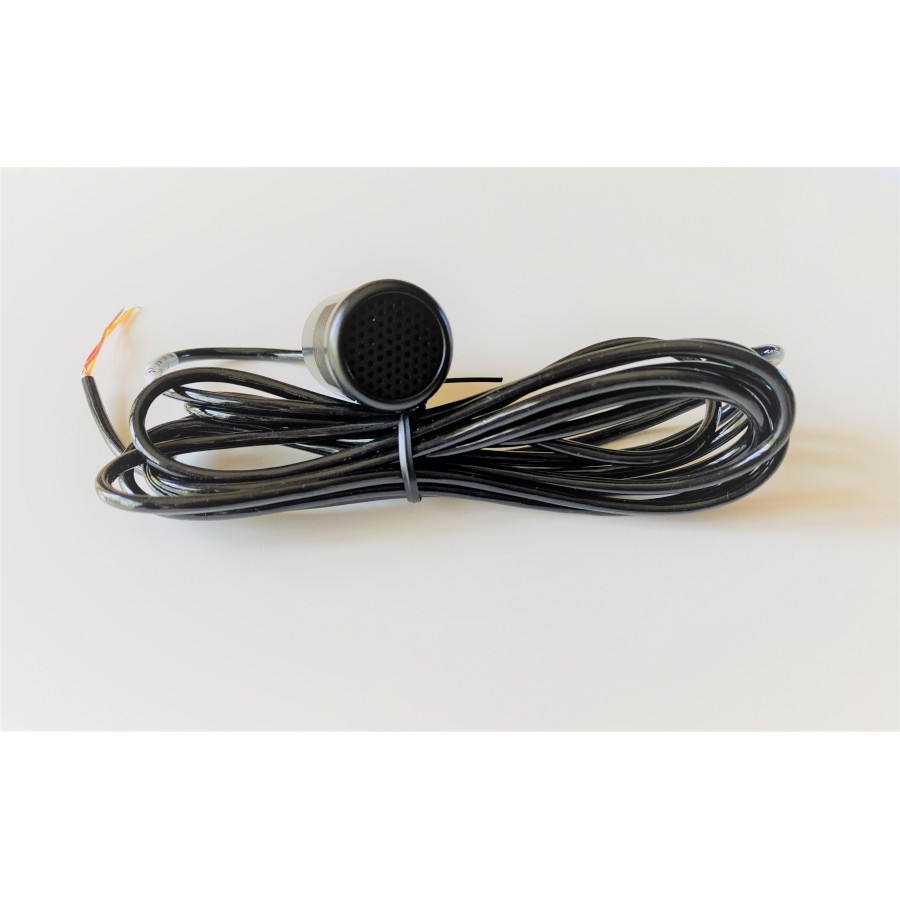

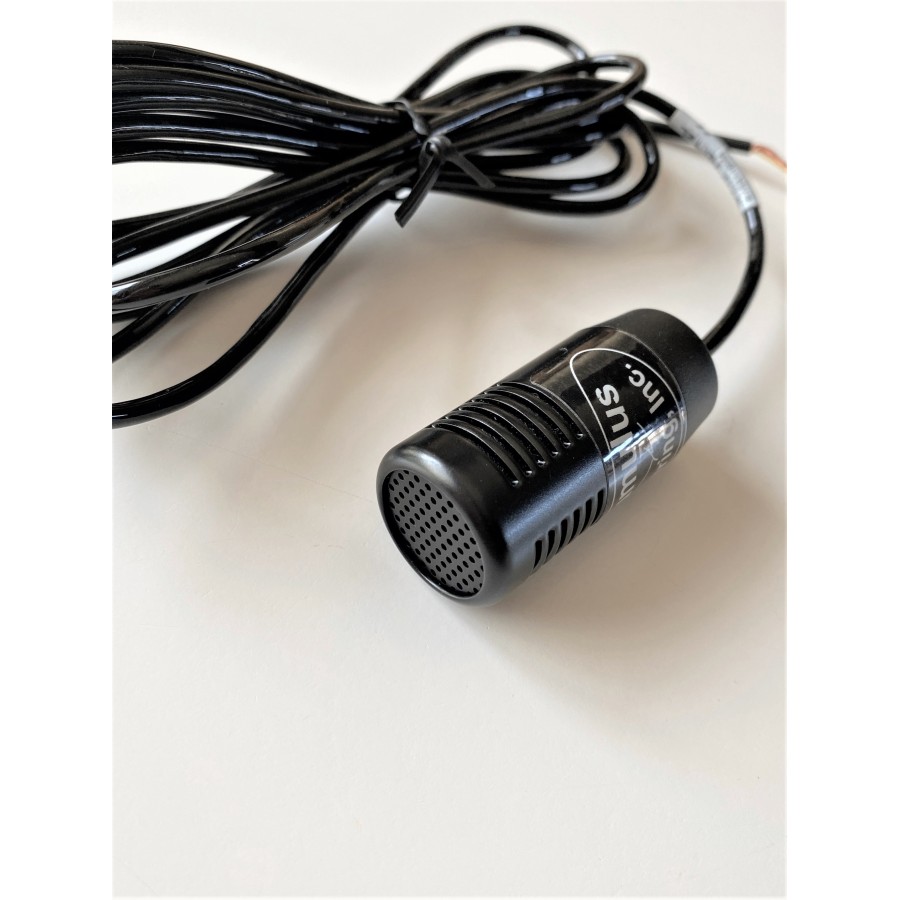

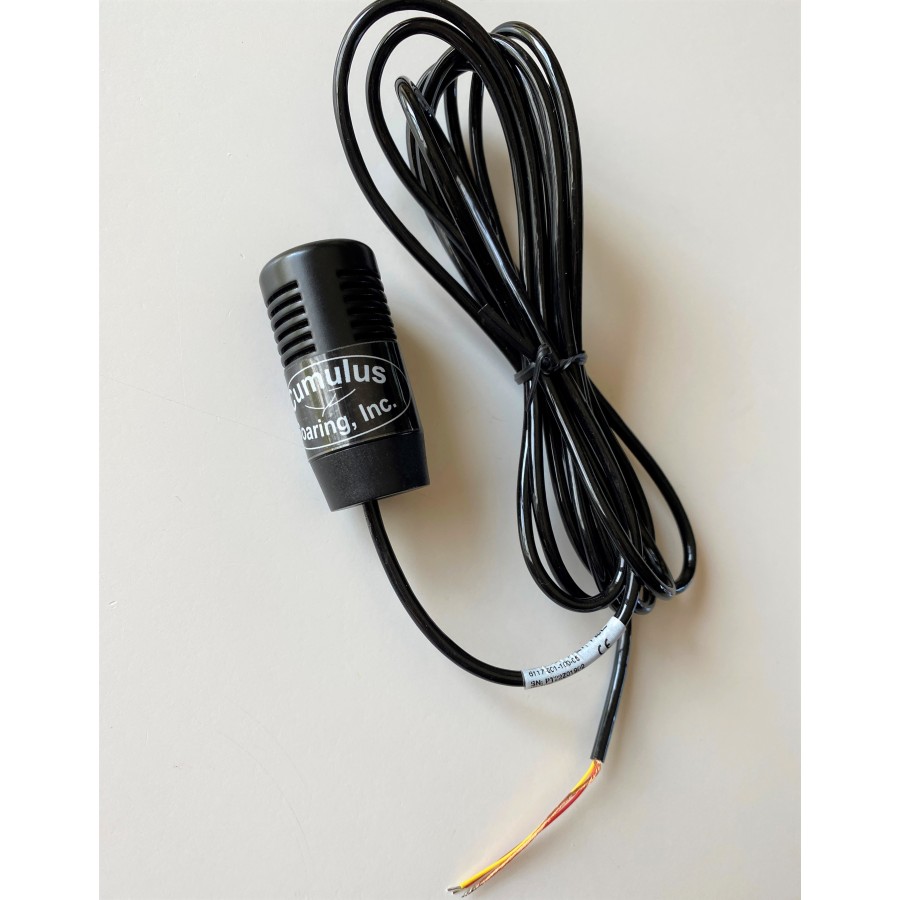

TM170 Microphone Head
This is a great dynamic microphone for use with Becker, Walter Dittel,
or TQ KRT2 aircraft radios. The sound quality is excellent.

This microphone does not work with XCOM, Flightline, Microair, or Trig radios. The ME510 works with those radios.

Dimensions of microphone head
Length: 49.5 mm (1.95")
Diameter: 24 mm (0.84")

Cable length (from base of microphone head): 67 inches (1.7 m)

Connections:
- Red Wire: Mic+
- Yellow Wire: Mic- or Mic Ground
- Braid: Shield (connect to Mic- or Mic Ground)

Microphone Technical Specifications

Write a review

Note: HTML is not translated!
    Bad           Good

Peiker-TM170

  • Brand: Peiker Acustic
  • Product Code: Peiker-TM170
  • Availability: In Stock
  • $170.00
