LXNAV ADI2 - Airdata Indicator

 *** Price does not include tariff.

 *** Introductory Price - Valid until January 14, 2026
 - $1070 (for both the 57mm and 80mm versions)

Starting January 15, 2026, the pricing below applies:
 - ADI2-57mm: $1120
 - ADI2-80mm: $1190

SALE: Now that LXNAV has just announced this new ADI2.  That makes the original ADI units in my stock somewhat obsolete.  However, that leads to a great deal for you.  Note that the ADI does a few things that that ADI2 can't.
Details: https://www.cumulus-soaring.com/store/lxnav-adi

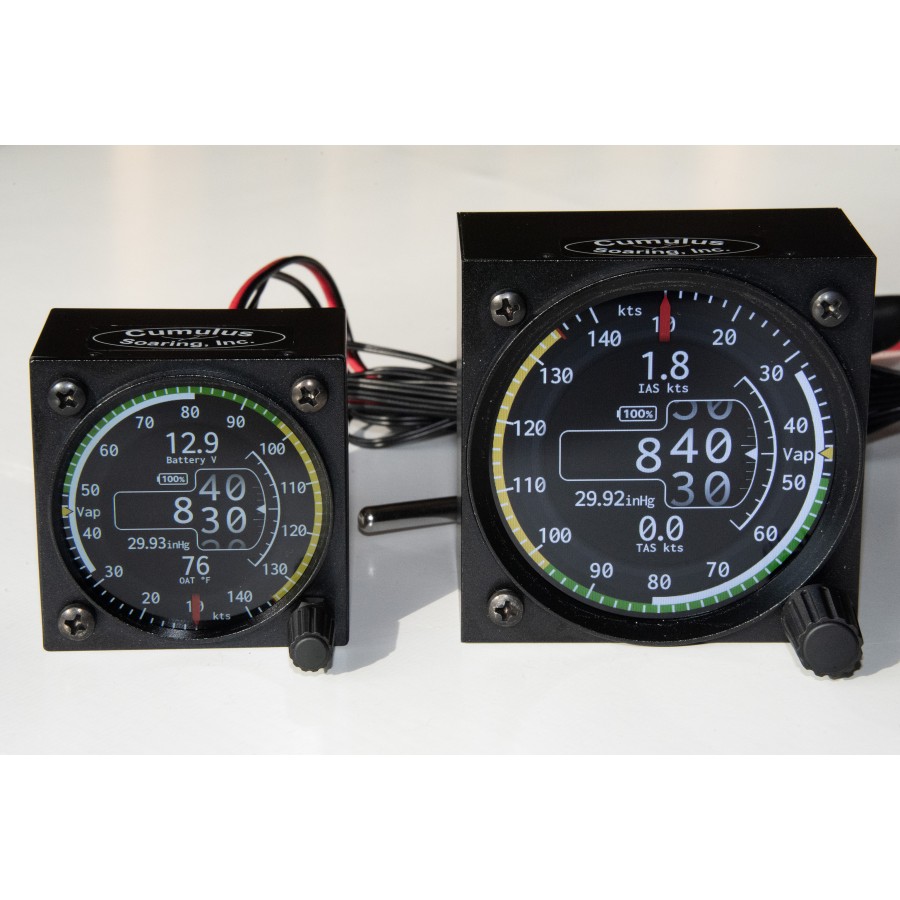

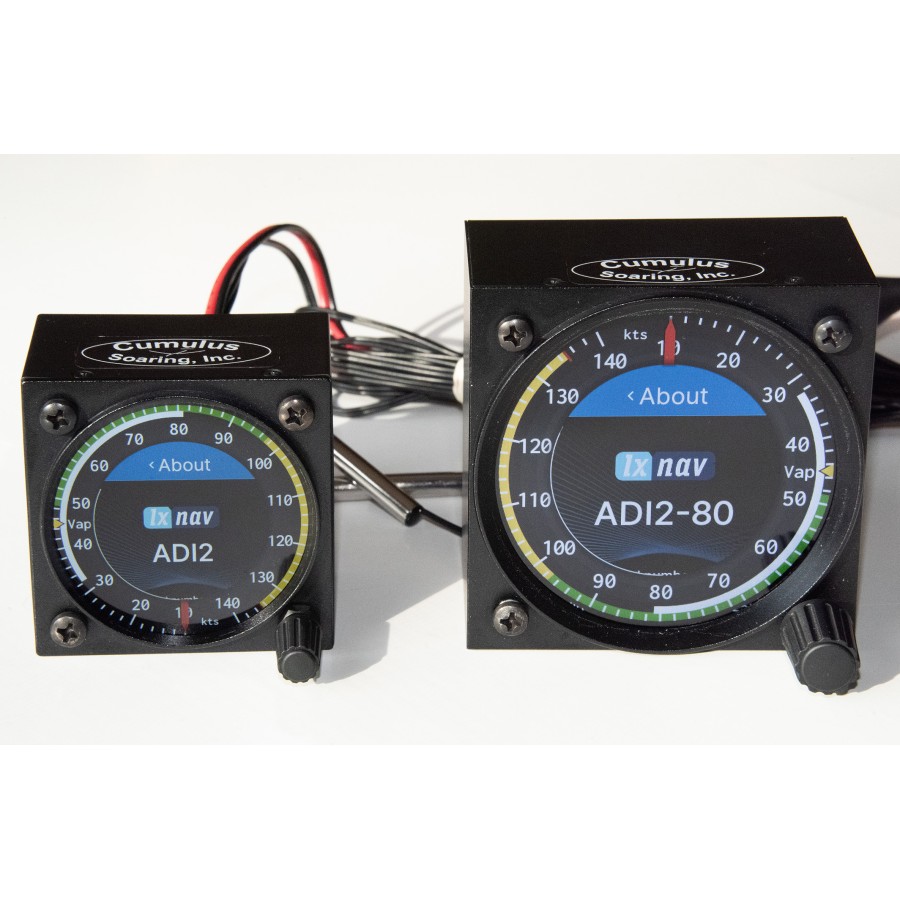

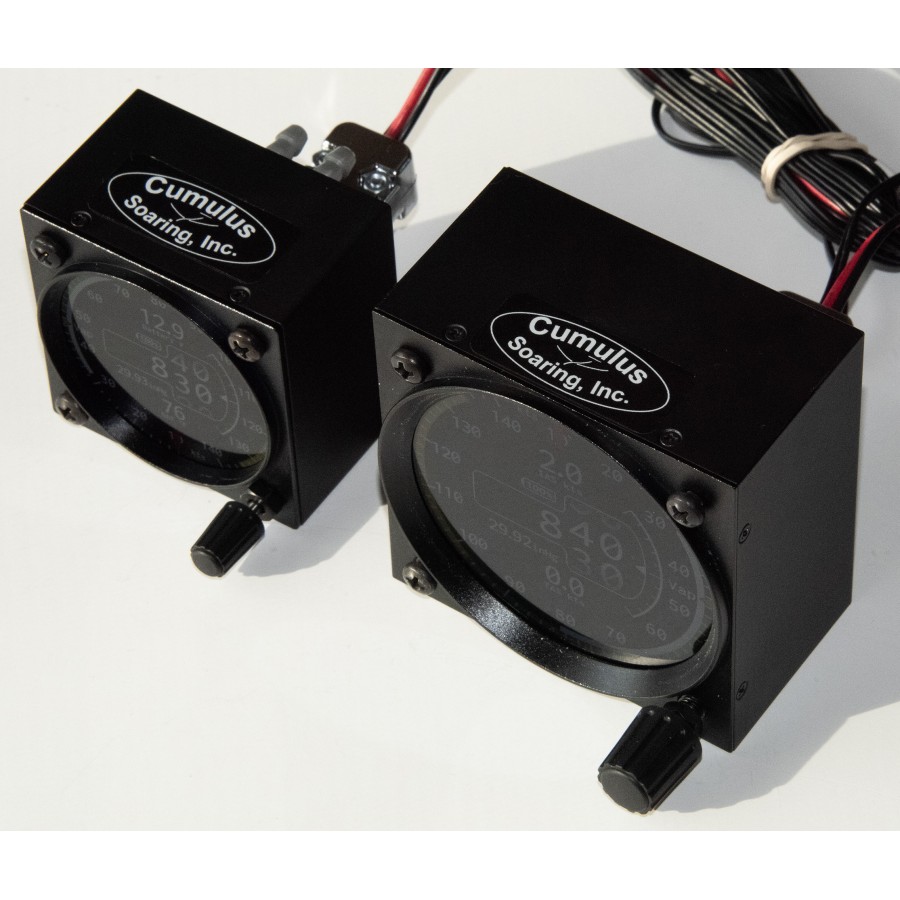

LXNAV’s first round display, built in standard 57 mm and 80 mm sizes, features an integrated OAT sensor and a built-in backup battery providing up to 3 hours of operation.

EASA Certified – STC for 494 Aircraft Types & Models

Overview

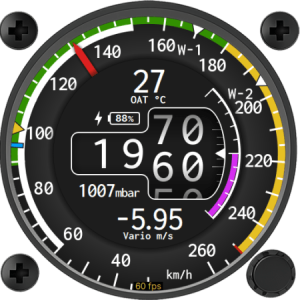

This is a fantastic looking airspeed indicator and altimeter with OAT sensor and simple variometer display. Note that there is no way to connect a Total Energy probe to the ADI2, so the vario is not TE compensated.

Features:

• Airspeed indicator
• Altimeter
• Vario (not TE compensated - no TE port on unit)

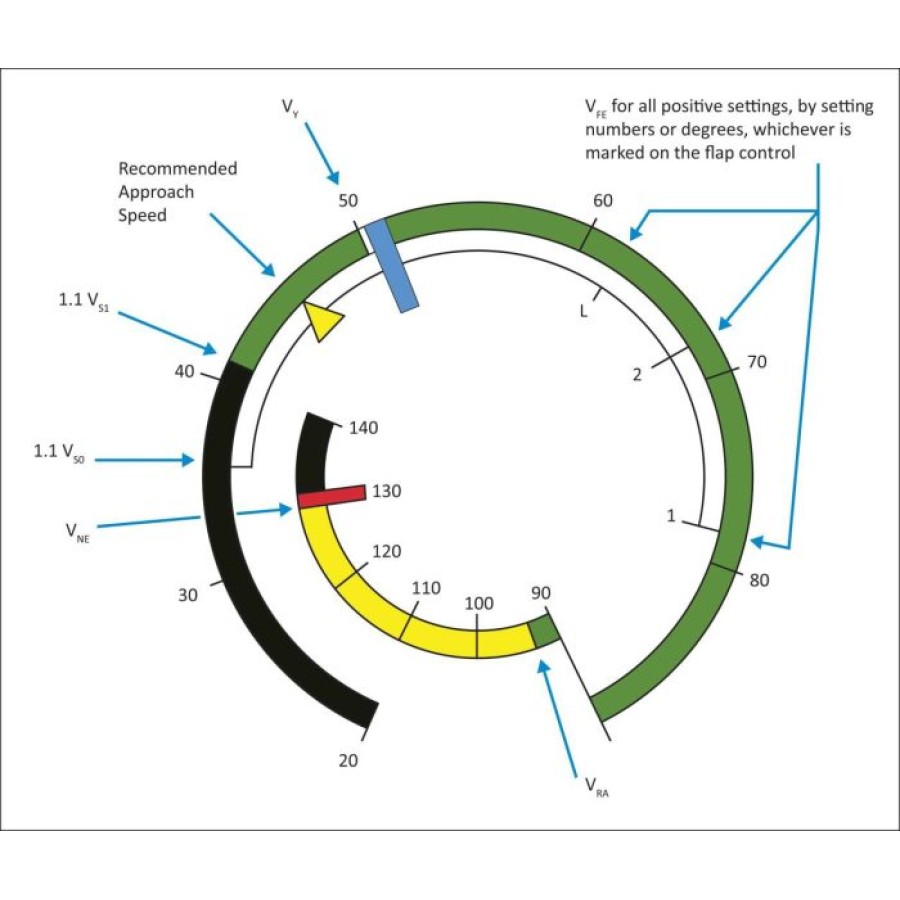

• Configurable color airspeed markings and units
• 3 hour backup battery
• Very bright display
• OAT (outside air temperature) sensor
• Built-in Wi-Fi - for software updates only
• Airspeed dial zero can be at the top (12 o'clock) or bottom (6 o'clock)

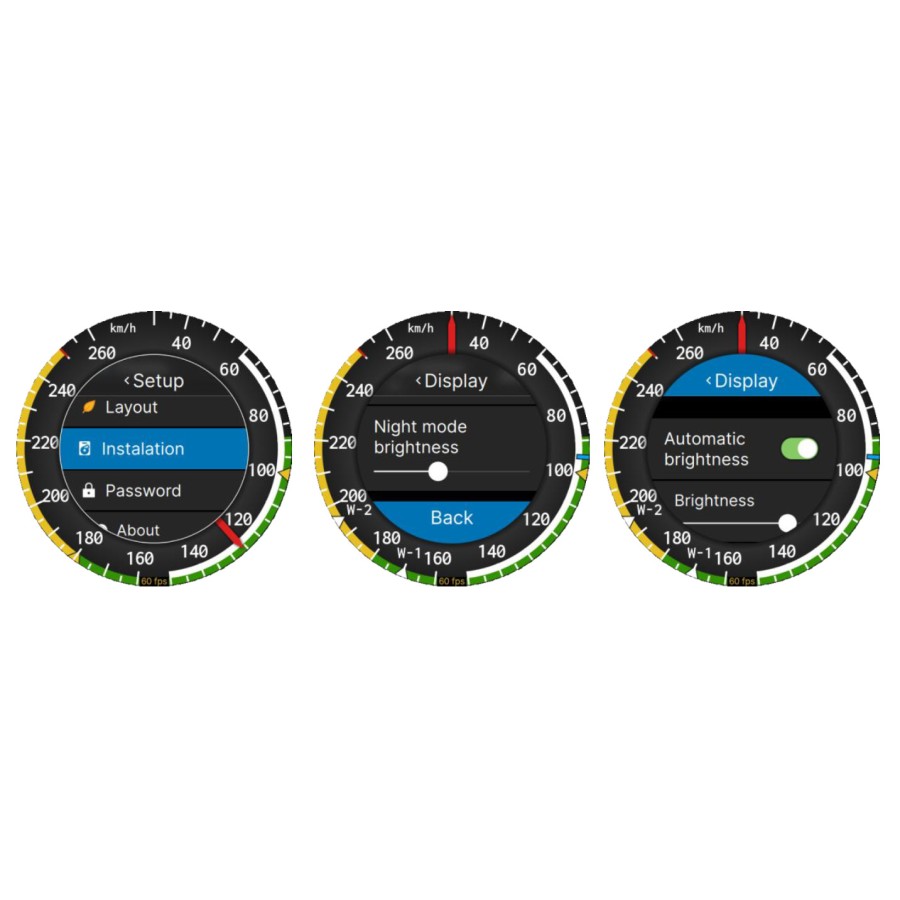

• Personalize the dial, background and text colors:

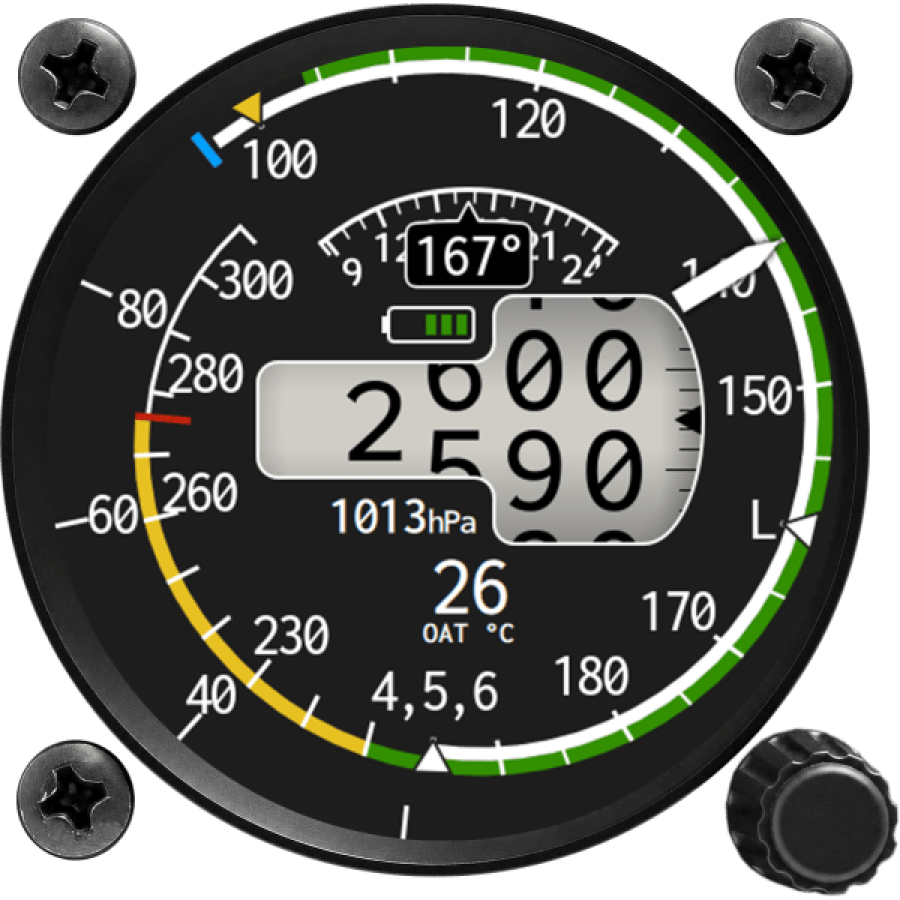

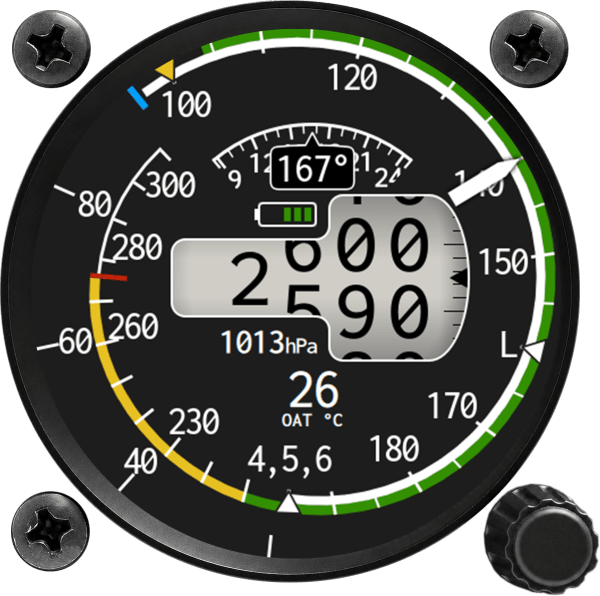

  • Black background with white markings and text

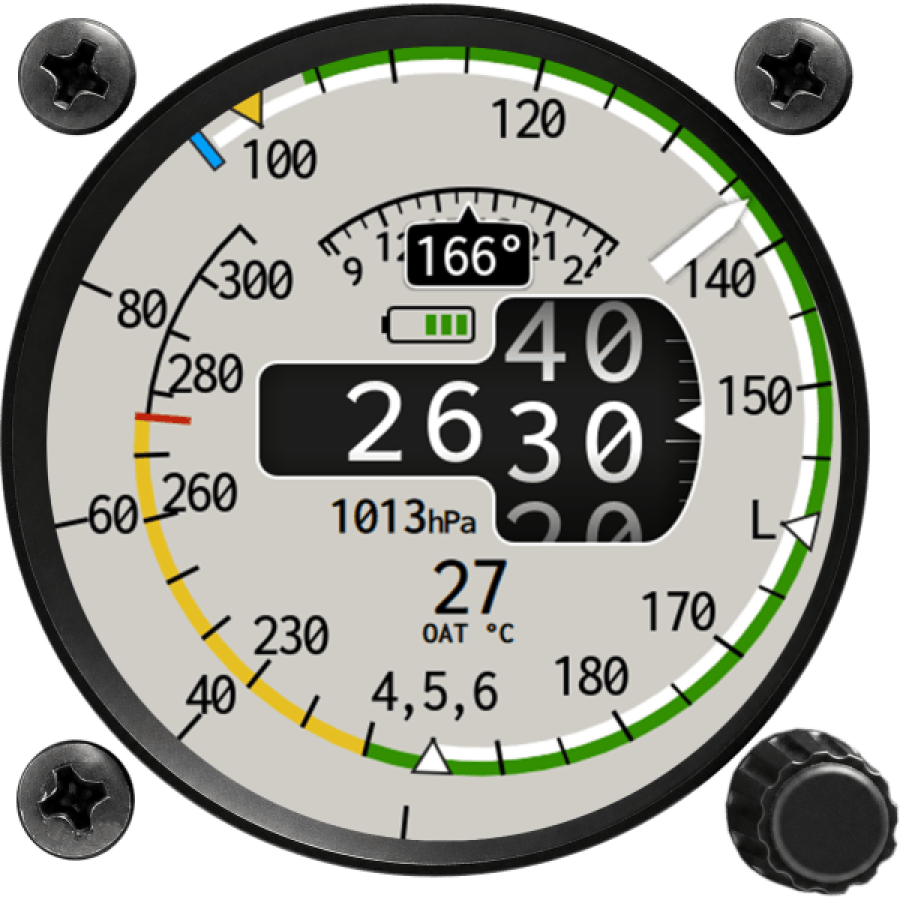

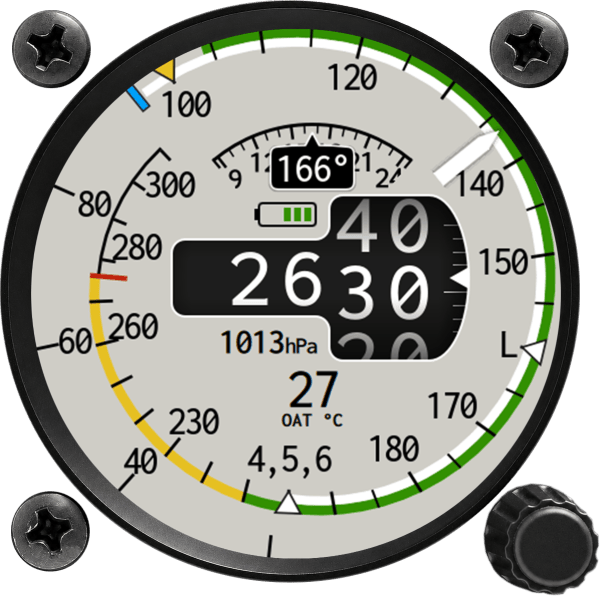

  • White/grey background with black markings and text

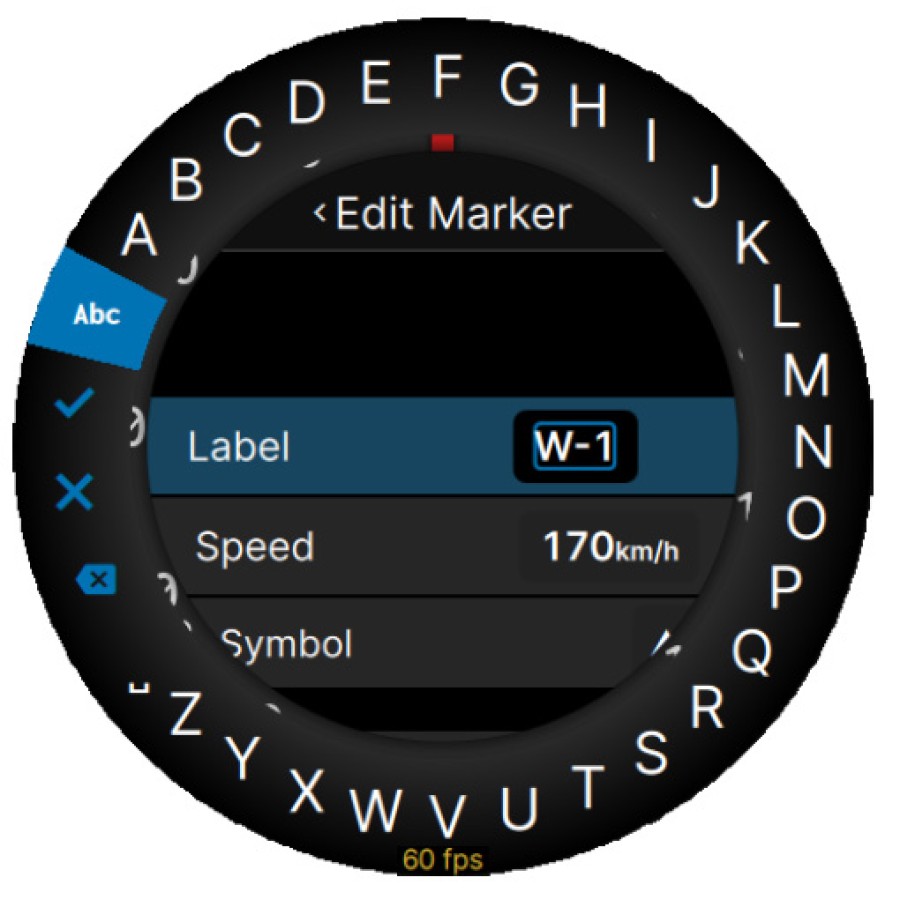

User Interface

• Rotary knob with push-button function

Airspeed
The ADI2 offers three true airspeed calculation modes.

• Altitude Only provides a standard fallback when no OAT probe is available
• Altitude + OAT delivers enhanced accuracy by correcting for density changes
• Altitude + OAT + Compressibility ensures top-level precision for faster aircraft by factoring in air compressibility effects.

Altimeter
The ADI2 features a high-precision 24-bit barometric sensor with a 10–1200 hPa range, delivering altitude resolution down to 10 cm for exceptionally accurate atmospheric and elevation measurements. QNH can be adjusted quickly and intuitively using the rotary knob.

Variometer
The ADI2 includes a customizable variometer, featuring adjustable vario filter settings for fine-tuned response and configurable vertical speed units (fpm, m/s, or knots).

• The ADI2 has a larger display - fully round (not clipped on the side) using all the space in the instrument hole.
• The ADI2 has EASA approvals and reciprocal FAA approvals.  The original ADI doesn't.
• The ADI2 has a built-in backup battery with up to 3 hours of operation
• The original ADI has altitude warnings, the ADI2 doesn't.
• The original ADI could be configured for altitude dependent Vne.  The ADI2 can't, because certification wouldn't be possible with that functionality.
• The original ADI is much less expensive than the ADI2 - especially now that they are on-sale.

Included:

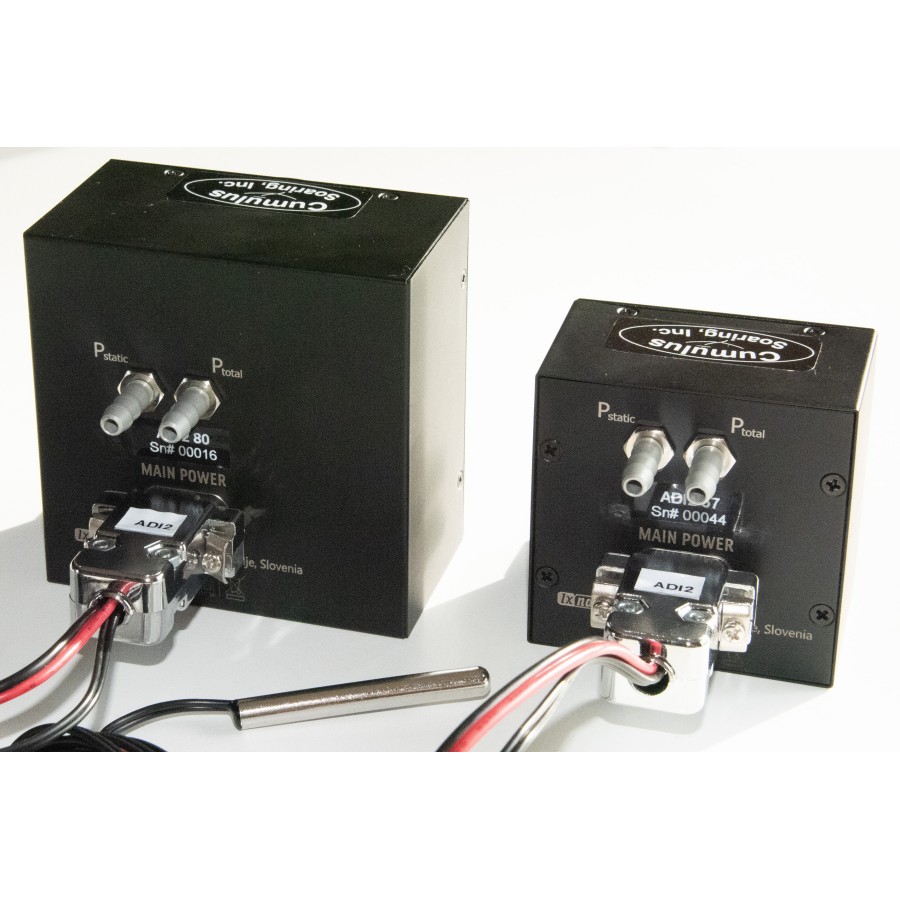

• Power Cable with DB-9 connector
  • 12V Power wires
  • OAT (outside air temperature probe) - attached to main wiring harness
• Mounting screws (M4)
• Printed manual (provided by Cumulus Soaring, Inc.)

Specifications

Ranges:

• IAS range: 370km/h (200kts)
• Altitude range: 9000m (29500ft)

ADI2-57

• Power input 8-32V DC
• Consumption 90-140mA@12V
• Weight 195g

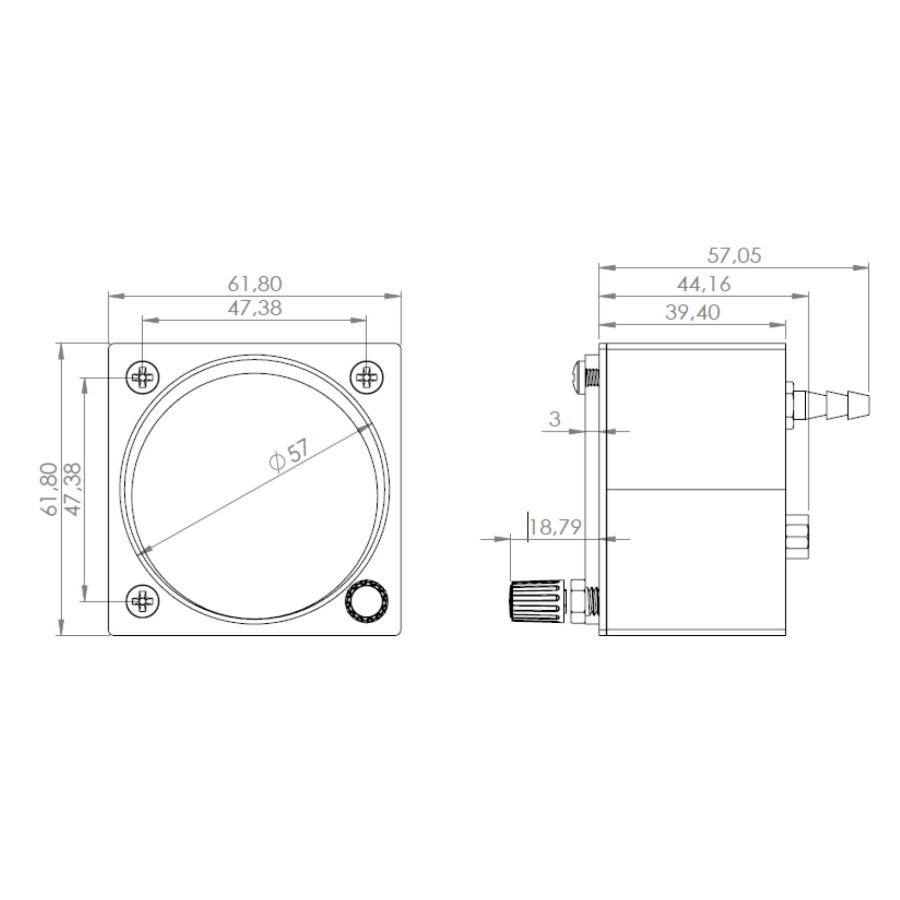

• Dimensions:
  • Instrument Hole Size: 57 mm (2.25’’)
  • Overall Unit Size: 62 x 62 x 40 mm

ADI2-80

• Power input 8-32V DC
• Consumption 90-140mA@12V
• Weight 195g
• Dimensions:
  • Instrument Hole Size: 80 mm (3.15’’)
  • Overall Unit Size: 80 x 81 x 45 mm

Recommended Fuse: 1A

Manuals
Go to https://gliding.lxnav.com/lxdownloads/manuals/

• User Manual
• Installation Manual - Includes important information regarding EASA and FAA approvals.

Thank You
LXNAV gratefully acknowledges Dipl. Ing. Alexander Schulz for conducting the certification.
