Panel-Mount Kit for PowerFLARM Portable - Tall Version

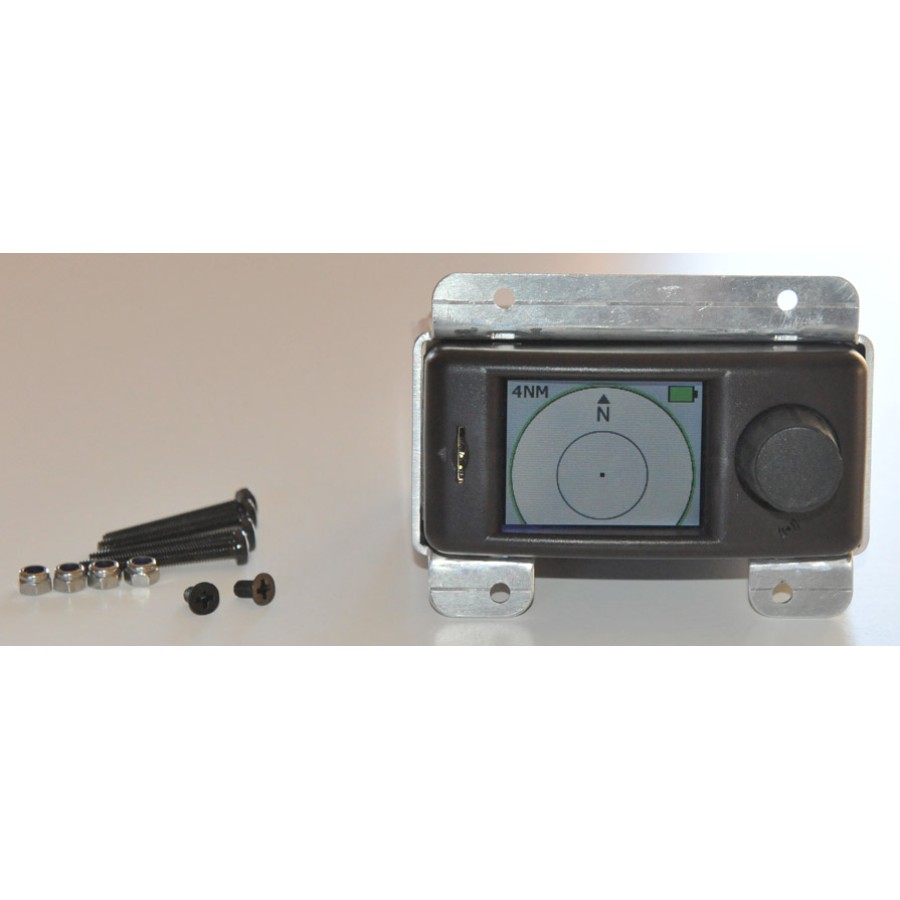

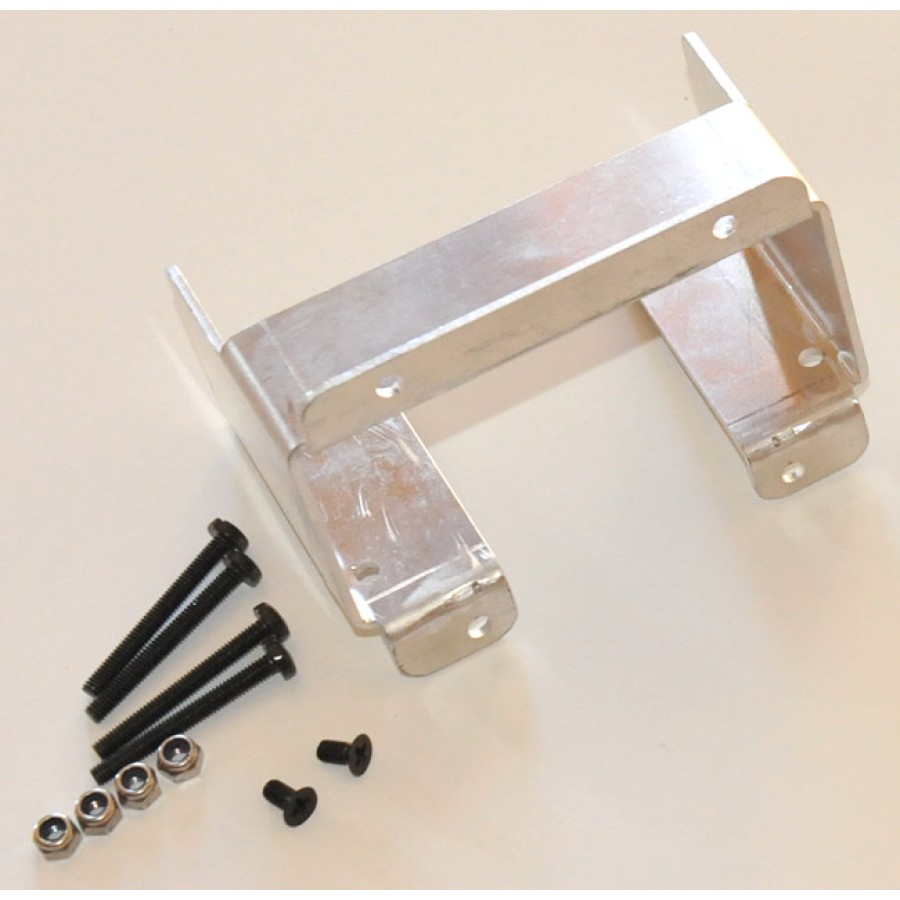

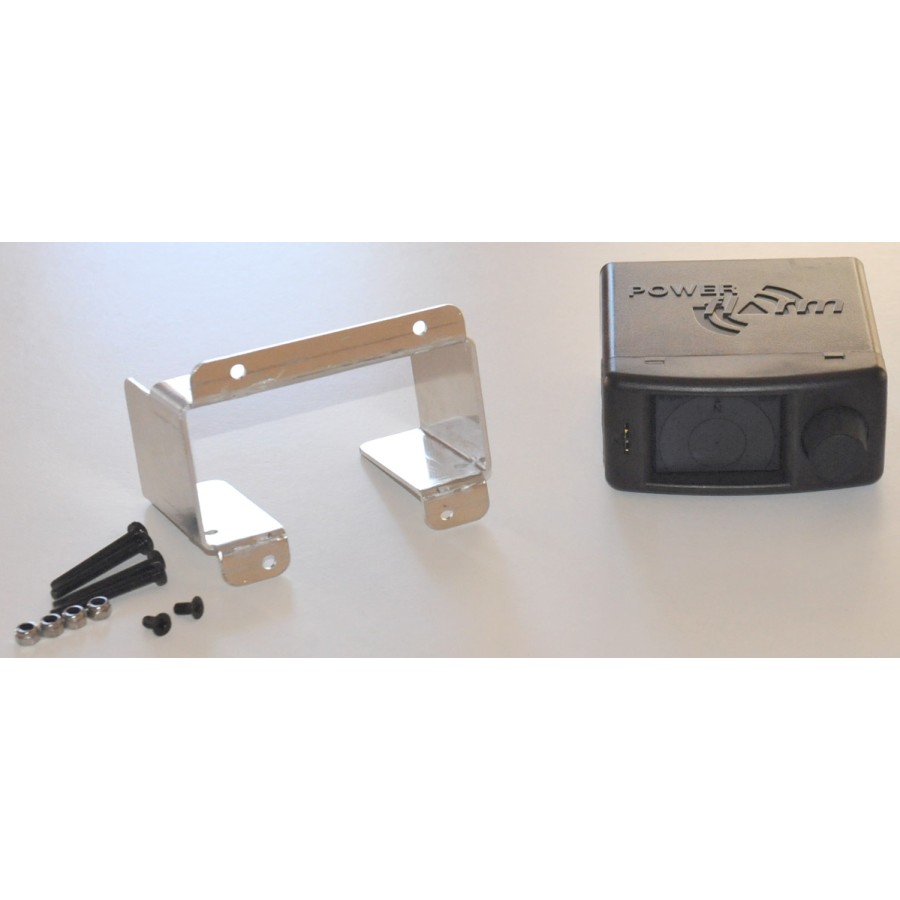

This rugged yet lightweight aluminum mounting bracket makes it easy to mount a PowerFLARM Portable in the instrument panel.  The 4 mounting holes are spaced to match a standard 3 1/8" (80 mm) instrument hole.  They are equally spaced on an 89 mm bolt circle.  However, the overall width may be wider than other 80 mm size instruments (see dimensions below).

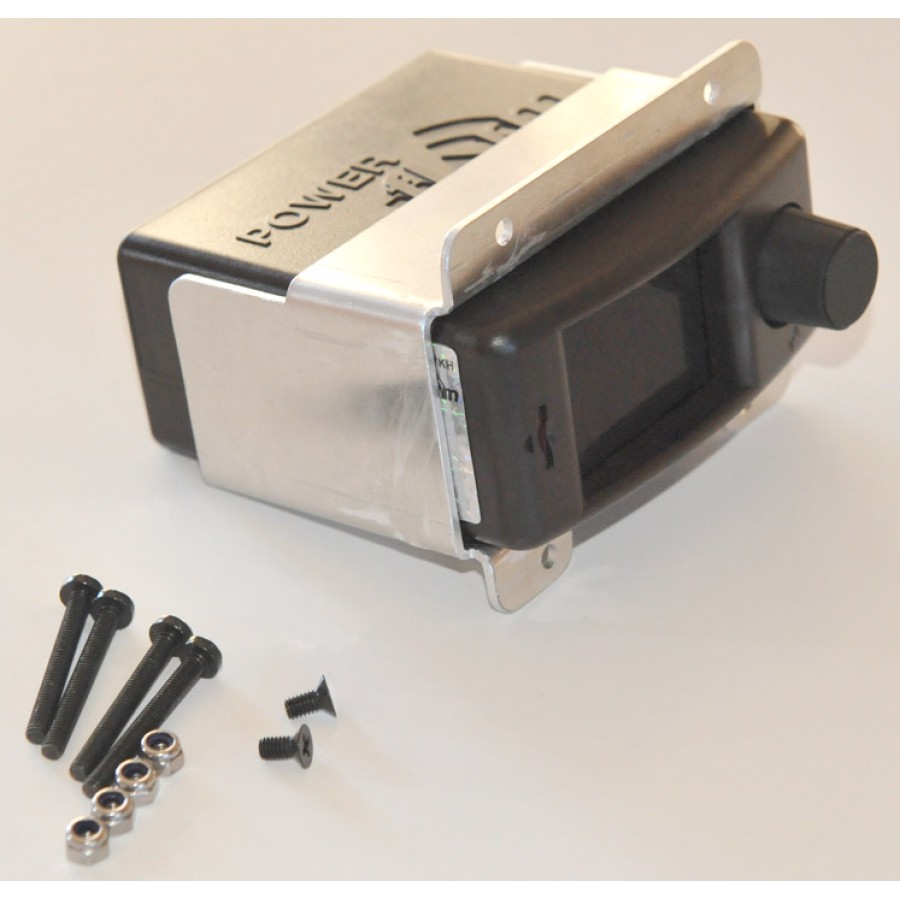

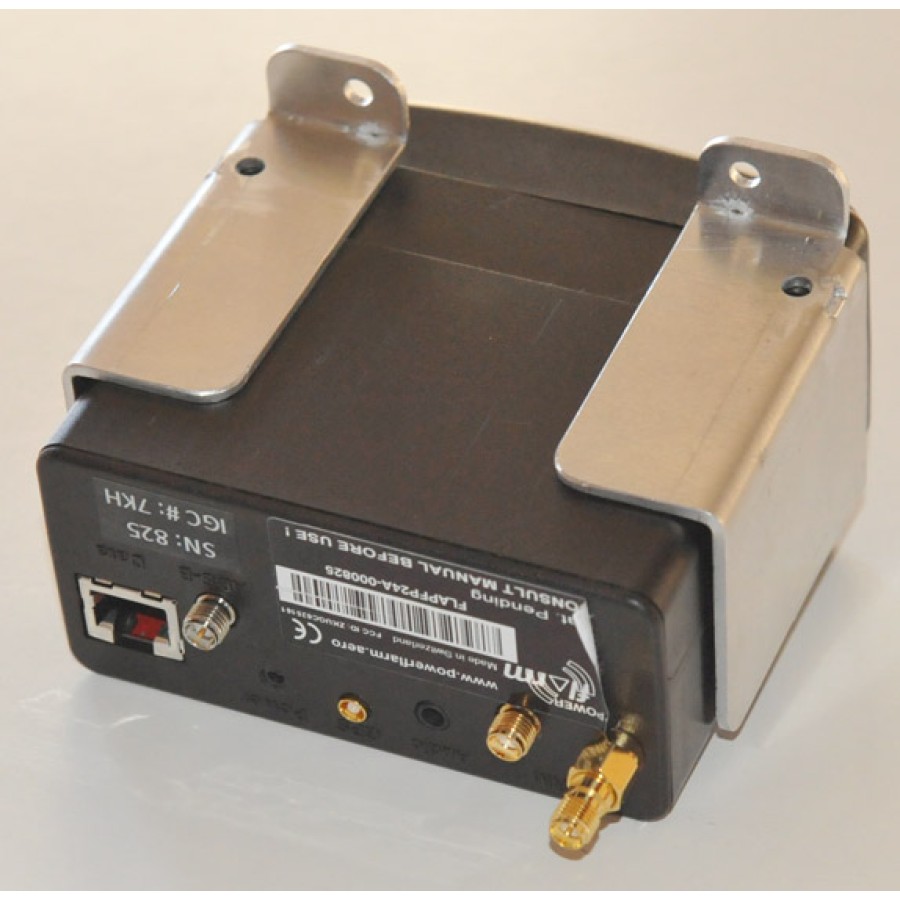

Two screws are provided for attaching the mount to the bottom of the PowerFLARM Portable using it's built-in threaded mounting holes.  Four screws and nylon locknuts are provided for attaching the mounting adapter to the instrument panel.

Note: You will want to remotely mount the PowerFLARM's FLARM and ADS-B/Transponder antennas using an extension cable.  I will have them in stock soon in several lengths.  Since the GPS antenna is built-into the PowerFLARM, and it may not get good reception if mounted under other instruments in your panel, you may need to buy a remote GPS antenna.  I will stock those soon.  If the PowerFLARM is mounted at the top of the panel - you shouldn't need a remote GPS antenna and may not need to remote mount the FLARM and ADS-B/Transponder antennas - if you make a holes for them to stick up through the top of the instrument panel cover.

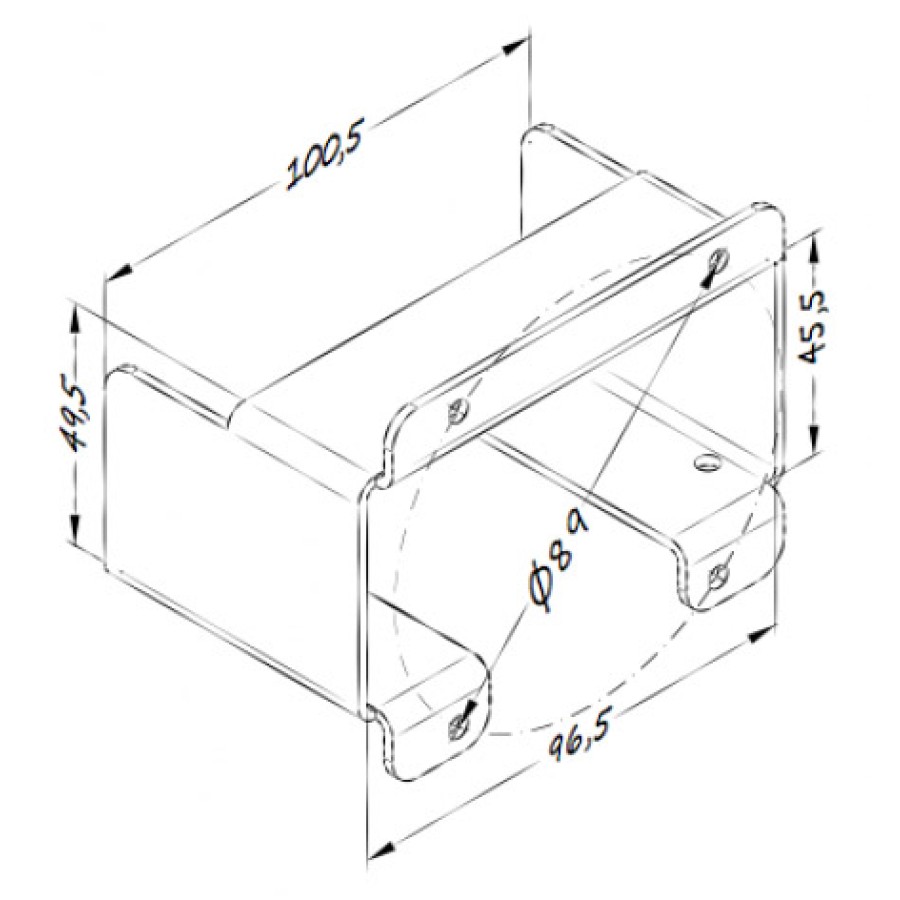

Dimensions:
Width: 101 mm (3.98 in)
Height: 76 mm (2.99 in)
Depth: 64 mm (2.52 in)
Weight: 91 g (3.2 oz)

Write a review

Note: HTML is not translated!
    Bad           Good

Mount-PFLARM-Portable-Tall

  • Brand: Air Avionics
  • Product Code: Mount-PFLARM-Portable-Tall
  • Availability: In Stock
  • $89.00
  • $44.00
