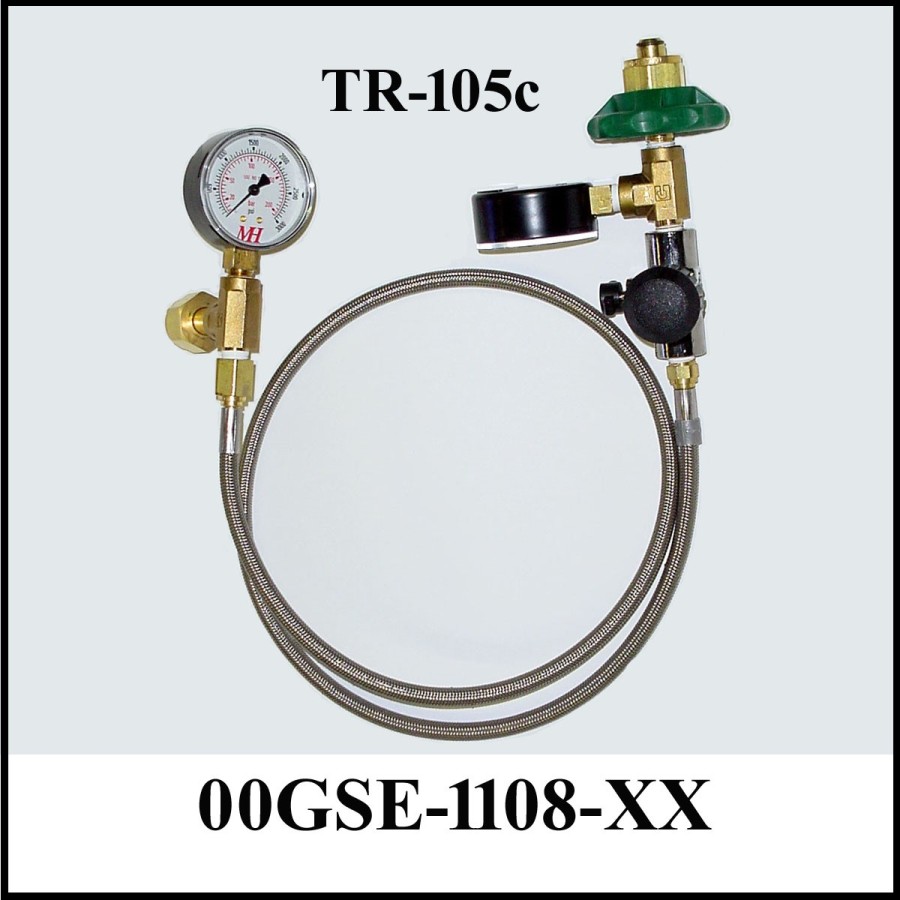

TR-105c CGA-540 to CGA-540 Oxygen Transfiller Device with O-Ring Fittings, 2 Gauges and Bleed Valve - Best


The TR-105c oxygen cylinder transfiller is a dual gauge version of our TR-95c. The TR-105c has an additional gauge at the slave cylinder or aircraft side so that you can pre-check and monitor cylinders being filled. The gauge is great for monitoring the transfilling process.
Standard length is 48 inches (121.92 cm). Custom lengths available on request.

Length Options

  • -04, 4 feet (1.22 m), $589
  • -06, 6 feet (1.83 m), $599
  • -08  8 feet (2.44 m), $625
  • -10  10 feet 3.05 m), $645
  • -12, 12 feet (3.67 m), $679

The TR-95c, available in CGA-540 or DIN-477,  provides economical oxygen transfilling for soaring and flying clubs where frequent servicing of cylinders occurs. Both connecting ends have O-ring seals for a positive air-tight fit. The pressure/contents gauge shows how much oxygen remains in the master supply cylinder.

The TR-95c  master transfer (regulating) valve  controls the flow of oxygen into the cylinder or aircraft being filled. A separate bleed valve allows bleeding only the fittings (rather than the entire service line) with almost no loss of valuable oxygen. The DIN-477 version of our TR-95c transfiller has the same features  except that it is compatible with DIN-477-9 Swiss/Euro systems. A dual gauge version of this transfiller is also available (TR-105c).

Standard length is 48 inches (121.92 cm). Custom lengths are available on request.

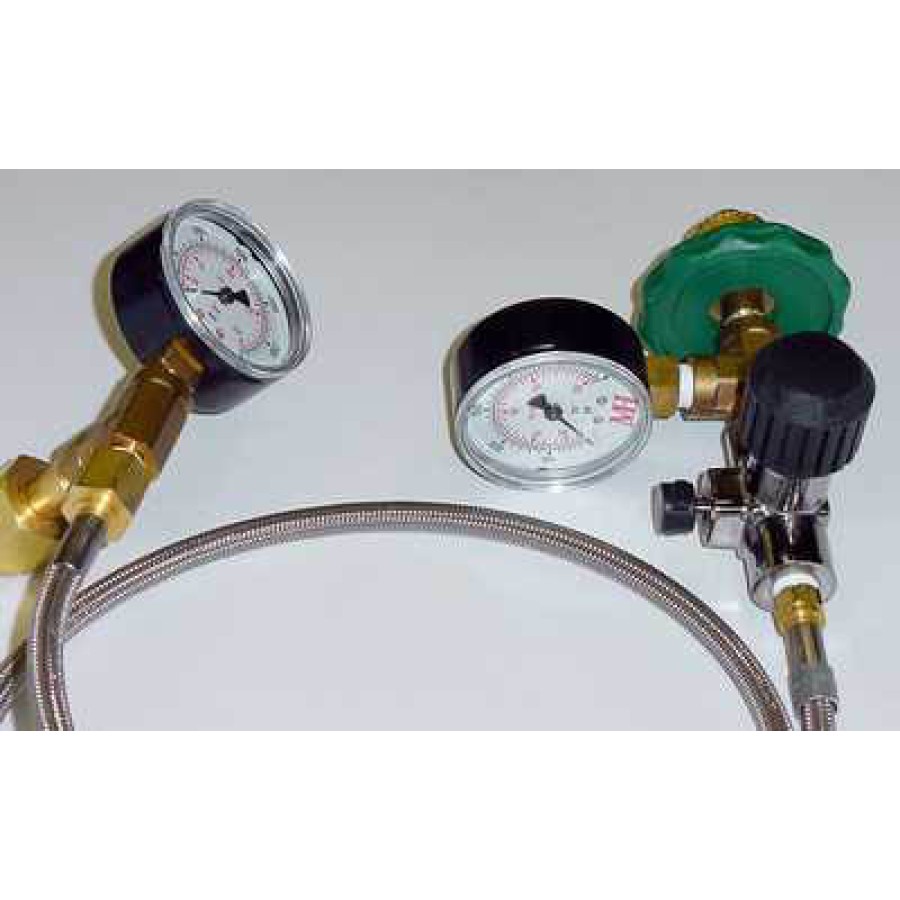

Similar to photo above

Inserts and Related Documents:
Mountain High Transfillers Document

Write a review

Note: HTML is not translated!
    Bad           Good

MH-00GSE-1108-xx

  • Brand: Mountain High
  • Product Code: TR-105c-CGA-540
  • Availability: In Stock
  • $589.00


Available Options
