RAM® Finger-Grip™ Universal GPS and Radio Holder Patented

RAM Mount Adjustable Rugged Universal Finger Grip Holder Cradle for Cell Phone and Smartphone Mobile Devices

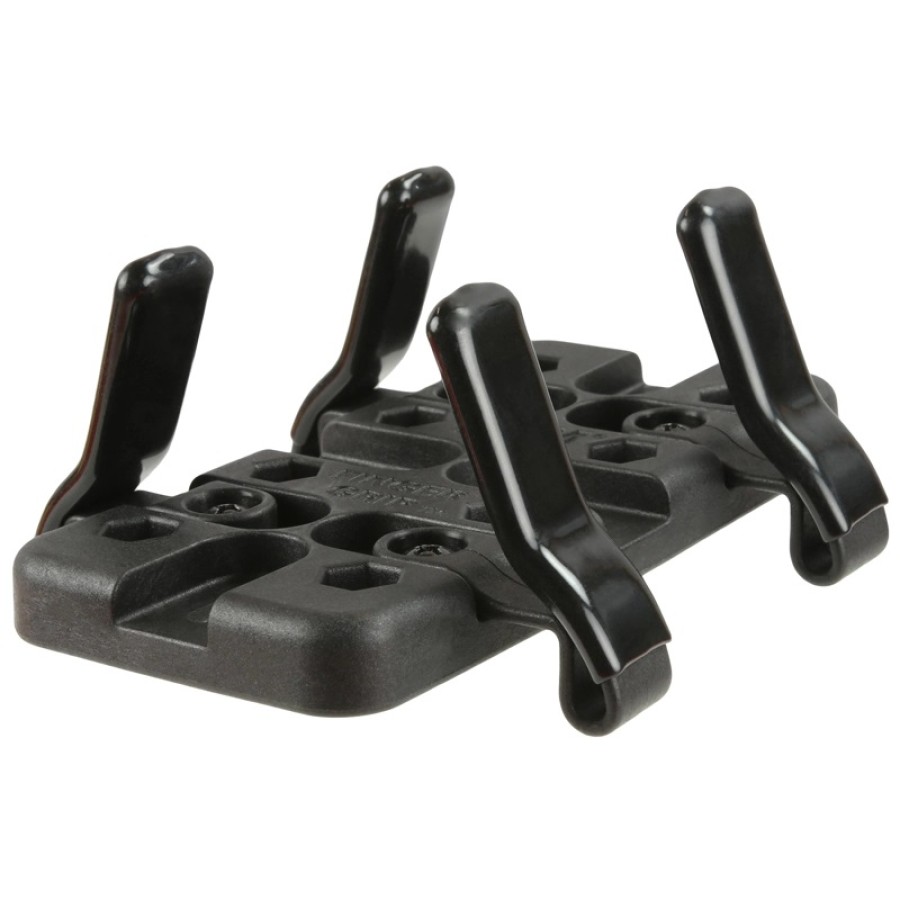

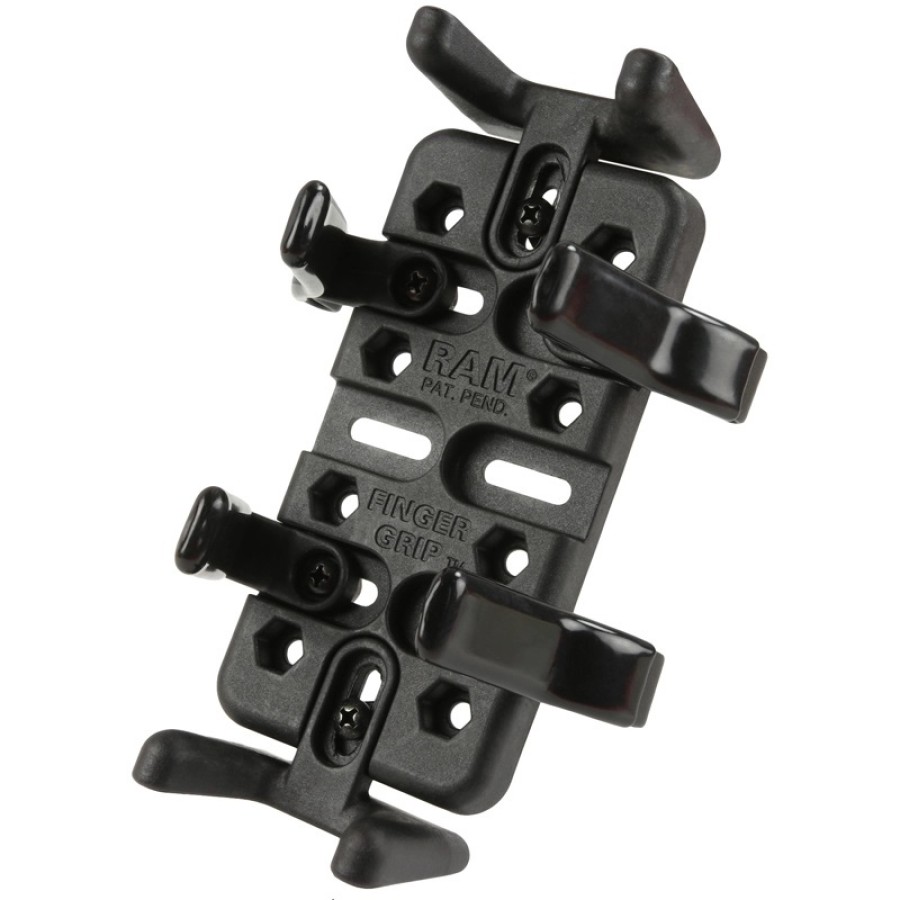

The RAM Composite Universal Finger Grip™ Holder is designed to hold a large amount of cell phones and electronic devices. The holder comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the holder includes a back plate that adds support to the device being held by the mount. The perfect solution that is the best phone mount, car mount, motorcycle mount and can be used with several other phone accessories including Samsung accessories and LG accessories. The spine plate contains the universal AMPs and 1.5" x 2" hole patterns.


FEATURES

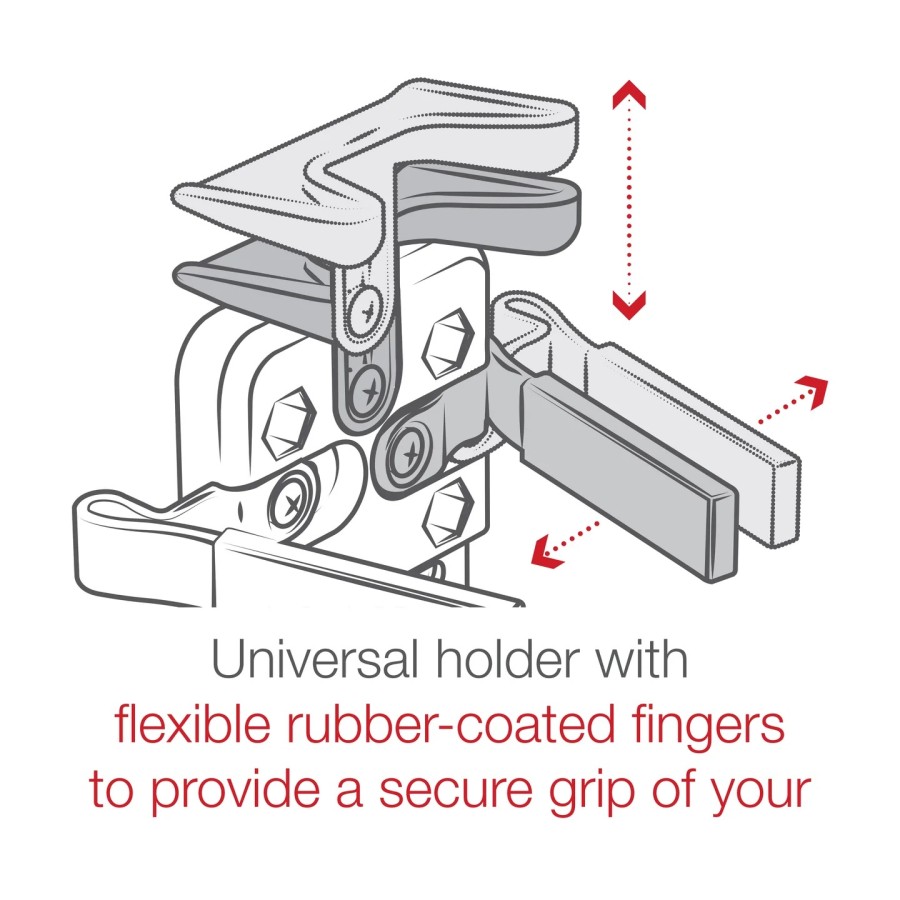

  • Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

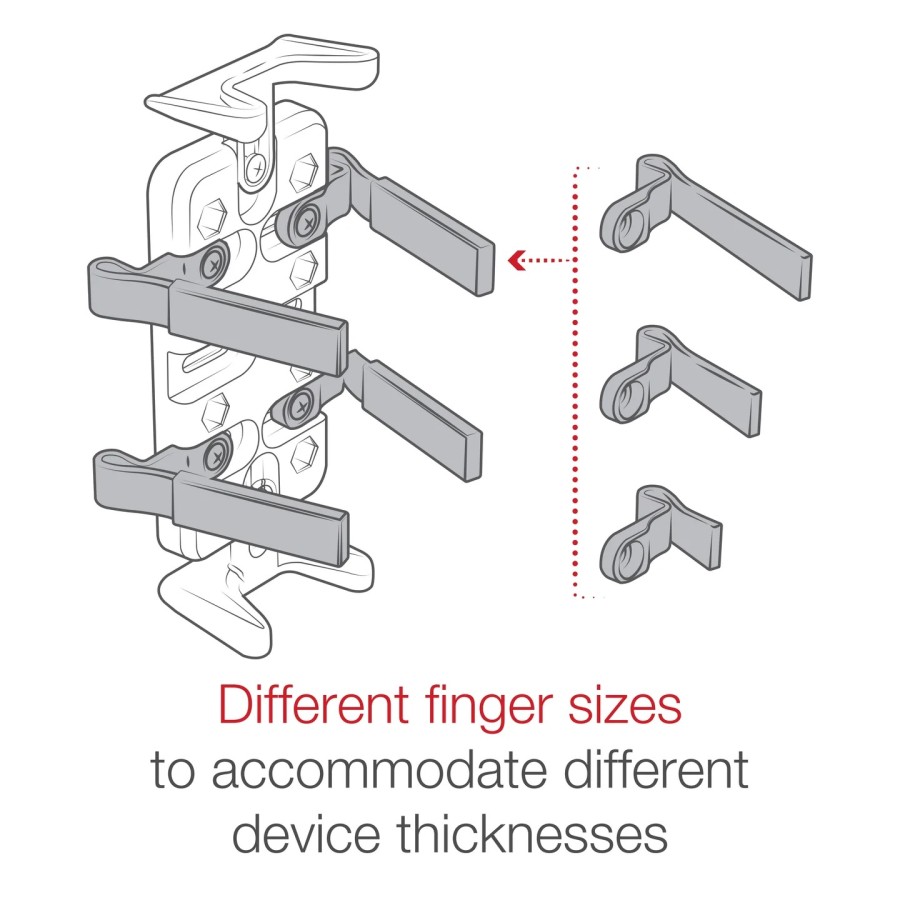

  • Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supportsMade of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Compatible with RAM® Mounts B and C size diamond ball bases for attaching to double socket arms and mounting bases
  • Backed by a lifetime warranty


SPECS

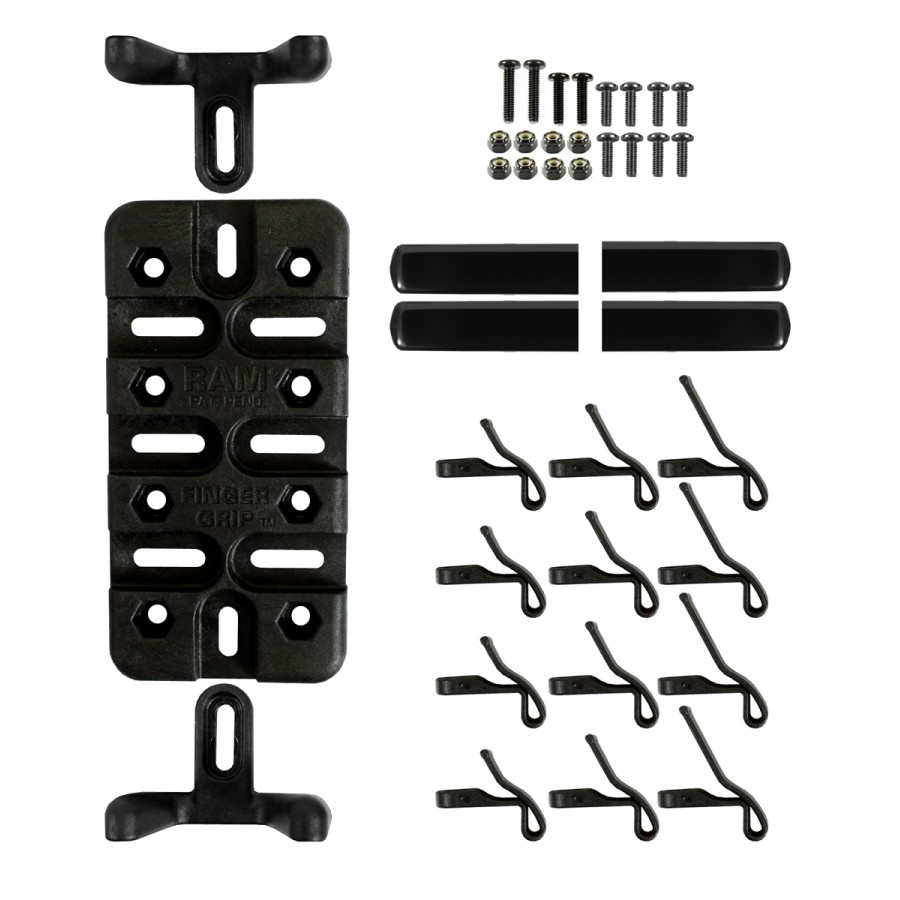

Hardware Included:

Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

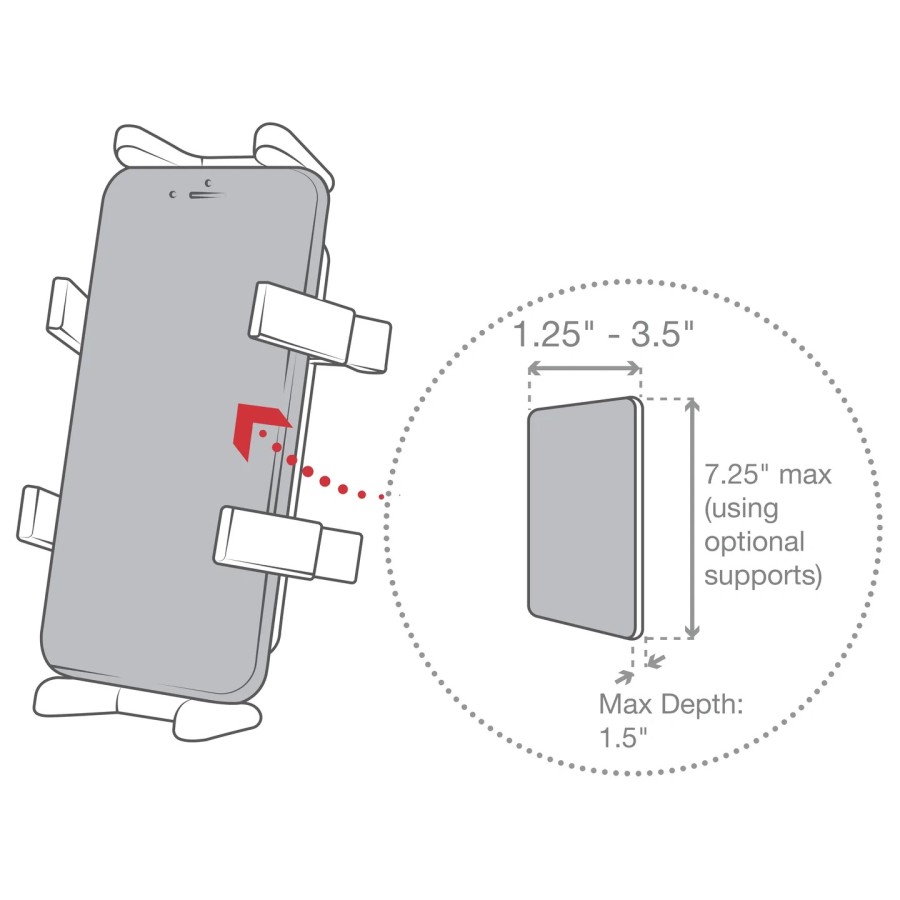

Holder Dimensions:
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"

Hole Pattern:
(3) 4-Hole AMPS: 1.181" x 1.496"

Materials:
High strength composite

Weight:
0.47 lb

This mount is designed to hold the following devices:

  • Cell Phones (check measurements below for dimensions)

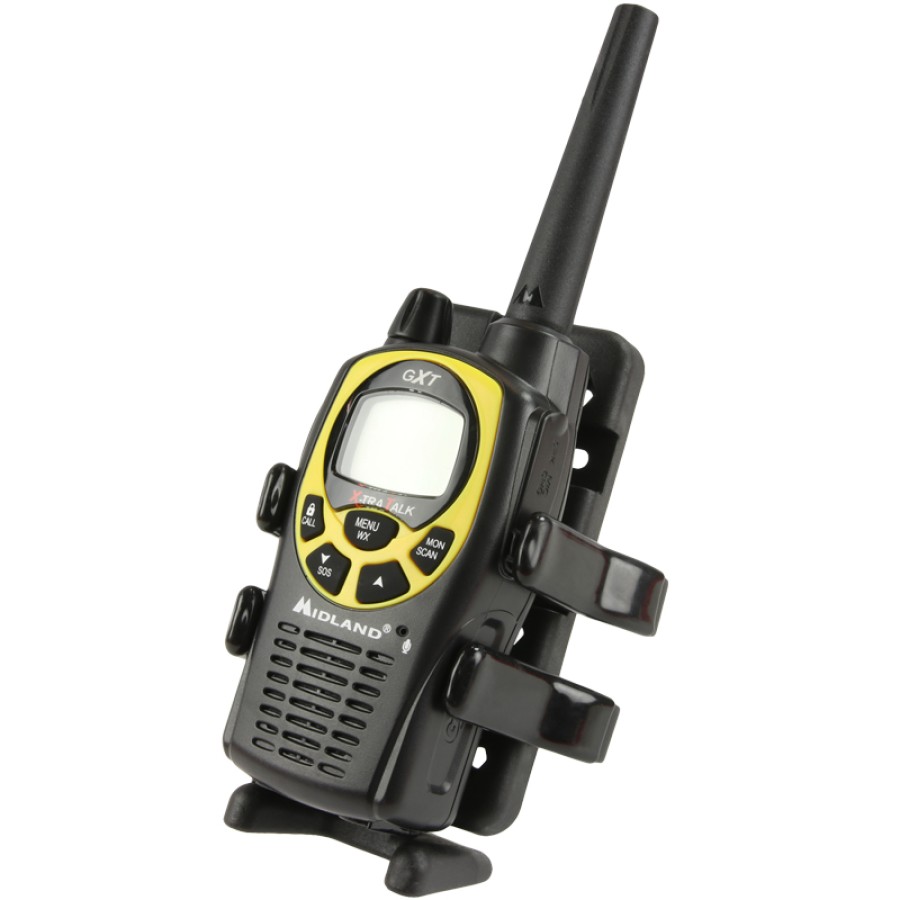

  • 2-Way Radios GPS Devices
  • OtterBox (Defender, Commuter, Impact) Cases
  • Phones with Bumper, Twisted Metal Case and More
  • Blackberry
  • HTC Evo
  • Droid X

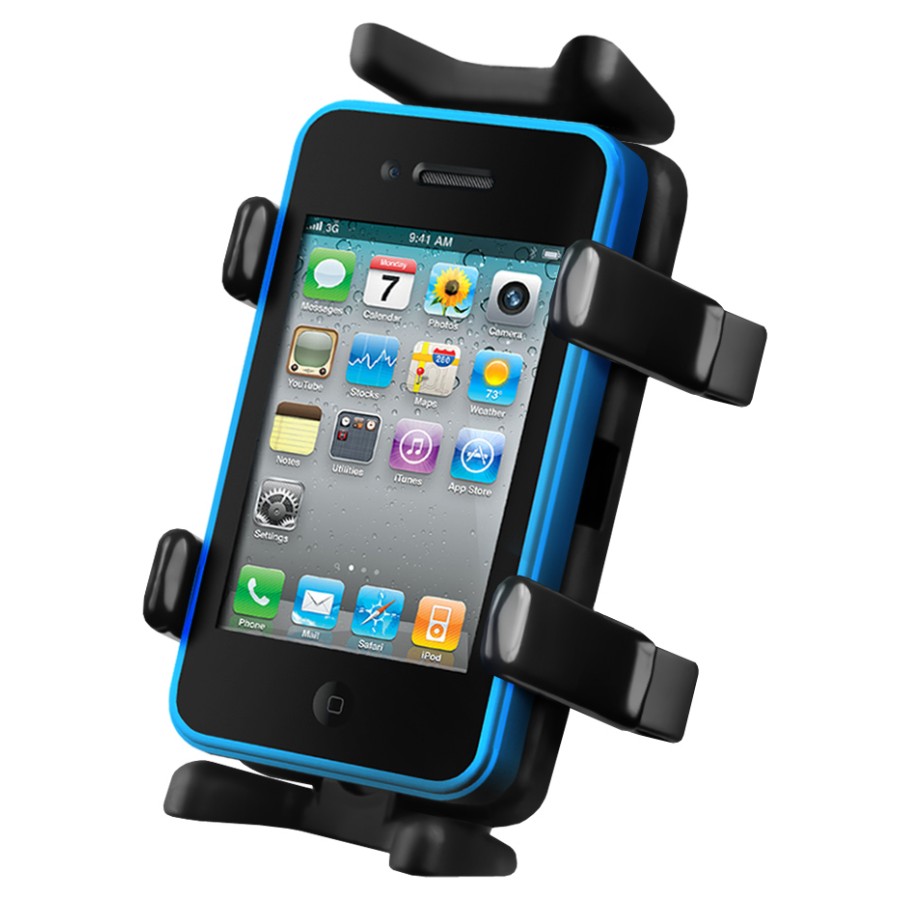

  • iPhone
  • Use on your Motorcycle, ATV, UTV, Car, Boat and More

Height Dimensions:
Minimum with Top and Bottom Plates: 5.25" (133 mm)
Maximum with Top and Bottom Plates: 6.0" (152 mm)
The top and bottom plates can be removed for larger devices.

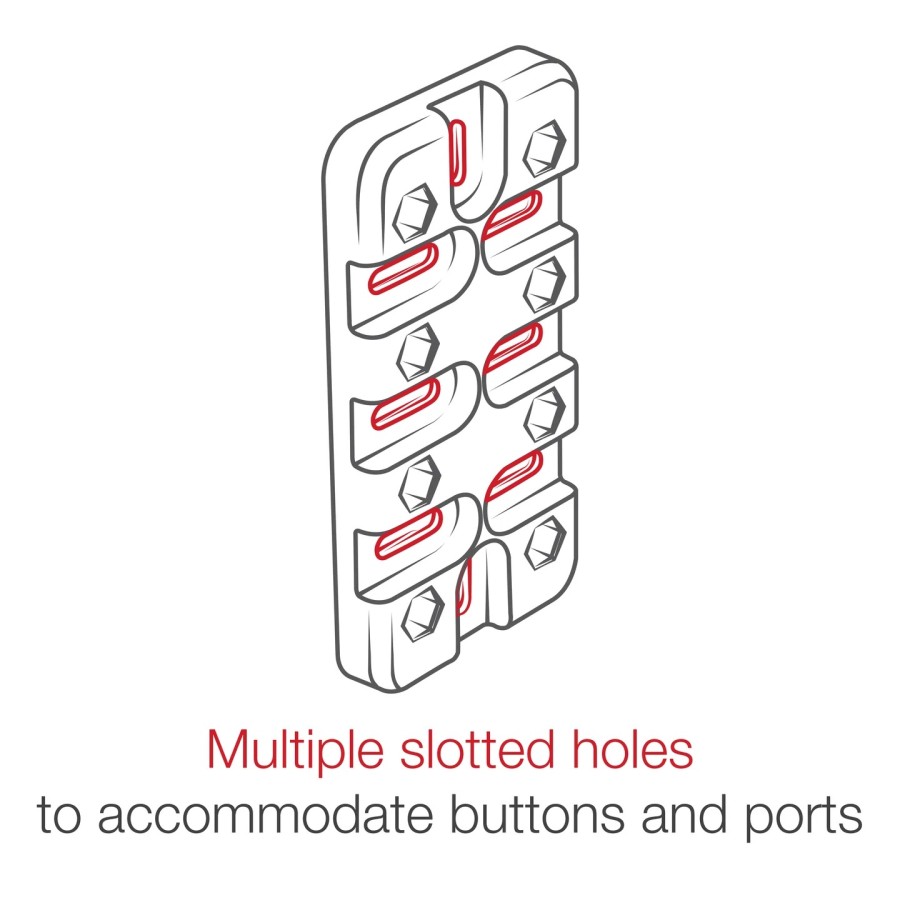

Spine Plate Dimensions:
Width: 2.48" (63 mm)
Height 4.96" (126 mm)

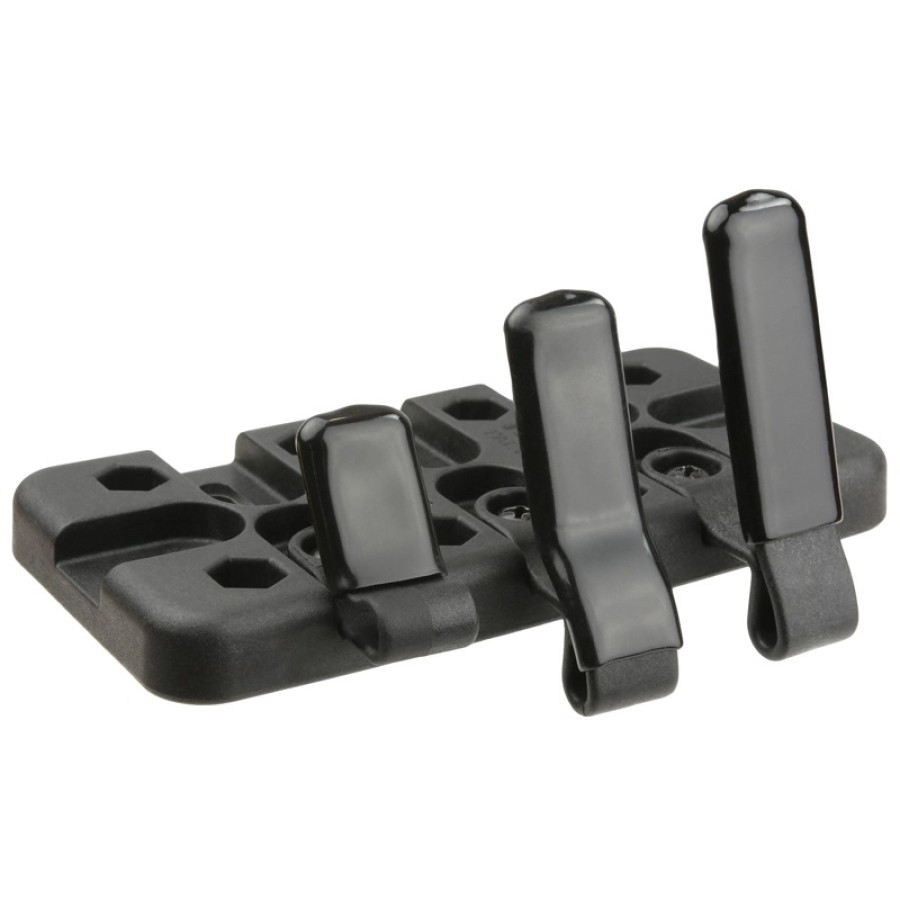

Using Short Arm Side Clamps:
Maximum Depth: 0.75" (19 mm)
Minimum Width: 1.25" (32 mm)
Maximum Width: 3.0" (76 mm)

Using Medium Arm Side Clamps:
Maximum Depth: 1.25" (32 mm)
Minimum Width: 1.5" (38 mm)
Maximum Width: 3.5" (89 mm)

Using Long Arm Side Clamps:
Maximum Depth: 1.6" (41 mm)
Minimum Width: 2.25" (57 mm)
Maximum Width: 3.5" (89 mm)

Material: High Strength Composite (plastic)

RAM holders do not include the RAM-B-238U (Diamond Base & Ball) or RAP-B-238U (Diamond Composite Base & Ball), required to attach to the holder and RAM mounting system.

COMPATIBILITY:

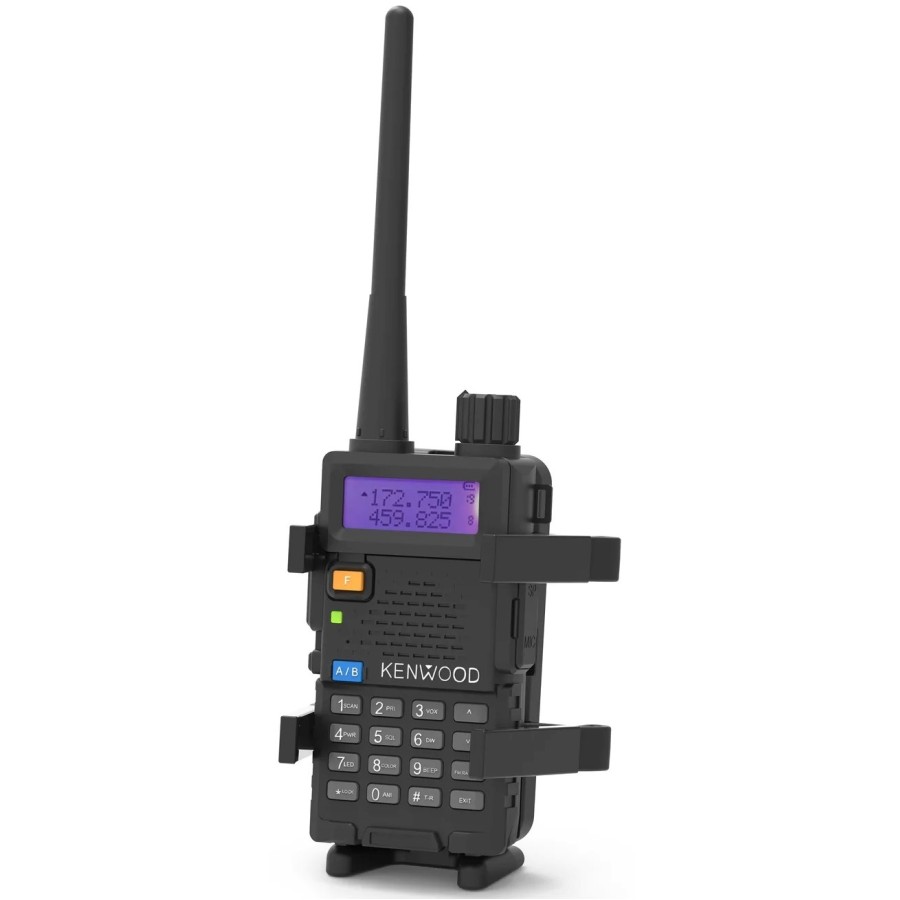

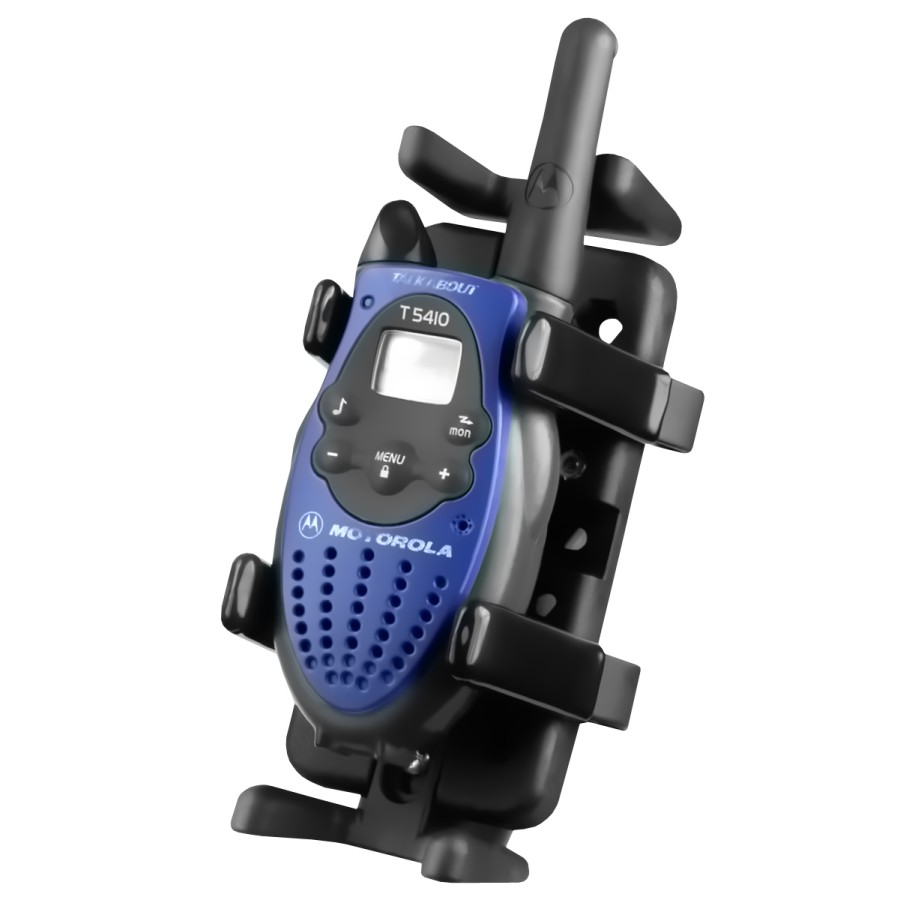

2-Way
Radios
Amcrest
ATR-22
Brother
RuggedJet Go 2035B
RuggedJet Go 2055WB
BaoFeng
BF-888S
BF-F8+
BF-F8HP
DMR-6X2
MURS-V1
UV-5R
UV-82C
UV-82HP
UV-82L
UV-82X
Baofeng
Black UV-5R V2
GMRS-V1
UV5RA
UV-5X3
Yellow BF-F9 V2
Garmin
Alpha 100
Astro 900 System
Delta Sport XC
Delta Upland XC
Delta XC
eTrex Touch 25
eTrex Touch 35
eTrex Touch 35t
GPSMAP 66 Series
inReach Explorer+
inReach SE+
Montana 700
Montana 700i
Montana 750
Montana 750i
PRO Control
Sport PRO
Honeywell
CT40
Midland
75-822
EX37VP
HH50B
LXT118
LXT118VP
LXT500VP3
LXT535VP3
LXT560VP3
LXT600VP3
LXT630VP3
LXT633VP3
X-Talker T10
X-Talker T20
X-Talker T31VP
X-Talker T35VP
X-Talker T51VP3
X-Talker T55VP3
X-Talker T61VP3
X-Talker T65VP3
X-Talker T71VP3
X-Talker T75VP3
X-Talker T77VP5
Spot
X
TYT
DM-UVF10
MD-2017
MD-280
MD-380
MD-380G
MD-390
MD-446
Q1
TC-2000A
TC-3000A
TC-3000B
TC-5000
TC-7000
TC-8000
TH-446
TH-6200
TH-F5
TH-F7
TH-UV6R
TH-UV818
TH-UV8R
TH-UVF1
TH-UVF8D
TH-UVF9
TH-UVF9D
TK-918
TK-928
TK-938
TYT-777
TYT-800
W700
X1
X2

Venterior
VT-FF001/E
VT-FF002
VT-FF003
VT-FF04

Wouxun
KG-659E
KG-699E
KG-703E
KG-819
KG-828
KG-829
KG-928
KG-939
KG-958
KG-959
KG-968
KG-988
KG-D2000
KG-D900
KG-D901
KG-UV66
KG-UV8D
KG-UV9D
KG-UV9K
KG-UVA1
KG-V55
KG-WT18

Yaesu
FT-25R
FT-270R
FT2DR
FT-4VR
FT-4XR
FT-60R
FT-65R
FT-70DR
FT-70DR
VX-6R

Zebra
TC21
TC26
EC30

Write a review

Note: HTML is not translated!
    Bad           Good

RAM-HOL-UN4U

  • Brand: RAM
  • Product Code: RAM-HOL-UN4U
  • Availability: In Stock
  • $23.95
