Cable for connecting Nano4 to PowerFLARM
This cable makes it easy to connect a Nano4 to a PowerFLARM Core or PowerFLARM Portable. The Nano4 can receive and display FLARM, ADS-B and transponder traffic from the PowerFLARM. The cable has a built-in power converter which takes 12V power from the FLARM's 8-pin RJ45 port and provides 5V power to the Nano4. A serial voltage level converter is also built-in for converting the RS-232 level serial data from the FLARM to TTL level serial data for the Nano4. The micro-USB connector plugs directly into the Nano4.

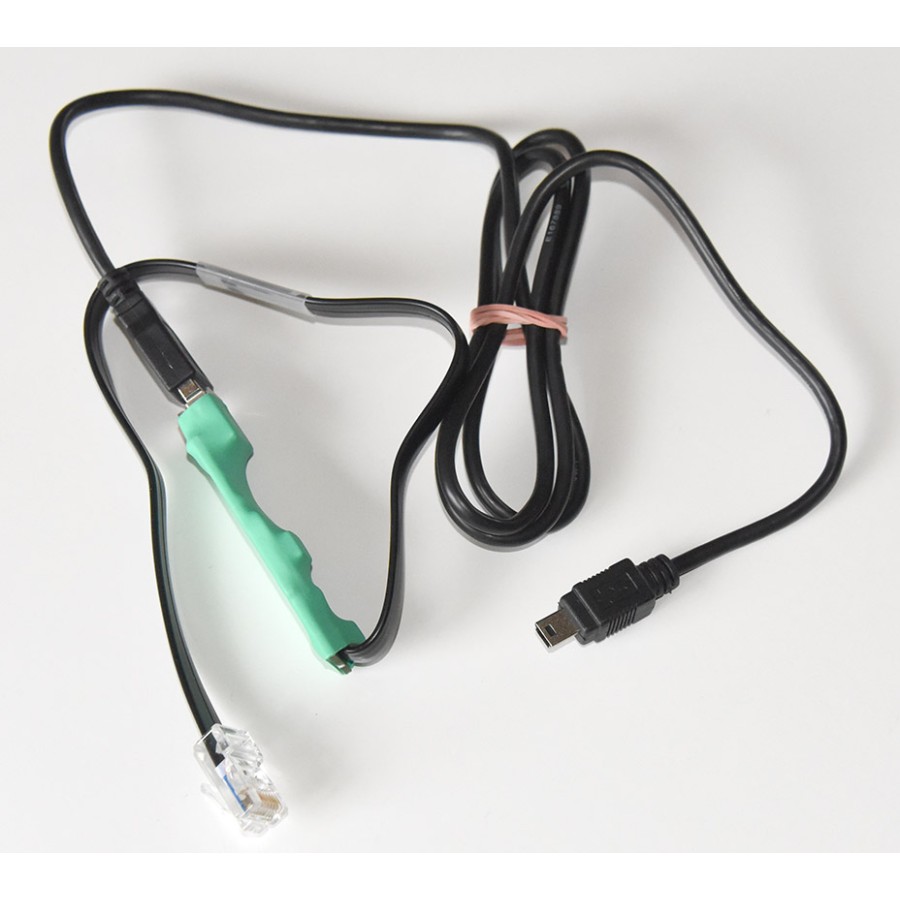

Note: A standard USB to micro-USB cable is required and included with this cable. One is also provided in the box with the Nano4. It is shown connected to the cable in the images at right.

Overall Length: 53 inches (135 cm)
