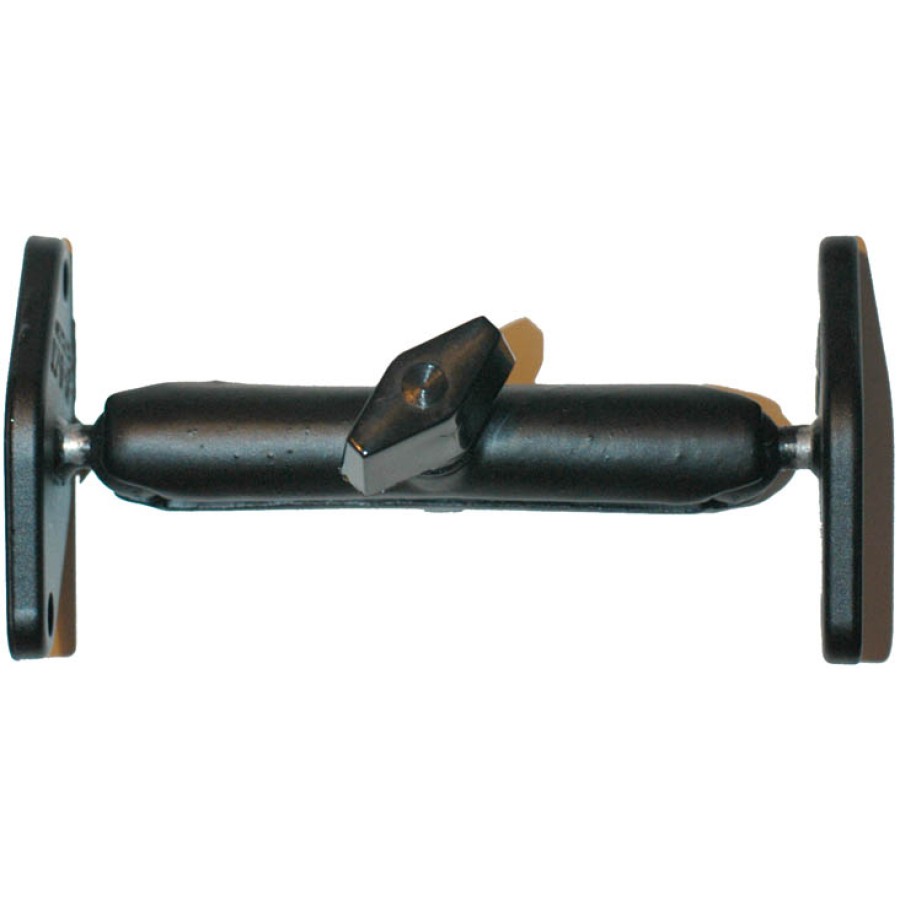

Articulated Arm, Long, "A" Size
Articulated Aluminum Arm, Length: 4 5/8" (12 cm) from base plate to base plate, The arm is 3.25 inches (83 mm) from ball center to ball center, 2 Aluminum base plates with small 9/16" (14mm) balls, weight: 3.1 oz (88 g), Diamond shaped mounting plates are 1.25" (31.8 mm) x 2.5" (63.5 mm).  Mounting hardware not included.  This "A" sized mount is significantly smaller than the large "B" sized mounts below.  The base plates have the same footprint, but the arms are very different.  I recommend this "A" sized mount for most applications.  The "B" sized mounts are nice when a longer reach is desired.  The "B" sized components are more stiff than the "A" sized parts.  Some people prefer the "B" sized parts for that reason.  Most people find that the "A" sized components work fine for holding a Pocket PC in an aircraft or automobile, however, I have received some returns due to the balls coming off.  I therefore recommend the larger "B" sized arms for most soaring applications.

Write a review

Note: HTML is not translated!
    Bad           Good

RAM-A-101-L

  • Brand: RAM
  • Product Code: RAM-A-101-L
  • Availability: In Stock
  • $50.00


Related Products

RAM-A-238U

RAM-A-238U

Base with 9/16" BallMarine grade Aluminum, 9/16" diameter rubber ball, Diamond shaped mounting ..

$11.00

RAM-A-201U-B

RAM-A-201U-B

Arm, Long, for use with 9/16" (14 mm) "A" size BallsAluminum arm, 3.25 inches (83 mm) from ball cent..

$27.00

Tags: Articulated Arm, A size, Long Arm, Aluminum Arm, Diamond Base
