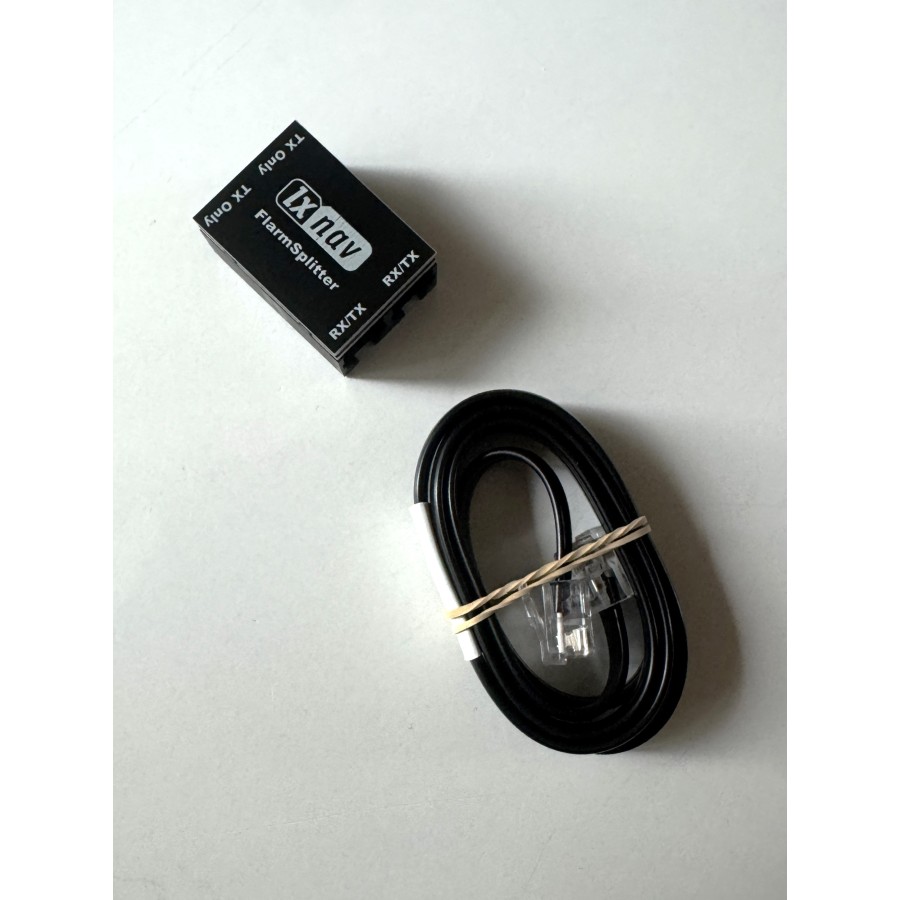

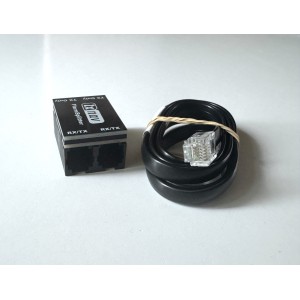

LXNAV Splitter with 4 RJ12 6-pin Ports and cable with RJ12 6-pin connector
For connecting up to 3 devices to a FLARM with 6-pin RJ12 port - such as a "Classic" FLARM or LXNAV LX80x0 or LX90x0 with a 6-pin RJ12 FLARM Display port.

NOTE: Most current FLARM units have RJ45 8-pin ports, and most FLARM displays are supplied with a cable with RJ45 8-pin connector for connection to the FLARM.  This splitter is not for use with those.

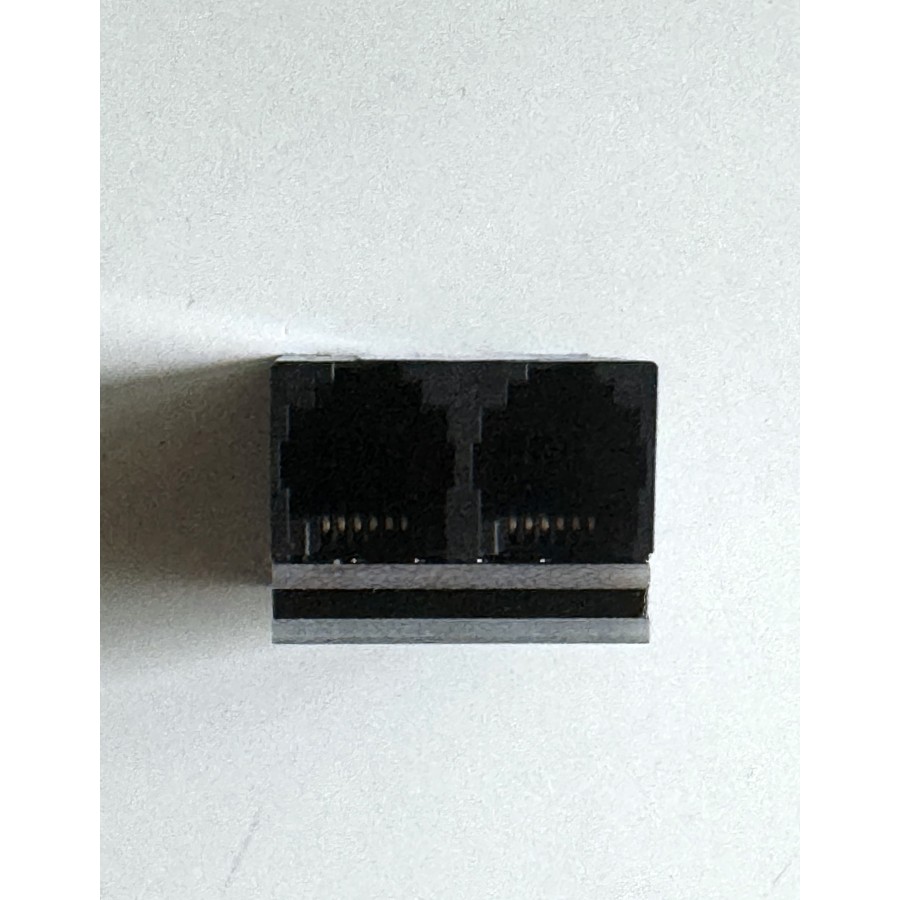

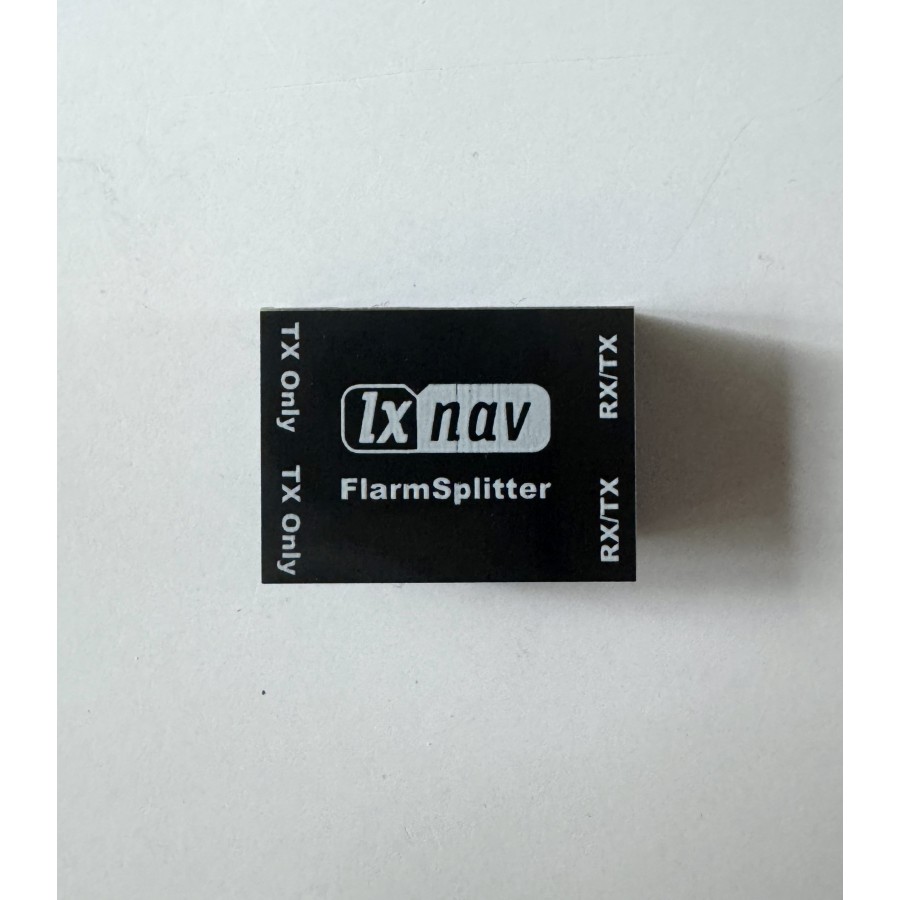

Two ports pass both transmit (TX) and receive (RX) lines. The other 2 ports pass transmit (TX) only. One of the RX/TX ports should be connected to the cable that goes to the FLARM device. The other RX/TX cable goes to a FLARM remote display and can be used to edit parameters (ranges, etc.) in the FLARM unit. The "TX Only" ports send data to additional FLARM displays, but don't allow those devices to send data to the FLARM unit. That avoids the possibility of having two devices try to send data to the FLARM at the same time.

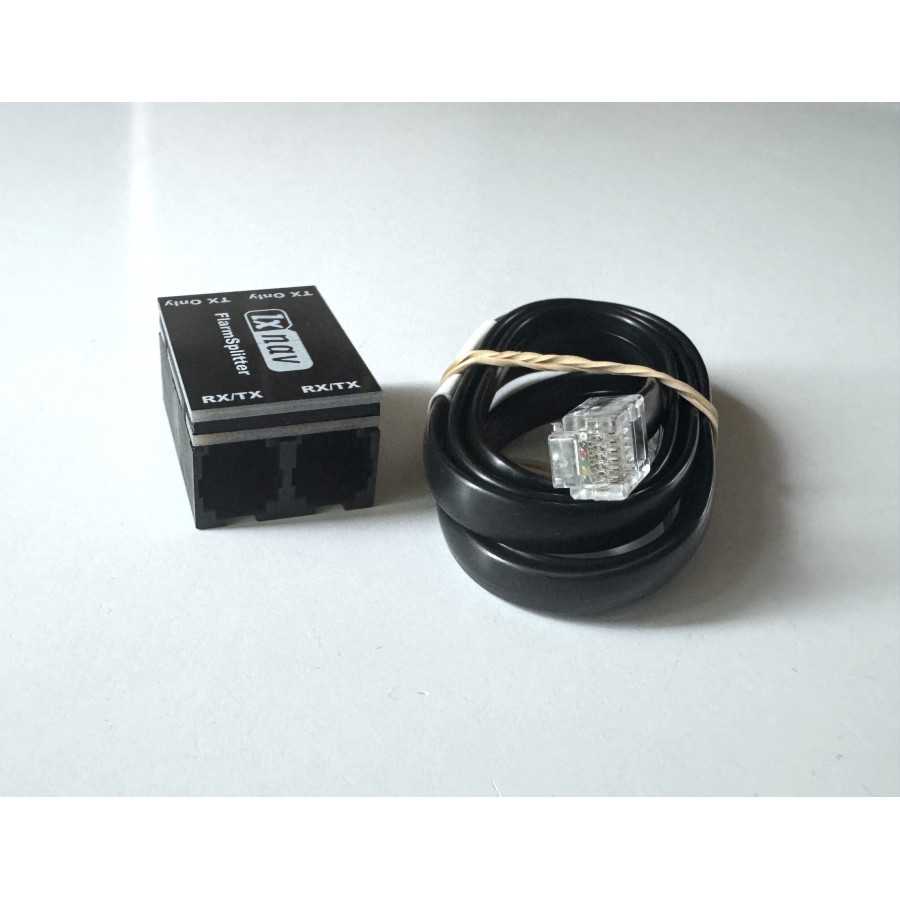

The included cable has an RJ12 8-pin connector for connection to the splitter and RJ12 6-pin connector for connection to the "Classic" FLARM device or LXNAV LX80x0 or LX90x0 with a 6-pin RJ12 FLARM Display port.

This cable also works great for connecting a ClearNav Varo's serial port to 2 or 3 devices.

All 4 ports follow the IGC standard - as used by the following products:

• Classic FLARM
• LXNAV LX80x0 or LX90x0 RJ12 6-pin "FLARM Display" port

Specifications

• Ports: 4 x RJ12 6-pin ports (IGC standard)
• Size: 34 x 25 x 18 mm (1.34 x 0.98 x 0.71 inches)
• Weight (without cable): 0.4 ounces (11 grams)
• Weight: (with cable): 1.0 ounces (28 grams)
• Cable Length: 2 feet (60 cm)
