• TQD-F-Connector

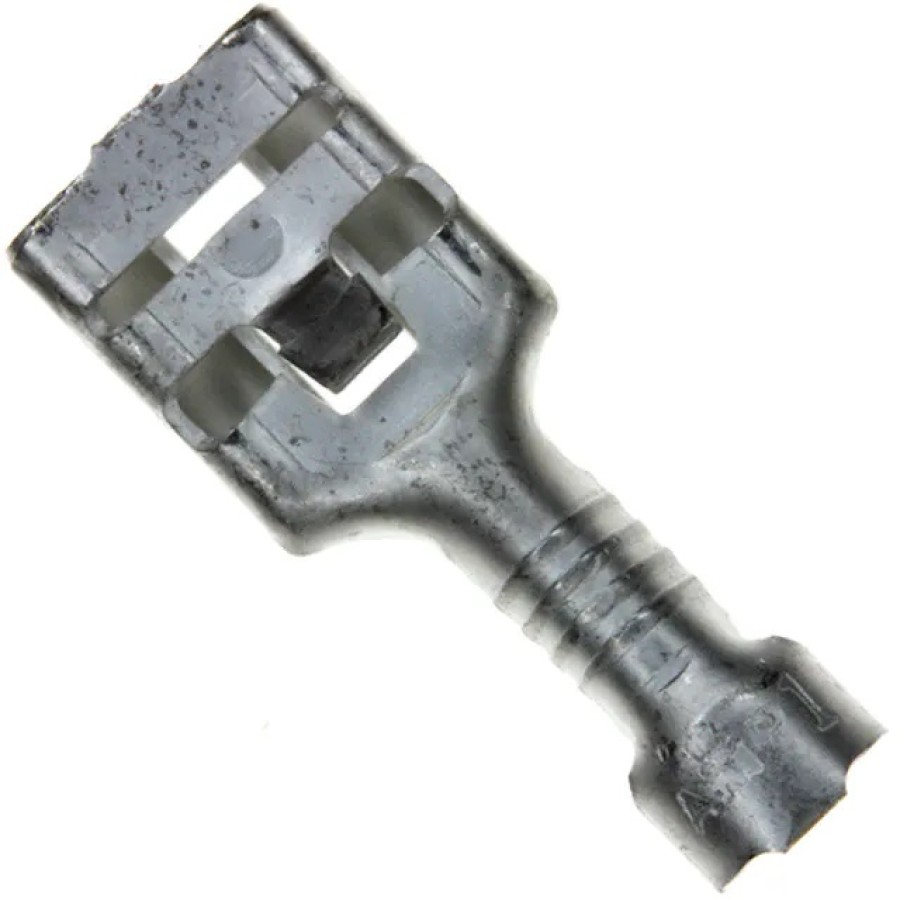

TQD (T-Shaped Quick-Disconnect) Connector Connector - Female
To be used with TQD-F-Housing (not included)
Dimensions
Length: 19 mm (0.75 inches)
Width: 7.4 mm (0.29 inches)

These are the same connectors found in many gliders as they are delivered from the factory.  They are used as battery connectors.  They have a positive "click" when connected and are easy to disconnect by hand without the need for any special tools.  I sell the components - unassembled and without wire.

Wiring Standard?
Below is a description of how at least one Germany glider factory uses this connector.  You may want to follow the standard.

  • The connector in the top (cross part) of the "T" was used for the common (black wire).
  • The connector in the base (vertical part) of the "T" was used for +12V power (red wire).

Assembly Instructions

  • Crimp and solder metal tabs onto the wire.  The metal tabs on the end of the connector are to be crimped onto the wire insulation. See assembly diagram below.
  • Insert the connector into the back of the housing until it clicks into place.


Write a review

Note: HTML is not translated!
    Bad           Good

TQD-F-Connector

  • Brand: AMP
  • Product Code: TQD-F-Connector
  • Availability: In Stock
  • $0.40
