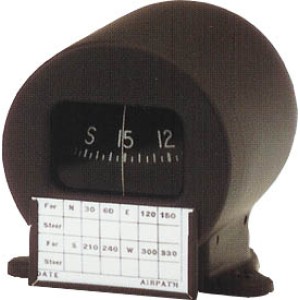

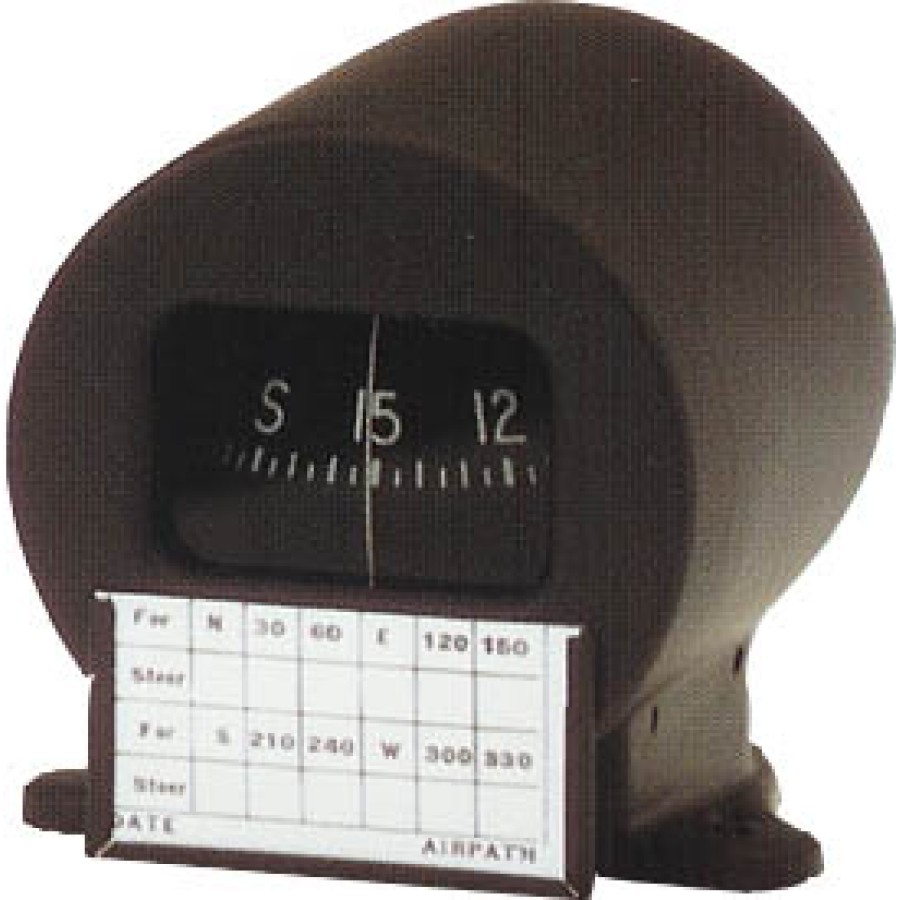

Airpath Compass, Pedestal Mount
For mounting on the top of the instrument panel.
All compasses in the C-2400 series meet FAA TSO-C7c requirements. Each has been specifically designed for installation either for streamline-type bracket housing or a pedestal-type housing. Each model is provided with mounting hardware, deviation card, deviation card window and either an attached cardholder, deviation plate, or standard unattached cardholder depending on the application.  Mounting screws included.

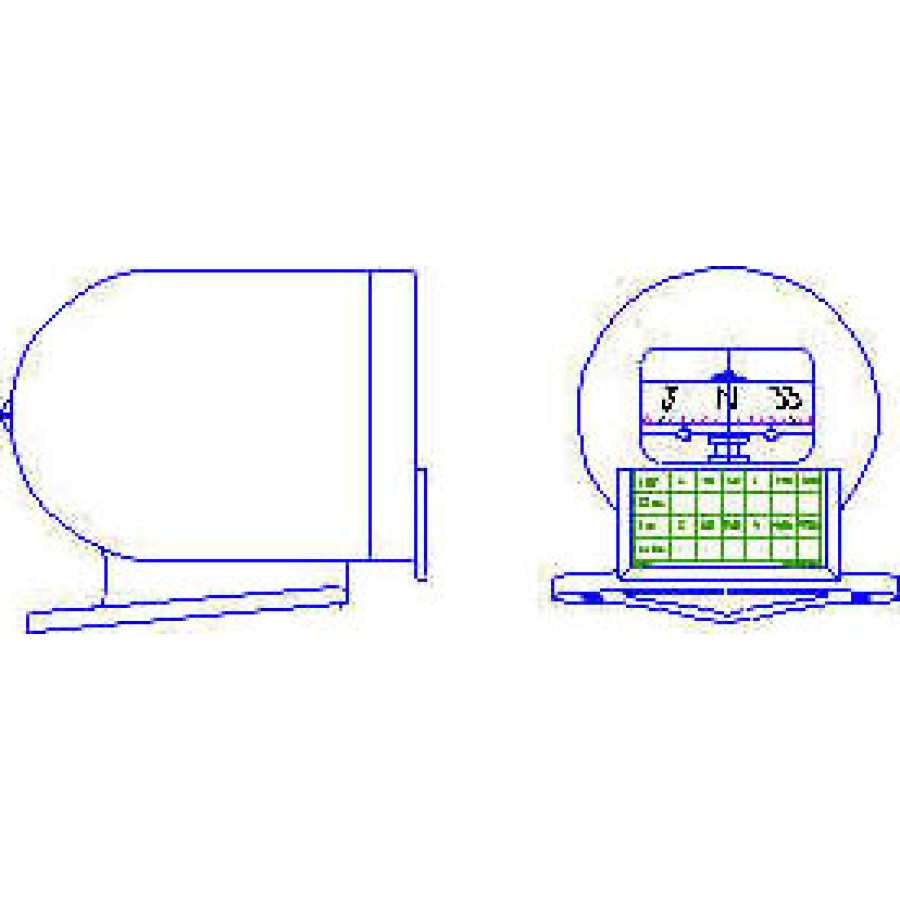

Dimensions
Diameter of main body: 2.40 inches (61 mm)
Length from front face to back of unit: 3.38 inches (86 mm)
Height at highest point (near back): 2.76 inches (70 mm)
Height at front (it slopes forward slightly - perfect for panels which slope down toward the front): 3.50 inches (66.5 mm)
Width of mounting base: 2.81 inches (71.5 mm)
Length of Mounting Base: 2.81 inches (71.5 mm)

 - Note: This unit is compensated for use anywhere in the northern hemisphere.  Versions for the southern hemisphere are available upon request.  The price is $30 extra to cover shipment of the custom product to my office. I don't stock versions for the southern hemisphere. The lead-time is 4 to 6 weeks for southern hemisphere versions.

Write a review

Note: HTML is not translated!
    Bad           Good

Airpath Compass, Pedestal Mount

  • Brand: Air Avionics
  • Product Code: AP-C-2400-P
  • Availability: In Stock
  • $395.00
