MZ Supplies

Overview
MZ Supplies is a business owned by Ulrich Werneburg in Ontario, Canada.


How to Order
To order a product, click on the
button next to the product.
When you are ready to complete your order, click on the
button.
Click on the small images to view larger versions.

Part # Description Photo
(Click on images below to view large versions)

Price

Lead-time

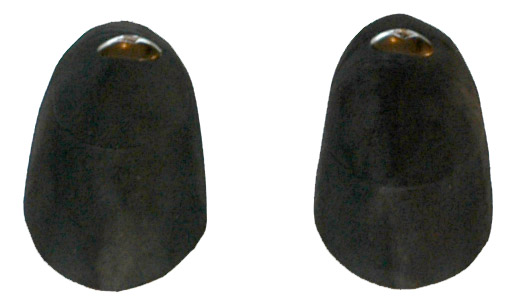

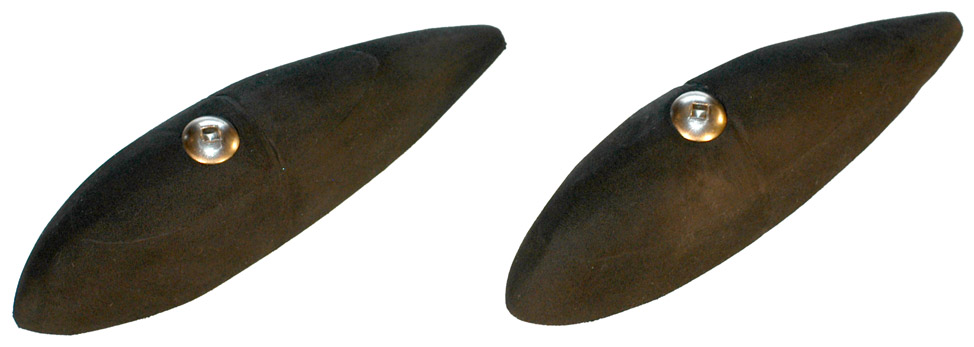

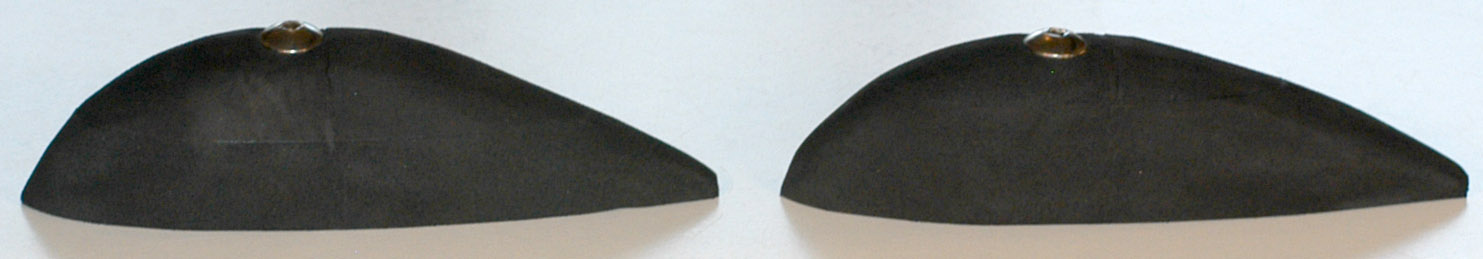

Wingtip-Skids-Foam Wingtip Skids - Foam (set of 2)
Set of 2 foam wingtip skids.  They are made from a light weight black foam material.  Replaceable metal inserts are used to keep the foam from wearing away rapidly on hard surfaced runways.  Teardrop shape to minimize drag.

Notes From The Manufacturer (Ulli Werneburg)

"They are made of high density rubber/foam material which is also used on shoe soles such as the old Hush Puppies. It has turned out that this material lasts very well, particularly since the metal 'shoe' takes most of the scraping. I have had mine on my ASW-24 for about 4 years and they still look really good.

Ideally, for installation the top (straight) surface should be sanded a bit to make a slight concave surface to match the wing contour. It is easy to do with a drum sanding tool or file, and you can then customize it to fit your airfoil.

I recommend the use of high quality gasket silicone material (readily available at all automotive supply stores) for attaching them to the wing. This provides excellent adhesion."

Specifications
Length: 5.75 inches (146 mm)
Width: 1.54 inches (39 mm)
Height 1.38 inches (35 mm)
Weight (each): 1 oz (28 g)

$45 In Stock

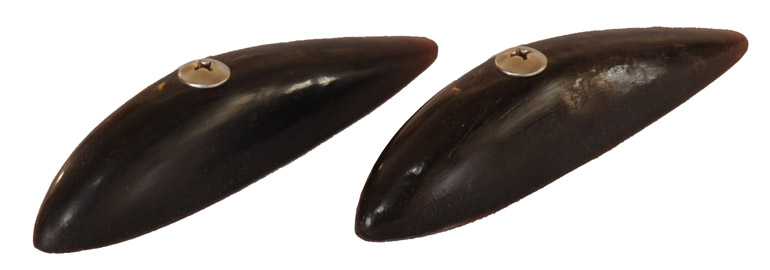

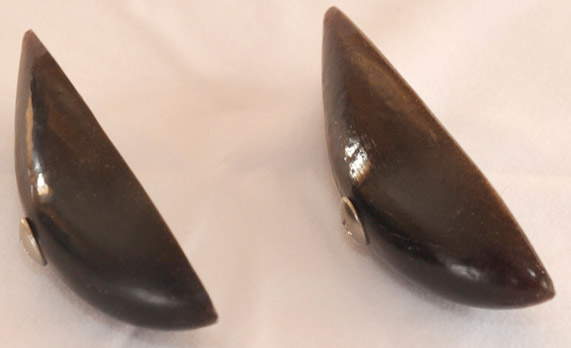

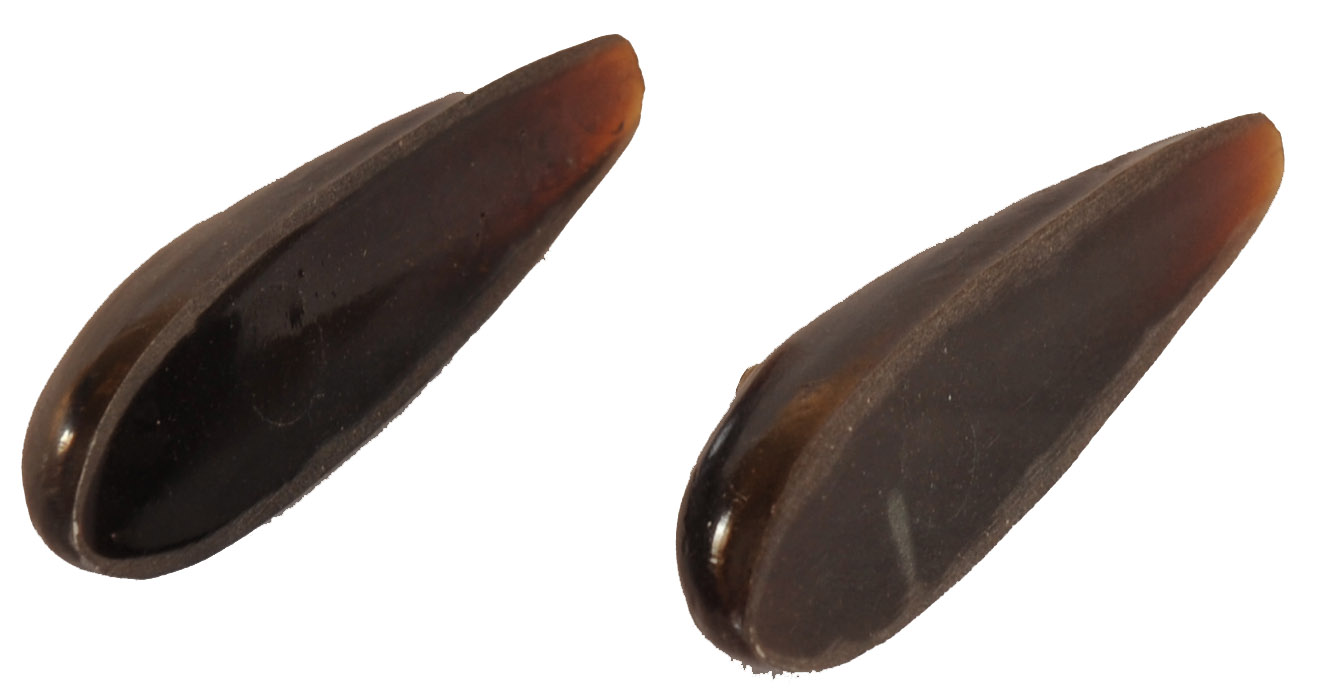

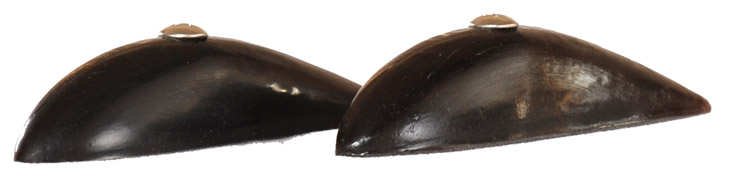

Wingtip-Skids-Polymer Wingtip Skids - Polymer (set of 2)
Set of 2 polymer wingtip skids.  They are made from a rubbery polymer material.  Replaceable metal inserts are used to keep the skid from wearing away rapidly on hard surfaced runways.  Teardrop shape to minimize drag.

Installation Instructions

  • Remove old wing tip skid and get rid of all old cement residue with appropriate cleaner such as contact cement cleaner
  • Test fit new wing tip skid onto wing.  Sand area where skid is to be mounted slightly.
  • Wipe contact surface of wing with acetone or similar light solvent and apply a thin, even layer of high quality automotive gasket silicone compound (blue or black) to the wing skid.  Carefully apply the skid to the desired location.  Fasten skid temporarily with tape.
  • Remove excess silicone material as it is squeezed out when pressure is applied to the skid.
  • Let sit for at least 3 hours, then carefully remove tape.  Best adhesion takes at least 12 hours at normal temperatures.

Specifications
Length: 5.9 inches (150 mm)
Width: 1.38 inches (35 mm)
Height 1.34 inches (34 mm)
Weight (each): 3.3 oz (94 g)

$60 In Stock

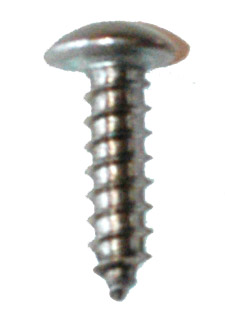

Wingtip-Skid-Insert Metal Wingtip Skid Insert
Metal wingtip insert.  Sold 1 at a time, not in pairs.  Screw into the Wingtip-Skids shown above.  Designed to keep the foam of the skid from wearing away rapidly on hard surfaced runways.  Included with the Wingtip Skids.  Order extras here.

The hole in the tip of the insert is square shaped.  If you don't have the correct tool, a right-sized screwdriver will do the job.

$3
each
In Stock
